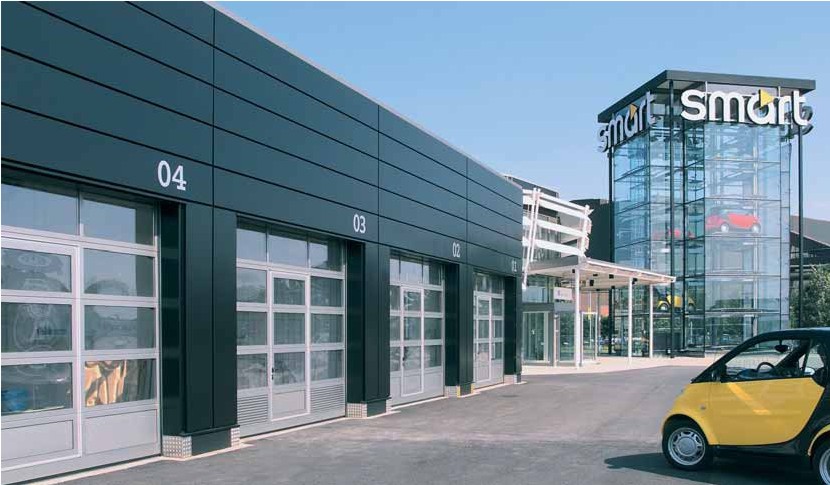

TAR 40
Comforting aesthetics and the power of thermal insulation
High transparency, acoustic stability, good thermal insulation and modern design all speak favourably of this top aluminium door.
A safe long term investment
Aluminium is guarenteed to be the most effective material for a weather-resistant, attractive surface that will retain these qualities for decades. The door sections are anodized in a natrual colour (E6/EV1) to DIN 17611. Special colours to RAL on request.
The bottom section consist of 26mm thick PU sandwich infills (100% CFC-free), clad on both sides with sutcco-embossed aluminium sheets. The top door sections are glazed with 16mm synthetic double panes. These thermal components produce an effective thermal insulation value.
The strong thermal extrusion
Glass fibre reinforced polyamide ribs ensure an effective thermal break between the outer and inner shels thereby eliminating cold bridges. The positive material composite (overall thickness 42mm, profile height 120mm) provides a high level of stability for a long service life. This thermal-break door also protects the building structure.
|
Hormann TAR40 Door Style Configurations |
||
|
|
|
|
|
With 52mm rail extrusion as standard for doors up to 5500mm wide. |
||
|
|
|
|
|
With 91mm rail extrusion as standard for doors 5510mm wide or more. Doors up to 5500mm wide also available with the 91mm rail extrusion on request. |
||
|
|
|
|
|
Available with fully glazed or individual arrangement of glass and panel infills. |
||
|
|
||
Technical Details
Size range
Width up to 7000mm
Height up to 7000mm
Resistance to wind pressure
Class 31
Water-tightness
Class 3 (70 Pa)2
Air permeability
Class 2 (with wicket door class 1)3
Sound insulation
R = 19 dB4
Thermal insulation to EN 13241, annex B EN 12428
U = 3.6W/m²K*
(with wicket door U = 3.8W/²K*)
*The values refer to a door area of approximately 25m²
1 EN 12424 2 EN 12425 3 EN 12426 4 EN 717-1
