Hormann ALR F42 S-Line
The Hormann ALR F42 S-Line is the maximum visibility door. Labelled as a 'showroom window', the ALR F42 S-Line uses 6mm laminated glass which is easy to clean allow full visibility both in and out of the door. This door is also available with double panes in 16mm thick "Sekurit" safety glass.
The Hormann ALR F42 S-Line aluminium door is the perfect door for attracting clients to showroom or visual displays inside premises. Manufactured using 6mm laminated glass - which can be replaced by 16mm thick "Sekurit" safety glass on request - to offer immaculate vision and impenetrable security.

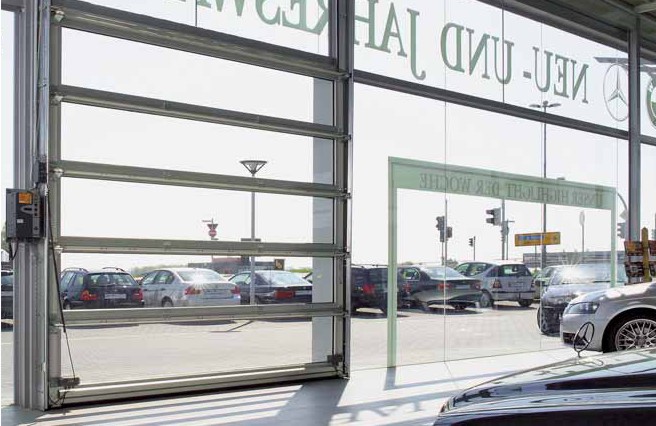

Showing from the outside what's on offer on the inside, paired with the attraction of a light and airy showroom. These are the benefits of the new Hormann "display window" door with its slim-line aluminium profiles and the generously apportioned glazing. For example, in car showrooms, yach and boat yards and at camper van and caravan dealers.
The door sections of anodized aluminium extrusions to DIN 17611 are stained as standard in a natrual colour (E6/EV1) and on request can be obtained in colours of the RAL colour spectrum. For example, in your company's colours to complement your corporate design.
A good display window door should have the same effect as a showroom window. Hormann achieves this impression by emplying large areas of glazing with panes of exactly the same height. For this, we use 6mm laminated glass because a "showroom window" in an exposed locationi must be easy to clean and always look in superb condition. On request, the door is available with double panes in 16mm thick "Sekurit" safety glass.

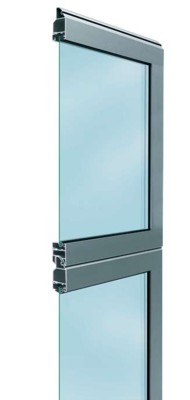

The construction with an overall thickness of 42mm and profile view of 120mm offers solid stability for safe, reliable function. For stability reasons doors over 3330mm wide are devided in the centre by a 91mm wide vertical rail.
Technical Details
Size range
Width up to 5500mm
Height up to 7500mm
Resistance to wind pressure
Class 31
Water-tightness
Class 3 (70 Pa)2
Air permeability
Class 2 (with wicket door class 1)3
Sound insulation
R = 19 dB4
Thermal insulation to EN 13241, annex B EN 12428
U-value in W/(m².K) for a door surface 5000 x 5000mm
Standard double pane = 3.5
With ThermoFrame = 3.4
Optional triple pane = 3.0
With ThermoFrame = 2.9
1 EN 12424 2 EN 12425 3 EN 12426 4 EN 717-1
