Hormann APU F42 Thermo
The Hormann APU F42 Thermo is the effectively insulated and highly stable door that allows large volumes of light through. With windows created from Duratec maximum scratch resistant glass, your windows will stay clean and scratch free wash after wash.
If you seek full use of daylight, good thermal insulation and a high level of stability are called for then the Hormann APU F42 Thermo door can meet these requirements threefold; on account of the cold-repelling 16mm thick double glazing, the aluminium extrusions with thermal breaks and the PU foam-insulated steel bottom section. This is 100% CFC-free. This combination produces a remarkable thermal insulation value.

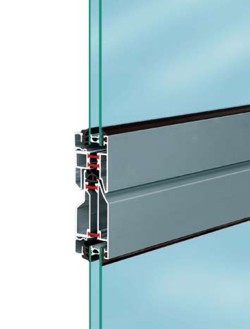

The aluminium extrusion has an overall thickness of 42mm. The outer and inner shells incorporate thermal breaks with glass fibra reinforced polyamide ribs and are at the same time positively bonded. This ensures a high degree of stability and protects the structural fabric.
The 750mm high bottom section in steel: white aluminium (based on RAL 9006). The glazing frames in aluminium: anodized to DIN 17611 stained in a natural colour (E6/EV1). Optionally available in Stucco or Micrograin surface finish without a surcharge.
Without Wicket Door
Door Size: Max. width 7000mm
Door Size: Max. height 7500mm
Thermal insulation EN 13241-1, Appendix B EN 12428
U-value in W/(m².K) for a door surface 5000 x 5000mm
Standard double pane = 2.9
With ThermoFrame = 2.8
Optional climatic double pane, single-pane safety glass = 2.0
With ThermoFrame = 1.9
With Wicket Door
Door Size: Max. width 7000mm
Door Size: Max. height 7500mm
Standard double pane = 3.1
With ThermoFrame = 3.1
