Hormann HR116 Industrial Roller Shutter
 |
The Hormann HR116 is an imposingly tall and strong door suitable for larger structural openings. This flush-fitting door is available in both aluminium and steel offering varied amounts of style, durability and robustness.

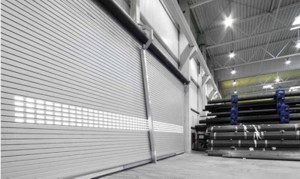

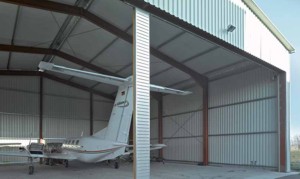

Samson Doors specialise in the supply and installation of uniquely made large roller shutters to various buildings such as aircraft hangars, car ports, factories, storage facilities and large manufacturing buildings.
We offer fascia panels and fixed assemblies when gaps need filling in between the lintel and the opening width, wicket doors, external rolling shutters and angled bottom profiles to accommodate ramps and steps.
The strong version made of galvanised sheet steel offers the door a robust appearance and offers high stability. This is why Samson Doors recommends using the HR116 S profile for rough day-to-day industrial operation.
For more information on large roller shutters, contact us via email or phone us on 0800 328 6250
Hormann HR116 Colours
Colours are often underestimated when purchasing large products. In modern industrial and commercial architecture, coloured shutters are increasingly used as key design elements. Primarily due to their vast size, rolling shutters already play a key role in determining the visual appearance of the facade. This is why we offer you rolling shutters and rolling grilles in over 1000 colours based on the RAL and NCS colour charts.
If you don't like any of our suggested colours below, More than 1000 colour shades are possible - click here to view all colours!
 |
 |
| Grey White RAL 9002 |
White Aluminium RAL 9006 |
Grey White (RAL 9002) and White Aluminium (RAL 9006) are the standard colours for all of our industrial roller shutters.
Preferred Colours
 |
 |
 |
 |
 |
 |
 |
| Flame Red RAL 3000 |
Azure Blue RAL 5009 |
Gentian Blue RAL 5010 |
Leaf Green RAL 6002 |
Pebble Grey RAL 7032 |
Terra Brown RAL 8028 |
Grey Aluminium RAL 9007 |
Ample in Aluminium
The HR116 profile is available in 2 types of aluminium:
Aluminium stucco-textured (without colour coating)
This texture makes the rolling door curtain less sensitive to adverse weather conditions. An additional benefit is the fact that small scratches are less noticeable meaning an impeccably attractive design is maintained despite minor scratches.
Coil coated aluminium
This high quality colour coating on both sides provides long-term protection against adverse weather effects and is reinforced through the application of protective paint with polyamide particles on both sides. This also reduces abrasion and noise, which is important in underground garages with noise-protection requirements.
Each roller shutter is available with a selection of window and ventilation options to offer light, fresh air and clear view from interior to exterior.
Rectangular
Logistics Arrangement
Ventilation Slots
Hormann HR116 Technical Details
| HR116 A | HR116 S | |
| Material | Aluminium | Steel |
| Surfaces without colour coating | Stucco-textured without protective paint | Galvanised without protective paint |
| Surfaces with colour coating | Identical colour coating to choose on exterior and interior | - |
| Standard colours | RAL 9002 RAL 9006 |
- |
| Preferred colours | x | - |
| Special colours | x | - |
| Profile height | 119mm | 119mm |
| Curtain weight | approx 10kg/m² | approx 19kg/m² |
| Wind load class 2 up to a door width of* | 10000mm | 10000mm |
| Heat transmission EN 12428 (single profiles) | 5.3W/(m²K) | 4.5W/(m²K) |
| Door type | Classic rolling shutter | Classic rolling shutter |
| Windows | x | x |
| Ventilation slots | x | x |
x = optionally available | - = not available | * = optional wind locks required in some cases
