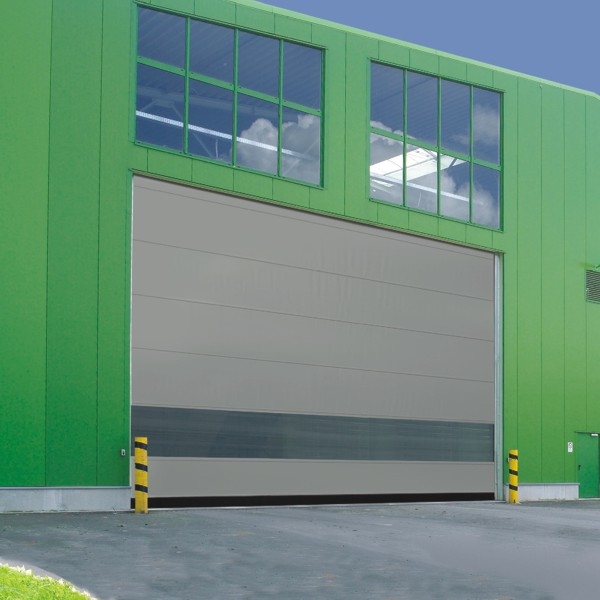

Hormann V 10008 Large High Speed Door

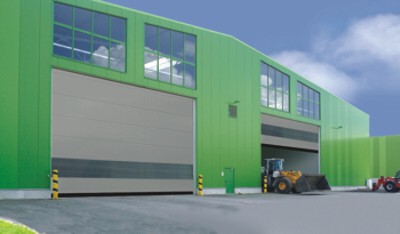

The Hormann V 10008 - the perfect high speed door for large spaces. Boasting a maximum width of 10000mm and a maximum height of 6250mm, it is ideal for oversized openings used regularly by large equipment e.g. heavy machinery. Despite the heavy curtain weight, reliable door travel is ensured due to the especially wide guide rails and a double tensioning belt.
Large High Speed Doors
The standard FU control and double closing edges on the bottom profile ensure that the closing force is maintained and provides the door with its required safety.
Spring steel wind protectors in curtain pocket
The tandem track rollers ensure quiet door travel and allow for higher wind pressures. The number of wind protectors is determined depending on the door size, wind pressure requirements, as well as the installation situation.
Door size
Width (LB) max. 10000 mm
Height (LH) max. 6250 mm
Speed* opening/closing
Standard control
AS 500 FU E
Up to 6000 mm width: 1.5/0.5 m/s
From 6000 mm width: 0.8/0.4 m/s
*max. depending on the door size
Curtain
Spring steel wind protectors with tandem
rollers on the side
Fabric/vision panel thickness 1.5/2.0 mm
Wind protection
Spring steel with side tandem track rollers
Wind pressure
Acc. to DIN EN 12424
Door width up to 6000mm - class, max. 115 km/h
Door width over 6000mm - class, max. 100 km/h
Emergency opening
Crank handle
Optional:
Emergency hand chain
Curtain Colours
RAL 1018 Zinc Yellow
RAL 2004 Pure Orange
RAL 3002 Carmine Red
RAL 5010 Gentian Blue
RAL 7038 Agate Grey
