Side Hinged Garage Doors

Side Hingedwhat's this?

please select width first
Width Height

Web Price: from £531.00
(Excluding VAT and £637.20 Inc. VAT)
enquire about product buy now
  • Description
  • Application
  • Specification
  • Installation
  • Warranty
  • Measure

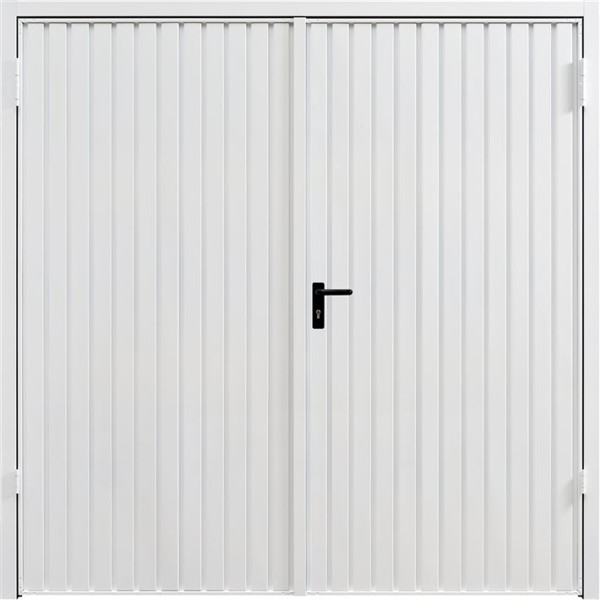

The Garador traditional side hinged doors combine robust and reliable performance with simple personal access.

The Carlton is a vertical ribbed steel design with a 50/50 split.

Please Note: The Garador Side Hinged Doors are only available as 1/3 - 2/3 split up to 2234mm overall frame width.

Standard powdercoat factory finish is white inside and out. A steel sub fixing frame is factory fitted as standard and finished to the same colour as the door panels.

Choice of 7 Powdercoated Options:

RAL 9016 White as standard
RAL 8028 Brown
RAL 5005 Blue
RAL 6005 Green
RAL 3003 Red
RAL 9005 Black
RAL 5011 Dark Blue

New Colours now available:
Light Ivory RAL 1015
Pigeon Blue RAL 5014
Fir Green RAL 6009
Anthracite Grey RAL 7016
Stone Grey RAL 7030
Light Grey RAL 7035
Ochre Brown RAL 8001
Clay Brown RAL 8003
White Aluminium RAL 9006

For security these doors are fitted with a black nylon knob on the outside as standard meaning you always require the key to open the door. For convenience the option of an outside handle is available.

Side hinged doors come with equal sized door leaves with the right hand leaf leading as standard. Left hand leaf leading is available on request if required.


Domestic garage doors


BS 13241 Compliant - All Garador garage doors comply with the latest European safety standards.

> High security lock with fixed knob ensuring security every time the door is closed.
> Internal handle providing easy operation.
> 3 steel hinges securely fixed to each frame and door leaf ensuring reliable function.
> Aluminium centre style providing a seal between the leaves and prevents forced entry to the locking system.
> Weatherstrips around 3 sides of the door to help prevent draughts.

To view further information on the Garador Side Hinged Doors, please click here PDF >

Order Size

Internal frame opening
Width x Height
(mm x mm)

Overall steel frame size
Width x Height
(mm x mm)


 1810 x 1830

 1930 x 1890


 1964 x 1830

 2084 x 1890


 1964 x 1931

 2084 x 1991


 1964 x 1981

 2084 x 2041


 1964 x 2136

 2084 x 2196


 2114 x 1830

 2234 x 1890


 2114 x 1931

 2234 x 1991


 2114 x 1981

 2234 x 2041


 2114 x 2136

 2234 x 2196


 2239 x 1931

 2359 x 1991


 2239 x 1981

 2359 x 2041


 2239 x 2136

 2359 x 2196


 2264 x 1931

 2384 x 1991


 2264 x 1981

 2384 x 2041


 2264 x 2136

 2384 x 2196


 2419 x 1931

 2539 x 1991


 2419 x 1981

 2539 x 2041


 2419 x 2136

 2539 x 2196


Full installation details provided with every door purchased.
Doors are delivered with the steel sub frame and all hinges, doors stays and weatherstrips, etc factory fitted. Only the handle and locking cylinder is seperate

To view the Garador Side Hinged Installation Instructions, please click here PDF >



Warranty Period
The purchaser is granted a warranty covering the safe and reliable function of the Garador garage door for a period of 10 years* from the date of purchase The warranty period for replacement parts is 6 months or to the end of the current warranty period, which ever is longer. The door mechanism and steel frame (if applicable) is covered by the 10 year* warranty period
Warranty claims are only applicable in the country where the garage door was purchased. The warranty only covers damage to the contract object. The fully completed warranty card together with the receipt of purchase correspondingly dated substantiates your right to claim under the warranty.
During the warranty period we undertake to rectify any and all defects to the Garador product which can be proved to be attributed to a material or manufacturing fault. We pledge at our discretion either to exchange the defective merchandise for faultless merchandise, repair it or allow a reduction in price. We do not accept costs for dismantling and installation nor for carriage. Replaced parts become property of Garador Ltd

The warranty does not cover damage caused through: -

normal wear and tear
improper installation
negligent care and maintenance
improper initial and subsequent operation
negligent or wanton destruction
external influences such as fire, water, salts, alkaline solutions, acids,
abnormal environmental Influences
mechanical damage through Improper transport and fitting
priming and other surface protection treatments
incorrect or too late applied surface protection treatments
repair by non-qualified persons
using non-Garador parts without the approval of the manufacturer
removal of the product number or making it unidentifiable
