Brandon Warwick Solid Built Idigbo Range
Side Hinged Garage Doors
Side Hinged Garage Doors
Gear Type: Side Hinged

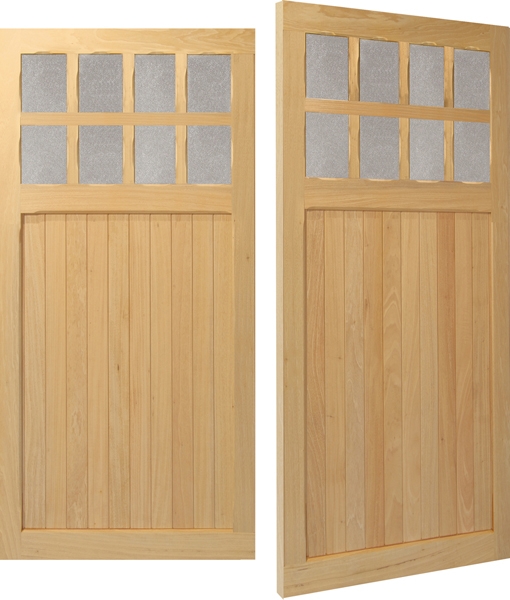

The Woodrite Side Hinged garage doors are hand crafted using cedar tongue and groove boarding and raised and fielded idigbo panels. All doors are pretreated before assembly for the ultimate protection and designed for a timeless appeal.
Solid construction employs wider, deeper wooden rails that eliminate the need for a steel chassis or subframe very large doors may have some bracings to reduce “door sag” when in the open position. Gear fixes directly to the door panel for a very neat appearance to the inside of the door.
The timber side hinged Woodrite doors are purpose made to the required size to the highest quality using only the finest timber selection.
The sizes for ordering refer to the internal sub frame size and all side hinged doors require a timber or steel sub fixing frame for installation and these can vary in size, check each type carefully when ordering, if you are using your own timber sub frame then simply measure the internal daylight opening size for ordering.
The ordering sizes refer to the internal measurements of the fixing sub frame and tolerances are built in from the factory. Every side hinged door set requires a fixing sub frame and these can be different sizes so please check carefully when ordering. If you have your own sub frame already fitted then measure the internal dimensions for ordering purposes.
Domestic garage doors.
Choice of three styles - Contemporary, Classic and Traditional > click to view images
Contemporary is fitted as standard and includes three pairs of brass effect butt hinges, a brass effect night latch lock and finger pull (also available in silver effect), a black monkey tail shoot bolt (bottom) to the inactive door leaf. A pair of stays is also supplied to hold the door open at 90º and prevent accidental slamming when the weather is windy.
The Classic pack contains two pairs of black or silver effect steel strap hinges and the Traditional pack includes hand forged black wrought iron strap hinges (two pairs).
All doors open right hand leaf first when viewed from outside the garage with the option of left hand opening available on request.
All doors include: pair of door stays (also available in black). Latch lock with finger pull (silver effect front plate also available). Monkey tail top bolt (also available in silver). Foot activated bottom bolt (also available in silver).
Door Panel Finish:
Please Note: A surcharge of £75 is added for doors over 7'1" - 8'0" high.
Installation and ongoing treatment and care details are provided with every door.
For further technical information on clearance and fitting dimensions for the Woodrite Doors, please click here PDF >
Woodrite doors are guaranteed against any form of manufacturing defect or mechanical failure for a period of 2 years from the date of original purchase.
The exterior factory fully finished panel is guaranteed to provide a weatherproof membrane which will resist perforation of the substrate from the weather side due to corrosion for a period of up to 5 years, dependent on location and position of door and provided door has been maintained in accordance with the manufacturers instructions.
