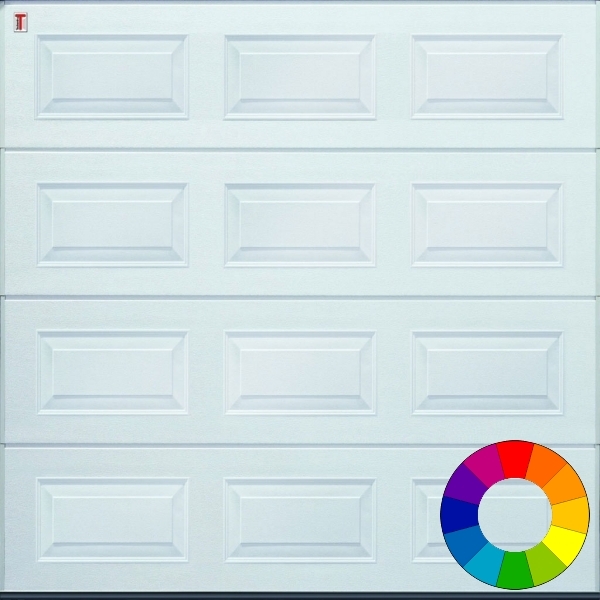

The Carteck Sectional Georgian Garage Door is a 40mm thick insulated steel door coated in a choice of colours. It's uncomplicated design

The 40mm thick door panel construction is made up of an outer and inner steel skin separated by a foamed core ensuring excellent thermal and acoustic insulation

Lead Times

Approx. 2-3 weeks

Please Note: Lead times are approximate only and are subject to change.

Ideal for all residential applications.

Trend Colours available:
Flame Red RAL 3000
Fir Green RAL 6009
Window Grey RAL 7040
Sepia Brown RAL 8014
Anthracite Grey RAL 7016
White Aluminium RAL 9006
Moss Green RAL 6005
Light Grey RAL 7035
Grey Aluminium RAL 9007
Quartz Grey RAL 7039
Jet Black RAL 9005
TT703
TT8014

Frame legs and head are smooth and white as standard.

For further information on the Carteck Sectional Doors and to view colour options, please click here >

The Carteck Sectional garage doors are available with many accessories to personalise your garage door:

External Emergency Release

If selected, this is fitted in the top left hand corner of all doors.

Handle Option

This door is manufactured with no handle as standard. Handle is available for electric operated doors however it is mandatory for manual doors.

Inbetween Opening Installation Kit

If you are fitting inbetween the structural opening this kit is required to adapt the steel frame which is designed as standard for behind fitting. The legs of the frame when fitted inbetween will have a series of factory drilled holes showing which will require a cloaking strip (not provided).

All Carteck sectional garage doors are ready for remote control electric operation.

Carteck Remote Control Operators

Carteck 220.2 - lifts up to 5.0 m wide
To suit Up and Over Doors (max 3.5m wide)
Single Walled Sectional Doors (max 5.0m wide)
Double Walled Sectional Doors (max 3.0m wide)
16 Operations per day
Complete with:
Two digital 302 Transmitters
Mounting bracket to suit up and over and sectional doors

Carteck 250.2 - lifts up to 5.5m wide
To suit Up and Over Doors (max 5.0m wide)
Single Walled Sectional Doors (max 5.5m wide)
Double Walled Sectional Doors (max 5.5m wide)
Retractable Up and Over/Canopy Doors (max 5.0m wide & 2.25m high)
28 Operations per day
Complete with:
One digital 302 transmitter and one digital 313 micro transmitter
Mounting bracket to suit up and over and sectional doors

Carteck 250.02 2 speed - lifts up to 5.5 m wide
To suit Up and Over Doors (max 5.0m wide)
Single Walled Sectional Doors (max 5.5m wide)
Double Walled Sectional Doors (max 5.5m wide)
Retractable Up and Over/Canopy Doors (max 5.0m wide & 2.25m high)
28 Operations per day
Complete with:
Mounting bracket to suit up and over and sectional doors
One digital 302 transmitter and one digital 313 micro transmitter

Carteck 252.2 - lifts up to 6.0m wide
To suit Up and Over Doors (max 6.0m wide)
Single Walled Sectional Doors (max 6.0m wide)
Double Walled Sectional Doors (max 6.0m wide)
Retractable Up and Over/Canopy Doors (max 6.0m wide & 2.25m high)
48 Operations per day
Complete with:
Mounting bracket to suit up and over and sectional doors
One digital 302 and one digital 313 micro transmitter

You will need to select a rail length for operator:

SZ11 - for doors up to 2250mm high
SZ12 - for doors up to 2500mm high
SZ13 - for doors up to 3000mm high

Click here to view the New Carteck Sectional Garage Doors Brochure >

Details for Installation will be available for download shortly. For immediate instruction, feel free to call us on 0800 328 6250

Or click here to view Installation Instructions PDF >

To view the Carteck Sectional Technical Guide, please click here PDF >
(Carteck - Technical Manual)

5-year Manufacturer's Guarantee:
> On castors, hinges, springs, cable castors and cables for normal use (opening / closing max. 5 times a day).

10-year Manufacturer's Guarantee:
> On the panel against rust inside or outside
> On the steel splitting away from the foam
> On Material or Manufacturing faults of all immoveable frame parts, if it can be proved that they are inoperative or their use is impaired
> On floor seals, central seals, side seals and header seal against perishing
> On high performance springs
