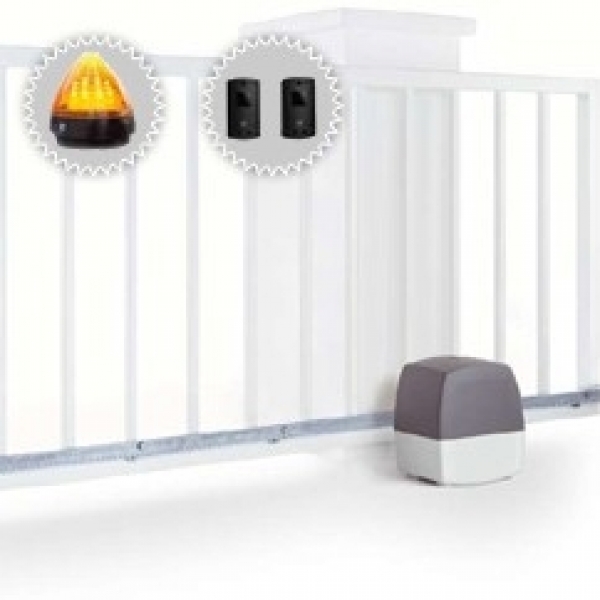

The Hormann LineaMatic P SK Operator is suitable for sliding gates.

Includes one-way photocell and yellow warning lamp for ground fitting.

Not suitable for commercial use!

Operator for sliding gates:
• Up to max. 6000 mm width,
• With a door height of max. 2000 mm,
• Door weight:
– For bottom-guided doors max. 300 kg
– For self-supporting doors max. 250 kg

Suitability:
Max. 12 door cycles (open/close) per day or 6 parking spaces

Operator data:
24 V DC gear drive with worm gear, protection category IP 44, mains voltage 230 - 240 V AC, control voltage 24 V DC, operating mode S2 - 4 minutes, push and pull force 650 N, peak force 800 N.

Control electronics:
Control integrated in operator housing, adjustable automatic safety cut-out and soft start/stop, magnetic limit switches, integral automatic timer.

Standard equipment:
With 4-button mini hand transmitter HSM 4 including hand transmitter holder and integral 2-channel receiver in 868 MHz.
Each hand transmitter factory-coded individually from over 1 trillion combinations.

Housing:
Zinc diecast/weather-resistant plastic.

Temperature range:
From -20°C to +60°C

Scope of delivery:
Including fitting material and operator pinion 'module 4' (straight toothed).
Fitting device to align the toothed rack
Fitting material made of stainless steel, bottom part of housing corrosion-proof and height-adjustable.

Toothed tracks must be ordered separately.
Not suitable for inclining or sloping doors!

Installation details to follow...

5-Year Manufacturers Warranty.
