Specification
Door Panel Finish

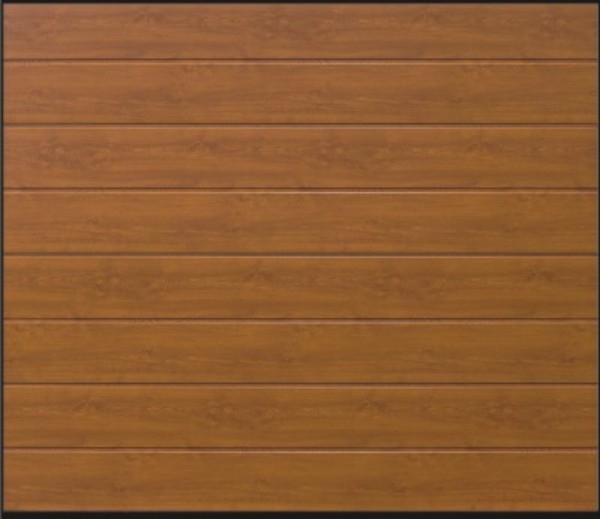

Decograin Golden Oak - Medium-brown, golden-yellow oak
Decograin Rosewood - Mahogany-coloured timber
Decograin Dark Oak - Walnut-coloured oak
New finishes
Light Oak - Light, warm oak design
Night Oak - Dark, intense oak design
Titan Metallic - Anthracite with a metallic effect
The inside of the doors are finished in RAL 9002, which is an off White colour.
External emergency release
The emergency manual release is required on any remote control electric door where there is no other means of access to the garage. It is used in a power failure to release the top panel of the garage door from the electric operator towing arm. We will send the appropriate release mechanism depending on whether the door has a handle set or not. If it does not have a handle the emergency release is a small key access point drilled into the top panel of the door.
The new BiSecur, hand held transmitters for opening automatic doors and gates, feature bi-directional FM radio signals that use the same 128 bit encryption employed by banks for online banking security. Not only does this system make the transmitters more secure but also means that the signal is more reliable and gives extended operating distances.
Another benefit of the new BiSecur system, is that it includes a remote status query. A simple push of a button will tell you whether an out of sight door is open or closed. The multicolour LED light shows red if the door is open and green if closed. The door can be closed even when out of sight, the LED displaying a blue light until the door is closed and the light turns to green. In this circumstance it is recommended that an additional photocell is installed for added safety.
Hormann Promatic E K boom: -
Standard equipment: Supplied with 2 No 2-button micro hand transmitters (HSE 2 BS) in Black (868 MHz). Integrated Receiver (868 MHz) - Bi-directional receiver BS. Hand transmitter holders and integral receiver in 868.3 MHz. Each hand transmitter factory-coded individually from over 1 trillion combinations. Quick release operated from the inside, connecting cable with CEE 13A plug, integral garage light with factory set 2-minute light. Door security kit as safety device. Universal installation bracket for up-and-over doors and sectional doors.
Housing: plastic
Temperature range: from - 20 °C up to + 60 °C
No. of parking spaces: max. 12 door cycles (open/close) per day or 6 parking spaces.
Operator details: 24 V DC gear drive, mains voltage 230 - 240 V AC, 0.2 kW, push and pull force 500 N, peak force 650 N, opening speed 14 cm/s.
Electronic control unit: microprocessor control, automatic adjustment of safety cut-out and travel limits, soft start and soft stop, automatic timer adjustable, hold-open time 30 sec. after activation, impulse control.
Operator boom FS 10: self-supporting steel boom with polyester/polyamide toothed belt, plastic slide carriage and automatic belt tensioner.1-piece, completely pre-assembled.
This operator is supplied with the K boom for the doors listed below:
Up-and-over doors up to 2500 mm high
Sectional doors with track application N up to 2250 mm high
Sectional doors with track application L/Z/H up to 2125 mm high
Total length 3200 mm, travel distance 2475 mm
This is the Series 2 operator, the very latest model.
The new SupraMatic also features all new easy-to-use programming where all of the operator functions can be set simply by entering a two digit code. The halogen, or optional LED, lighting can be operated independently either via the handset or optional push button switch. There is also an adjustable opening option that allows you to ventilate the garage without completely opening the door.
Hormann Supramatic E K boom: -
Standard equipment: Supplied with 1 No 5-button hand transmitter (HS 5 BS) in Black and 1 No 2-button hand transmitter (HSE 2 BS) in Black (868 MHz). Integrated Receiver (868 MHz) - Bi-directional 3 channel receiver BS. Control Buttons - Next to the display on the operator cover. Hand transmitter holder and integral 3-channel receiver in 868.3 MHz for functions impulse, operator lighting and second opening height. Each hand transmitter factory-coded individually from over 1 trillion combinations.
Quick release operated from the inside, connecting cable with CEE plug,integral garage light with factory set 2-minute light, radio-operated.
Door security kit as safety device.
Universal installation bracket for up-and-over doors and sectional doors.
Housing: aluminium and plastic
Temperature range: from - 20 °C up to + 60 °C
No. of parking spaces: max. 25 door cycles (open/close) per day or 12 parking spaces.
Operator details: 24 V DC gear drive,mains voltage 230 - 240 V AC, 0.2 kW, push and pull force 650 N, peak force 800 N, opening speed 22 cm/s.
Operator boom FS 10: self-supporting steel boom with polyester/polyamide toothed belt, plastic slide carriage and automatic belt tensioner. 1-piece, completely pre-assembled.
Electronic control unit: microprocessor control, automatic adjustment of safety cut-out and travel limits, adjustable soft start and soft stop, 7-segment display, operator light and second opening height adjustable. Automatic timer adjustable, hold-open time 10 - 180 sec. after activation, impulse control.
