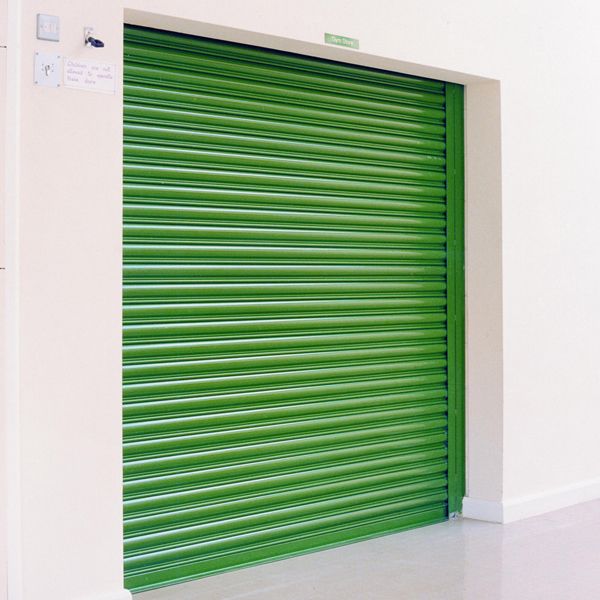

Seceurodoor 75 Traditional - Single Phase 240v Tube Motor - 20swg Steel
Steel Roller Shutter Doors
Max Width 7m Max Height 5m
Material: Steel
Enquiry Form
Call Us
Email Us
Web Price: £655.00
(Excluding VAT and £786.00 Inc. VAT)
1
Ordering
Web Price:
£655.00
(Excluding VAT and
£786.00
Inc. VAT)
NEED HELP? Call us on 01933 448 850
or click here to connect via our Live Chat
- Description
- Application
- Specification
- Installation
- Measure
Description
Low to medium use high quality, industrial ‘Traditional’ build and commercial specification roller shutter door using a single phase 240V electric tube motor for operation.
Electric tube motor roller doors are usually for low usage openings with minimal daily use as they do not have high ratings for multiple operations. Neatly integrated motor built inside the barrel for the roller curtain, so completely hidden apart from limit settings and cabling for power and controls.
Typical use would be on factory, farm buildings, workshop, or warehouse, where there may be 10 - 20 operations per day. 240V electric tube motors cannot be used on very high openings as they don’t have the required pulling force. This roller shutter includes an internal manual override facility as standard, with a winding handle and the exit for attachment of the winding handle underneath the roller curtain, integrated with the motor on the same side as chosen.
ALL SeceuroDoor products are:
CE or UKCA marked. Purchasing any product for commercial use requires full compliance with UK regulations. Approved LPCB products are also available.
Manufactured within an ISO9001 and ISO14001 certified UK company
Made to measure as standard for a perfect fit at no extra charge.
Using the highest quality components and electric motor drives for the best overall package with most reliable operation.
Strong single skin galvanised steel profile
Available in 18g (POA), 20g and 22g curtain options
Medium security office / commercial / industrial applications
Spans widths up to 7000 mm
Can be powder coated any RAL / BS colour
Plastisol colours available
Manual Spring & Lock – When there is no power available for electric operation or the shutter will not be opened very often. The solution is not available for shutters over 2.8 m tall.
Max width up to 7000 mm
Max height up to 5000 mm
Max area up to 35 m2
Wind class rating: Class 2 (when used on 65 mm+ guides)
Application
Low to medium use, high quality, ‘Traditional’ build and commercial specification roller shutter door, using a single phase 240V electric tube motor for operation.
Electric tube motor roller doors are primarily used for low usage applications, with minimal daily use as they do not have high ratings for multiple operations per day.
Neatly integrated tube motor built inside the barrel for the roller curtain, completely hidden, apart from limit settings and cabling for power and controls.
Neatly integrated tube motor built inside the barrel for the roller curtain, completely hidden, apart from limit settings and cabling for power and controls.
Typical use would be on a small factory, farm buildings, workshops, or small warehouses, where there may be 2 - 10 operations a day. 240 V electric tube motors cannot be used on very high door openings as they don’t have the required pulling forces for the weight. This roller shutter includes an internal manual override facility as standard, with a winding handle and the exit for attachment of the winding handle underneath the roller curtain, integrated with the motor on the same side as chosen.
Safety brakes are built in as required by law as standard for total compliance.
Safety brakes are built in as required by law as standard for total compliance.
This model build uses a heavier 20 guage galvanised steel single skin curtain available in various colour finish options. Slightly cheaper 22 guage option is available.
The electric tube motor can be controlled by 2 main methods:
The most basic and standard method is an internal wall mounted push button station with a hold to run logic. You stand and hold the button firm for the duration of the opening or closing cycle and this way no safety edge or beam systems are legally required keeping the costs to a minimum.
Of course you must be able to enter the building via another door for this method.
The second option is a wall mounted control panel with the addition of remote control handsets and we supply 2 handsets as standard, but you can have as many as you need. The safety system is a safety edge detection built in with the bottom T rail section to stop if an obstacle is met during operation. If the door is adjacent to any public pathway or road we suggest additional safety with infra red beams to further enhance the safety.
Specification
This specific model build uses a 20 guage galvanised steel single skin curtain available in various colour finish options as well as the most basic galvanised steel finish.
Slightly cheaper 22 guage curtain option is available.
This model is a Traditional build roller shutter door - click here for details
The electric door tube motor can be controlled by 2 main methods.
The most basic and standard method is an internal wall mounted push button station with a hold to run logic. You stand and hold the button firm for the duration of the opening or closing cycle and this way no safety edge or beam systems are legally required keeping the costs to a minimum.
Of course you must be able to enter the building via another door for this method.
The second option is a wall mounted control panel with the addition of remote control handsets and we supply 2 handsets as standard, but you can have as many as you need. The safety system is a safety edge detection built in with the bottom T rail section to stop if an obstacle is met during operation. If the door is adjacent to any public pathway or road we suggest additional safety with infra red beams to further enhance the safety.
Colours
This roller door is available with the curtain prefinished in either a powdercoat finish which would be the same colour each side of the slat, or it is available in a plastisol coated external finish, which has a standard off white internal paint finish.
As totally standard and used by many people, depending on the roller door location, you can have the steel curtain in its natural galvanised steel finish.
We can offer the door in special colours other than the ones showing in our online shop options and of course you can mix and match the guides, hood cover and curtain if required, please email or call for details and prices.
Installation
Full installation details are provided with every door.
Measure

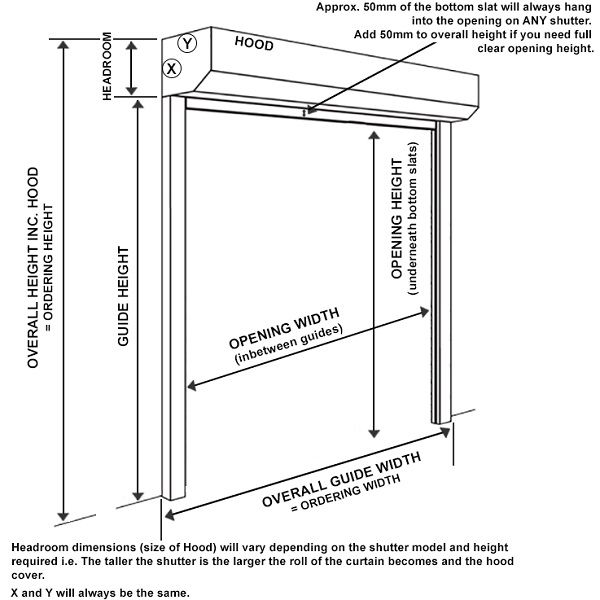

Ordering Sizes for our ‘Traditional’ build roller shutter doors are the actual daylight opening sizes In-Between the side guides and Underneath the endplates. Make sure you understand the guide and angle widths either side and the endplate size in relation to the door size ordered.
For the perfect internal face fitting situation behind an opening these ordering sizes are effectively the aperture size, but there is always a small hang down on the bottom slat when fully open, which affects the final drive through height.
Samson Doors will always provide a final detailed door drawing for you to check and sign off with us before any manufacturing commences.
The Traditional build on this roller shutter door incorporates steel guides and track angles with optional arrangements to suit the fixing points on site. A ‘Traditional’ build roller shutter will use steel guides, channels, endplates and optional hood cover. Using steel components means the door can be larger than the Continental style roller shutters.
The endplates and hood cover size will vary depending on the height of the door so please be aware to check the drive through height and endplate size.
An emergency manual override is included as standard with the access underneath the endplate on the motor side as facing looking at the endplate side of the shutter. Other positions are available on request.
