S77 Insulated Industrial Roller Shutter

Samson S77 Insulated Industrial Roller Shutter

View prices in our Online Shop!

The S77 Steel Industrial roller shutter has been designed to ensure that the door can be assembled and installed with ease. The fixing kit is fully galvanised with pre-drilled holes for assembly. Guide section mounting holes are uniform throughout every door ensuring future repairs can be carried out using standard off the shelf materials quickly and efficiently. S77 door slats are roll-formed steel insulated sections, eliminating the need for pre-assembly in your workshop, coming in manageable sections of 6-10 slat profiles depending on door size and your requirements. Also available is a fully loaded barrel option, the shutter curtain is fully loaded onto the shutter barrel during the manufacturing process, saving even more time on site.

(A surcharge is applied for fully loaded curtain option. Access equipment for offloading the delivery vehicle and access during site installation is required.)

All Samson S77 Insulated Industrial Roller Shutters come complete  the following:

  • 3 Phase Safe Drive Direct Drive Operator c/w Anti-Fall Back Device, Pre-wired Low Voltage Starter
  • 77mm X 18mm Steel Interlocking Insulated Slat Sections Complete With Pre-Coated Laminated Finish
  • Reinforced Galvanised Two Part Wind lock Guide Sections 80mm X 70mm X 3mm, Featuring Double Brush Seals
  • Heavy Duty Base Rubber Seal & Carrier
  • Easy Bolt Technology Ensures All Parts Have Fully Inter-Changeable Hole Centres For Ease Of Future Repairs
  • 2 year warranty - subject to correct installation & servicing

Profile Specification

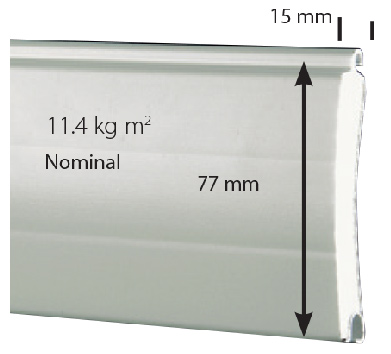

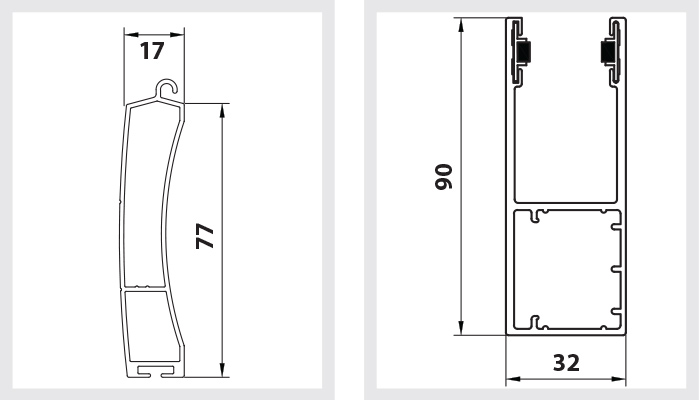

S77 is a double skin profile roll-formed from a single pre-coloured steel section with a hot injection polyurethane central core, this bonds to the internal face of the section giving additional strength and rigidity. The S77 profile also has a short throw reinforced quirk which interlocks each profile to form a continuous door curtain. Heavy duty slat end-caps are pop rivetted to ensure that the curtain always runs smooth and square in the guide channel.A reinforced carrier strip connects the 20mm deep base seal to the bottom rail, eliminating draughts and debris from passing under the closed door.

Note: Doors exceeding 5000mm clear opening incorporate an additional reinforcing angle to the bottom rail.

Optional reinforced wind lock anchors ensure the S77 continues to perform up to 1250 Pascals required for level 5 wind loading tests.

Guide Section

The guide sections are rolled formed 3mm two part galvanised steel complete with wind lock recess, neoprene brush seals internally and externally.

Optional wind locks are fitted as standard on shutters over 5500mm opening width.

On applications in extreme weather areas, wind locks may be required depending on application.

Shutter Mounting Kit

The S77 Shutter kit comprises of a range of 5mm thick galvanised head plates from 400mm x 400mm up to 500mm x 500mm.

All head plates are pre-drilled to accept all relevant bearing carriers and motor mounting brackets. Door guides comprise of two individual 3mm thick roll formed sections bolted together, eliminating the need for a separate fixing angle An additional support angle which encases the guide sections is supplied with doors exceeding 5500mm opening width, bringing the combined thickness up to 9mm on the stress corner of the guide channel.

Samson S77 Industrial Shutter Standard Colours

The Samson S77 profile has a zinc protective coating applied before the laminated coating finish is adhered. The zinc coating ensures that the cut ends of the steel slat will not show any signs of corrosion during standard weather conditions.

Colour References shown are deemed to be the nearest reference available. Sample Colour Swatches are Available to ensure colour comparability. Bespoke colours are available depending on quantity.

Click any colour sample to view preview

Flame Red   White   Ivory   Merlin Grey
Brown   Green   Azure Blue   Beige
Goosewing Grey   Black   Cornflower Blue   Olive Green
Sapphire Blue   Sunflower Yellow   Silver   Golden Oak
  Colour Options

Motor & Controls

Pre-wired 3 phase irect operator package with inbuilt anti-fall back device supplied as standard with low level controls. Additional control cards are available to extend the operational features of the controller. All operators come complete with low level over-ride haul chain engagement. Safe Drive D Motor & Controls The standard door operation is hold to run, with optional features:-

  • Auto time return
  • Plug in loop card
  • Rdio control
  • Safety edge system

All of the above features require acontrol upgrade to be activated

Technical Details

The S77 steel shutter has been independently tested and certified to withstand a Class 5 wind loading at 7000mm wide. The roll-formed insulated steel profile sections have been thermally assessed to a “U” value of 1.37 W/M.K

Curtain weight 12Kg Per Sq/M

Maximum recommended door dimensions 35Sqm area with a restriction of 6000mm opening height. please contact the technical department for doors exceeding these guidelines.
