Georgian Small Premium Timber Effect - single sizes
Sectional Garage Doors
Gear Type: Sectional

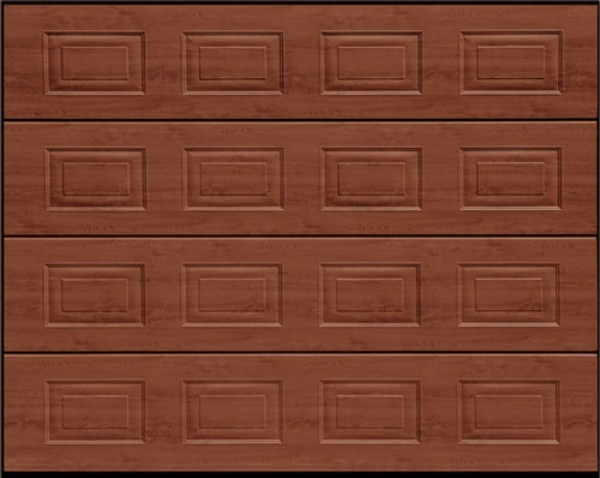

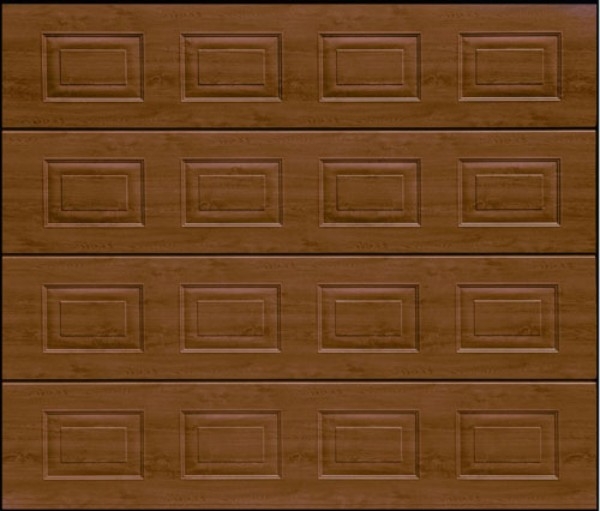

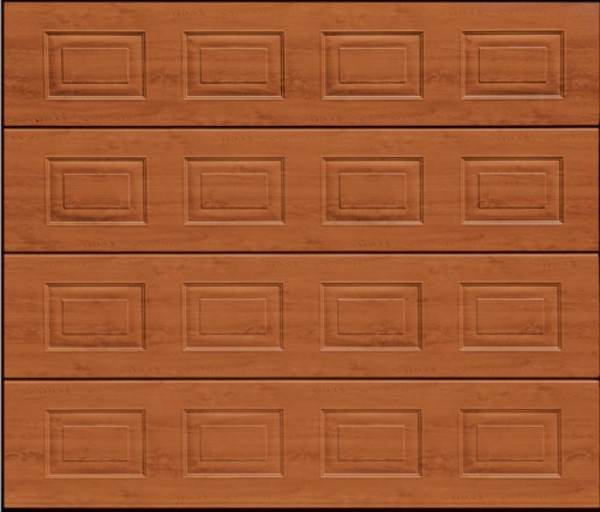

The beautiful timber effect on this sectional door is brought about with the clever application of a foil coating sectional door panel face. The detail of the small panel featured with this particular Garador Georgian sectional garage door is beautifully enhanced by this timber effect finish. Whether the selection is golden oak, rosewood or dark oak they all share the same degree of authentic appearance. The coating is a UV-resistant synthetic foil treated with a special surface protection to preserve the beautiful appearance for many years.
This Premium double skinned insulated 42mm thick door version is eminently suitable for garages needing a high degree of insulation, perhaps when integral to the house or using the garage as a utility room.
To ensure the highest levels of thermal insulation and structural rigidity, each 42 mm thick double-skin steel section is evenly filled with 100% CFC-free PU rigid foam.
*Lead-time approx 6 weeks.
Frame Cover Profiles are necessary items to cover the frame legs when exposed. All Garador sectional door frame legs are white powdercoated as standard whatever door colour and type you choose. Frame cover profiles are designed to match the chosen colour of the garage door and are supplied as a pair to the height of the door ordered. Please ask for more details as there will be an extra charge.
Standard - Clear / Crystal
Cross - Clear / Crystal
Diamond - Clear / Crystal
The Window frames are painted to match the colour of the door panel finish.
Double-skinned steel doors 42 mm
Section U = 0.50 W/m2 K
Door leaf U = 0.90 W/m2 K
Fitted door 1) U = 1.30 W/m2 K
Double-skinned steel doors 42 mm R = approx. 22 dB
Double-skinned steel doors 42/20 mm R = approx. 21 dB
Double-skinned steel doors 42 mm class 3
Double-skinned steel doors 42/20 mm class 3
Maximum Door Sizes
Width 5000mm Height 3000mm
16mm double pane in clear (DS) or crystal structure (DK)
S0 S1 S2 S10 S20 S30 S40 S50 S60 M0 M1 M2 M10 M20 M30 M40 M50
To view or download the Garador Sectional Doors Brochure, please click here PDF >
Full installation details supllied with every door
Garador Sectional Doors Installation Manual - side springs (tension spring) PDF >
Garador Sectional Doors Installation Manual - top springs (torsion spring) PDF >
Garador Sectional Doors Installation Manual - low headroom (torsion spring) PDF >
GARADOR GARAGE DOOR WARRANTY
The purchaser is granted a warranty covering the safe and reliable function of the Garador garage door for a period of 10 years* from the date of purchase The warranty period for replacement parts is 6 months or to the end of the current warranty period, which ever is longer. The door mechanism and steel frame (if applicable) is covered by the 10 year* warranty period
Warranty claims are only applicable in the country where the garage door was purchased. The warranty only covers damage to the contract object. The fully completed warranty card together with the receipt of purchase correspondingly dated substantiates your right to claim under the warranty.
During the warranty period we undertake to rectify any and all defects to the Garador product which can be proved to be attributed to a material or manufacturing fault. We pledge at our discretion either to exchange the defective merchandise for faultless merchandise, repair it or allow a reduction in price. We do not accept costs for dismantling and installation nor for carriage. Replaced parts become property of Garador Ltd
The warranty does not cover damage caused through: -
normal wear and tear
negligent care and maintenance
improper initial and subsequent operation
negligent or wanton destruction
external influences such as fire, water, salts, alkaline solutions, acids,
abnormal environmental Influences
mechanical damage through Improper transport and fitting
priming and other surface protection treatments
incorrect or too late applied surface protection treatments
repair by non-qualified persons
using non-Garador parts without the approval of the manufacturer
removal of the product number or making it unidentifiable
All doors up to 3049mm wide come with tension springs as standard and torsion springs are available at extra cost. All doors over 3050mm wide come with torsion springs as standard. Low headroom application available at extra cost for all sizes over 3050mm.
