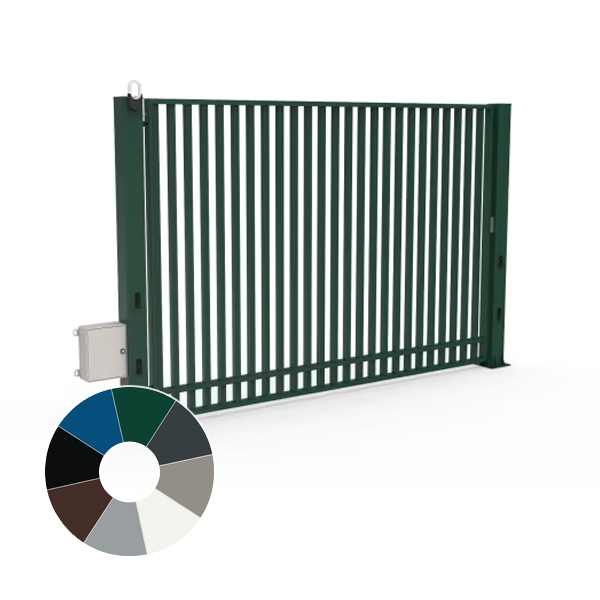

An electric hinged swing gate is still a popular choice for many entrances, being a simple concept, offering excellent security and with the AGD 80S steel gate, excellent strength and stability with this commercial grade gate system. This vertical bar design is timeless and a classic gate for use in both commercial and domestic premises to increase security and control access for vehicles and pedestrians alike.
This is an automated gate bundle to include the relevant electric motor drive with the gate and the fixing posts either side.
- Manufactured using high grade steel for the best longevity and reliability
- Available in made to measure width and heights to suit.
- Bolt down support posts for easiest site installation (posts for concreting into the ground are also available on request)
- Security through tamper proof construction and locking mechanisms
- Pre finished colours when ordering and protective coating to withstand the harshest outside conditions. Hot dipped galvanised to secure against corrosion.
- Matching fencing available on request
- 2 year manufacturers warranty
Vehicle entrance security for domestic and commercial applications.
Entrance gate access control for multiple property types. Any entrance where the gate swinging is not a problem with side room available. The swing gate can provide a great solution when there are no internal obstructions for the gate when opening fully.
Complete automation bundle offering the steel gate, support posts and electric motor drive and controls in one package.
This gate range comes with a complete automation package, including a full Beninca above ground automation kit, flashing light, dual height photocells, ASO safety edges, a Beninca wireless safety edge transmission system, plus additional items to enable a complete install.
In standard format this automated swing gate is controlled by remote handsets (2 included) but can have multiple other control systems added.
Width (inside post to post) 3.5m, 4.0m, 4.5m or 5.0m
Height (leaf height from ground level) 1.4m, 1.6m,1.8m, 2.1m, 2.4m
Size Other Sizes Available - Call To Discuss
Lead Time Starts From Drawings Sign Off - 7 weeks
Material Galvanised Steel to ISO 1461
Finish Polyester Powder Coated to BS EN 13438
Box Section of Main Gate Frame 80 x 80mm
Infill Type Vertical Bar
Manufacturer Warranty 2-Years
Standards Manual Gate Safety to BS EN 12604
Included in Standard Gate Package:
Bolt down steel gate posts (2x)
Automation ram/rams kit - Control panel, ariel, set of photocells, 2 remote fobs
Photocells (1 pair)
Mains rotary isolator
Enclosure cabinet
Flashing light
M20 x 220mm ground anchor bolts (8x)
ASO cat 3 safety edges (2x)
Beninca wireless safety edge transmission system
Locinox U-Safe safety cable
GF60 door loop
Available in 8 standard polyester powdercoat finished colours, including the posts.
RAL 9005 Black
RAL 6005 Moss Green
RAL 7016 - Anthracite Grey
RAL 7030 - Stone Grey
RAL 7040 - Window Grey
RAL 8017 - Dark Brown
RAL 9016 - Traffic White
RAL 5010 - Gentian Blue
Almost any RAL colour is available on request at additional charge - please contact us for details and pricing.
We offer professional, on site installation for any of the AGD series of commercial sliding, swing or bi folding gates and can provide additional services to ensure your security gate is installed to the highest possible standards. We also offer ongoing maintenance for the gates and of course many other products around your commercial site.
The gates are supplied and off loaded with a hi-ab truck and are relatively ‘plug and play’ in their construction once the ground and electrics are prepared properly.
The AGD 80S automated Swing gate comes with a two-year manufacturers warranty. Wisniowski are the manufacturers and are an established high quality manufacturer for domestic and commercial door and gate systems in Europe.

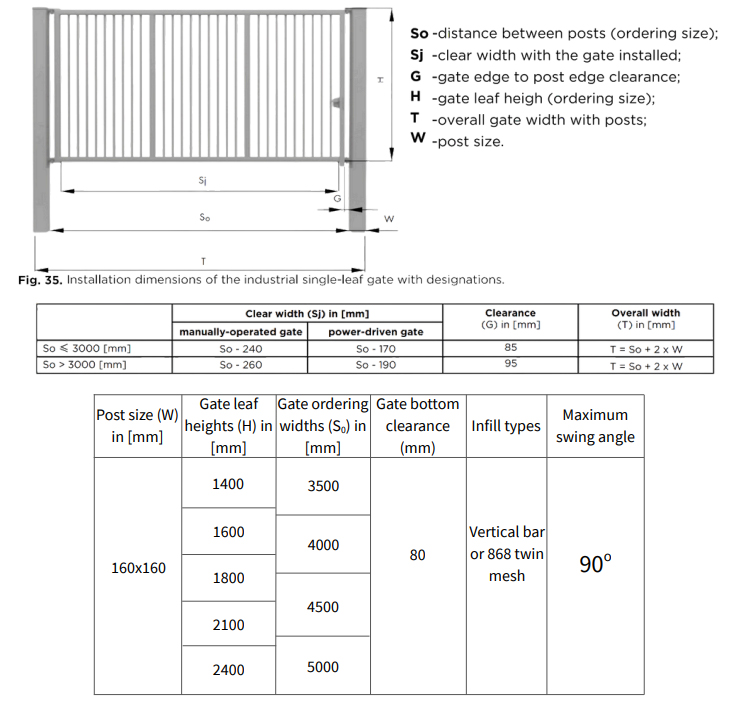

The ordering dimensions for this swing gate refers to the internal dimensions between the 2 gate support posts. Overall width needs final verification and each gate post is 160mm x 160mm either side plus the gate hinged dimensions. Generally you will deduct between 170mm and 190mm to provide the final drive through width when the gates are open.
