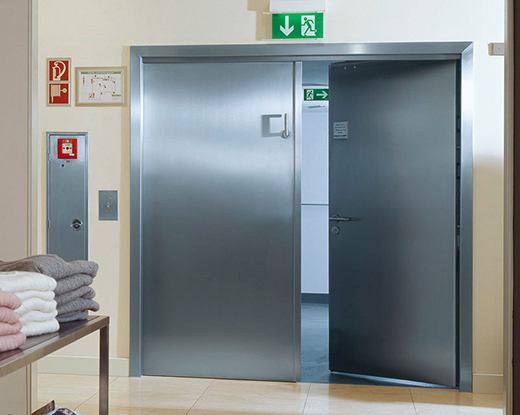

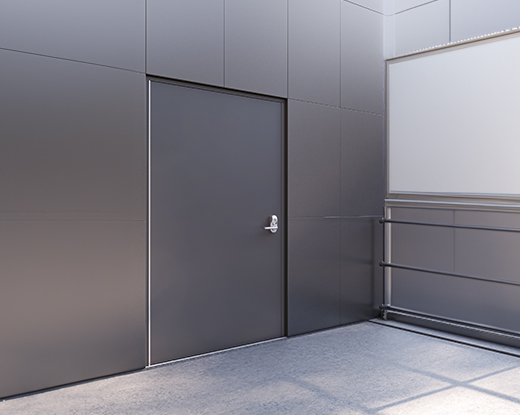

Insulated steel door sets offer not only insulation but can also improved security, acoustic and fire protection for both residential and commercial properties. Offering superior protection against the elements as well as excellent sound-proofing benefits and enhanced security features. Insulated steel door sets come in a variety of designs to suit any décor whether you’re looking for solid, embossed or partial glazing, making them an attractive option for modern homes and businesses alike.
Energy Efficiency Cost Savings
Government guidelines and building regulations, specifically Part L stipulate performance in thermal efficiency for doors. Performance measured in the U value for a door manifest into cost savings for heating in buildings. Thermally efficient doors will provide many benefits and with steel doorsets other benefits will be automatically included such as strength stability and security simply because steel is a better material for doors than timber or Upvc.
Because all steel doorsets are double skinned steel door leaves with a thickness between 45 - 67mm generally, the space inbetween can be infilled with many different types of material for increasing door panel performance. U values of 1.6 W/m2K for new dwellings and 1.8 W/m2K for commercial buildings can easily be achieved and certified.

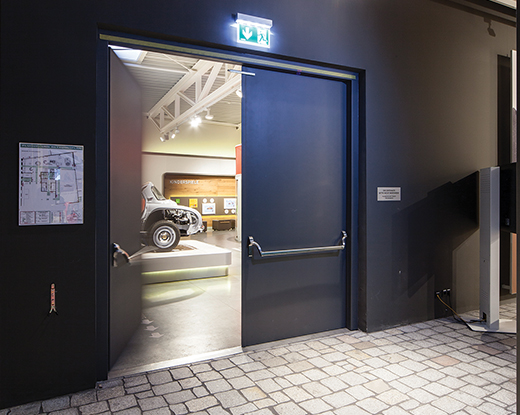

Insulated Fire Rated Doors
The drive for net zero and energy efficiency in buildings gives the greatest drive for all external steel doors on buildings to be insulated as standard but this can also apply to fire doors too on a different level. It is obvious that any door fitted to prevent the spread of fire in a building should also be stopping the heat transfer for the fire too. In Europe this has been standard for years. A raging fire on one side of a door that isn't insulated will cause the non fire side to have a glowing red hot panel which will easily cause materials to burn and also seriously injure people near to this door too. Think of the glass on an oven door. That doesn't burn you on the outside when the oven is on full and this should be the case for a fire door too.
EI rated fire doors, which are insulated as well as designed to prevent the spread of flames are becoming more and more common place in the UK now.
The UK & Ireland are the only major European markets where it is NOT mandatory to specify steel personnel doors with both insulation and integrity fire ratings.. That will change one day as it is just common sense they should be.
Insulated Hinged Doors
Samson specialise in domestic, commercial and industrial specification insulated hinged doors and all of the doors are manufactured to include prefitted specific hardware and fixing sub frame components, not only for the easiest site installation but also to ensure compliance and continuity of quality, specification and performance.
Quite simply, double skinned, insulated steel panels offer the very best all round performance for hinged doors, whether that is for domestic hinged garage doors or high performance security rated commercial doors.

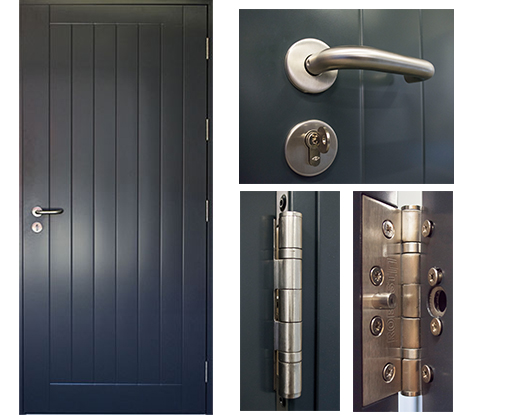

Samson GarageGuard
Higher Security 55mm thick steel hinged doorset designed to protect your garage and outside buildings. Factory assembled and ready to fit when delivered.
* Made to Measure overall door and frame sizes as standard up to 1290mm W x 2200mm H (Double door sets up to 2600mm width) - Perfect fit every time.
- Full 10 year guarantee with corrosion resistant Magnelis steel specification
- Steel sub frame constructed from 1.6mm Magnelis steel with fully adjustable outer frame section to accommodate uneven openings up to +/- 30mm
- Fixing Sub Frame fitted with 4 dog bolt hinges as standard
- Optional infill available to provide U values to between 3.1 and 1.6 (w/m2k)
- 50 standard colours and woodgrain laminate options
- Profiled outer panel design with traditional vertical groove design. Optional horizontal design with spacing options and also available on both sides
- Stainless steel lever/lever handles as standard with double euro profile cylinder locking
- Arrone AR910 DIN std sashlock
- 15mm standard rebated threshold with 3 other options available
- Window options available in many shapes and sizes - double glazed
This is the perfect steel hinged door to protect your garage, home and outside buildings. Beautiful finish, guaranteed durable construction, solid strong panel, certified locking system.
The Samson GarageGuard is a perfect compliment to any security rated garage door or security shutter system offering complete peace of mind that your building and garage contents are secured against would be intruders. This door is superior in all ways to any other steel door available in the UK at the same price point.

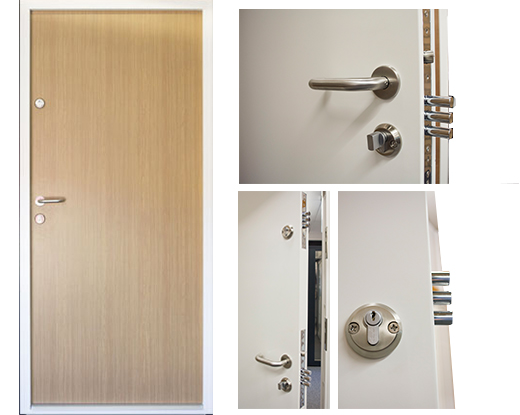

Samson HomeGuard
60 minute Fire Rated, higher security doorset for protecting your home. Designed for entrances into your home from an integral garage or outside covered area. 55mm thick steel hinged door set with factory fitted 4 sided steel frame.
* Made to Measure overall door and frame sizes as standard up to 1290mm W x 2200mm H (Double door sets up to 2600mm W)— Perfect fit every time.
- Full 10 year guarantee with corrosion resistant Magnelis steel.
- Steel sub frame constructed from 1.6mm Magnelis steel with fully adjustable outer frame section to accommodate uneven openings up to +/- 30mm
- Frame fitted with 4 dog bolt hinges as standard
- Optional infill available to provide U values to between 3.1 and 1.6 (w/m2k)
- 50 standard colours and woodgrain laminate options
- Profiled outer panel design with traditional vertical groove design. Optional horizontal design with spacing options and also available on both sides
- Stainless steel lever/lever handles as standard with double euro profile cylinder locking
- Hooply multipoint sashlock as main locking method with Securefast TS007 1 star 80mm euro key and thumbturn
- Hooply multipoint deadlock set for secondary locking (holiday mode) in upper section of door
- 15mm standard rebated threshold with 3 other options available
- Window options available in many shapes and sizes - double glazed
The perfect peace of mind solution for your internal door from your garage into your home. Security, fire protection for compliance and a guaranteed high quality standard of door and hardware.
Get in Touch
If you require high quality steel doorsets you can rely on from leading names in the sector, please do not hesitate to get in touch.
Call us today on 01933 44 88 50
Email enquiries@samsondoors.co.uk or buy online for delivery to your door.
Defender ThermaGuard
For U values as low as 1.4 W/m2K in a single leaf doorset this is a door technology designed to meet the increasingly higher demands in energy efficient buildings.
The ThermaGuard technology can be applied to other door models we offer to provide insulation as well as other specification requirements.
Current other doors which can have the Thermaguard technology include:
Defender SafeGaurd
Defender PASGuard
Defender DecorGuard
Minimum frame depth for this specification is 110mm with a door leaf thickness of 60mm.
.png)

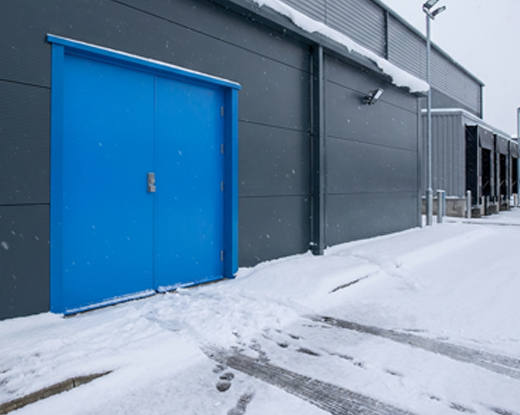

Robust OUTA-DOR THERM – High-Performance Thermal Steel Doorset
The Robust OUTA-DOR THERM is a premium, made to measure insulated steel doorset designed for projects where thermal efficiency, durability and compliance are all critical. It delivers excellent U values and robust weather performance in a fully factory assembled package ready for fast installation on site.
Engineered for Low U-Values and Compliance
- Specially developed to meet current UK regulations for pedestrian doors, achieving U-values from 1.5 W/m²K on standard configurations, with options down to 1.3 W/m²K for higher performance applications.
- Available as FD60 fire-rated on request, allowing you to combine thermal performance and 60-minute fire integrity in a single doorset.
- Unglazed doorsets use a mineral wool core and thermally optimised frame construction to minimise heat loss through both leaf and frame.
Magnelis® Steel Construction with Long Warranty
- Door leaf constructed from two 1.2 mm thick Magnelis® steel sheets lock-formed and bonded around an insulated core, creating a rigid, long lasting structure.
- Frames manufactured from 1.5 mm Magnelis® steel with a single rebate design and additional lip for a precise, secure closure.
- Supplied with an anti corrosion warranty of up to 10 years thanks to the advanced Magnelis® coating’s superior resistance compared with traditional galvanised steel.
Flexible Configurations for Commercial Projects
- Available as single or double doorsets, inward or outward opening, to suit a wide range of openings and traffic flows.
- Can be specified with vision panels, louvres, side panels and overpanels, giving you design flexibility while maintaining overall thermal performance.
- Compatible with a broad selection of high quality hardware, pre-fitted at the factory to reduce installation time and complexity on site.
Faster Installation, Lower Lifetime Costs
- Every OUTA-DOR THERM doorset is supplied pre-assembled with all hardware fitted for quick, straightforward installation, including adjustable fixing frame to compensate for out of square openings up to 30mm.
- When combined with adjustable fixing feet and variable sub-frame options, the system significantly cuts fitting time and minimises mastic gaps around the frame.
- The inherent strength and impact resistance of steel, plus reduced maintenance and long service life, deliver a more cost-effective solution than traditional timber doors over the lifetime of the building.
Ideal Applications
The Robust OUTA-DOR THERM is particularly suited to:
- Retail and hospitality entrances and service doors requiring strong thermal control.
- Warehousing and distribution units where energy efficiency and durability are equally important.
- Education, healthcare and public sector buildings needing compliant, high traffic external personnel doors.
Used as a fire door, fire exit or general personnel door, this insulated steel doorset provides a high specification, project ready solution for demanding commercial environments.
