Trackless barrier

Samson Doors supplies Xpanda manufactured mobile and fixed trackless expandable barriers for securing openings, restricting access and protecting staff-only or public-facing areas in a wide range of commercial, industrial and public sector buildings. These collapsible steel barrier and grille systems provide a practical solution where a permanent tracked system is not required, or where flexibility is important for day-to-day operation.

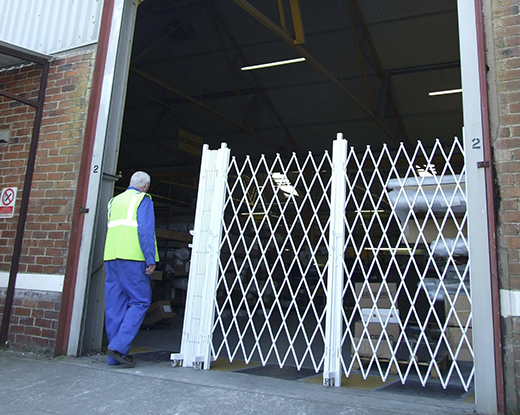

One end of the barrier is either fixed to a wall bracket or supported on its own wheeled post. The leading stile is pulled across the opening and secured to a receiving post, wall clamp, opposing structure or another barrier section, depending on the layout. To reopen the area, the barrier is unlocked and the lattice folds back on itself into its parked position.

Because the leading edge is wheeled and the trellis structure carries much of its own load, a single person can usually move and deploy even a relatively wide barrier without assistance.

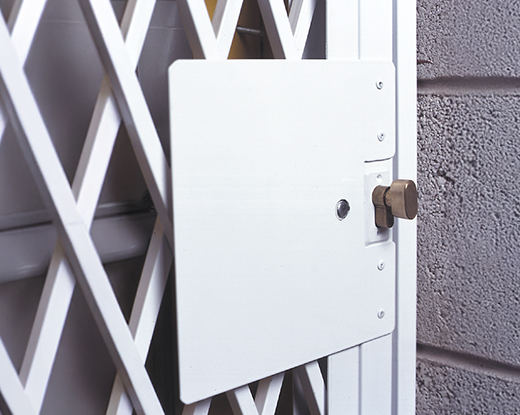

Locking is normally at the meeting stile using a cylinder lock or a padlock-ready hasp. Where controlled key access is important, more specific keying arrangements can be specified as part of the project.

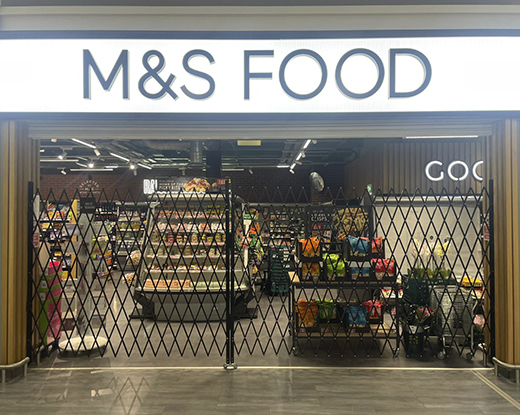

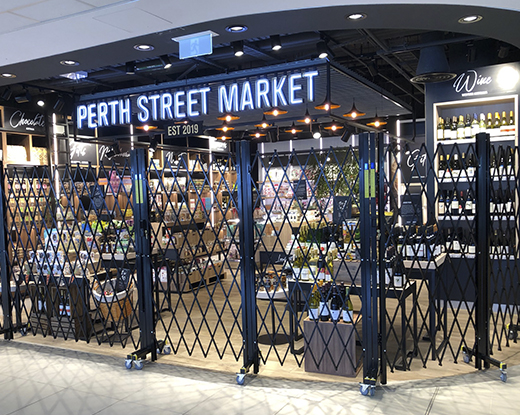

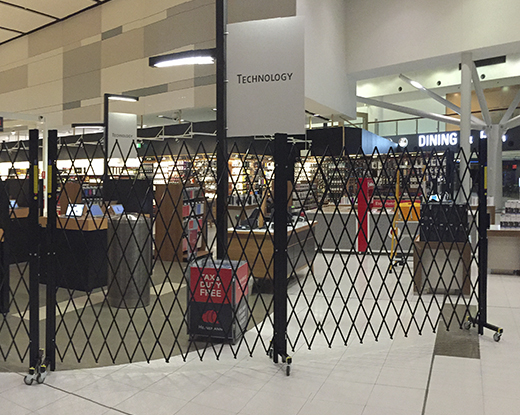

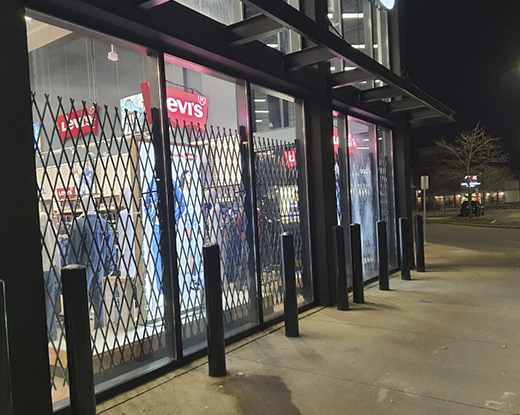

Trackless expandable barriers are a strong choice for retail shops that need to secure entrances, internal stock zones, sales areas, display sections or back-of-house openings without installing a permanent track across the floor. Their open grille design maintains visibility into the secured area while still creating a strong physical and visual deterrent.

They are especially useful where staff need a barrier that can be opened and closed quickly during trading hours, or where selected parts of the store need to be blocked off temporarily for cleaning, replenishment, maintenance or security reasons. For higher-risk shopfront security, heavier galvanised steel versions are generally the preferred specification.

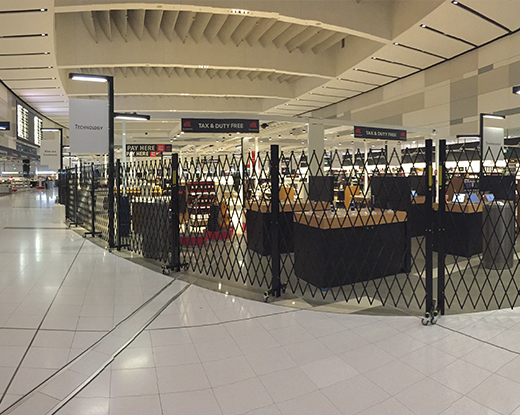

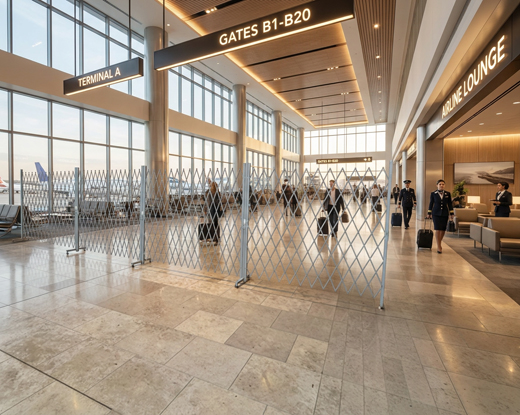

Airports and transport buildings often need temporary access restriction in public circulation spaces, service corridors, staff-only routes and operational areas. A trackless expandable barrier provides a practical way to close these areas quickly without introducing permanent floor tracks that could interfere with cleaning, wheeled traffic or changing operational requirements.

Mobile versions are especially useful where facilities teams need to reposition the barrier regularly or create temporary closures around cleaning, maintenance, security checks or passenger flow control.

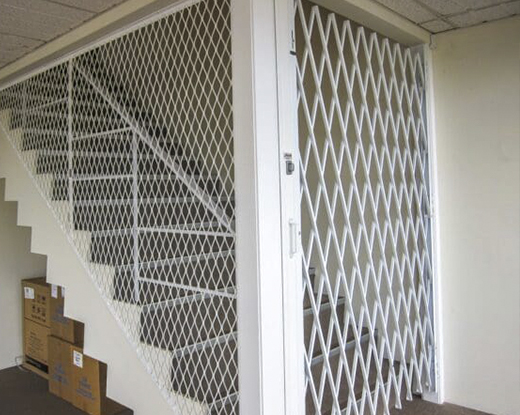

Corridors and stairwells are often awkward spaces for conventional tracked or rigid barriers, especially where openings are not perfectly straight or where circulation routes must remain unobstructed when the barrier is not in use. A trackless expandable barrier is well suited to these applications because it folds back neatly and extends only when needed.

Right-angle solutions can also be used where the opening turns around a corner or where a straight-line closure is not enough.

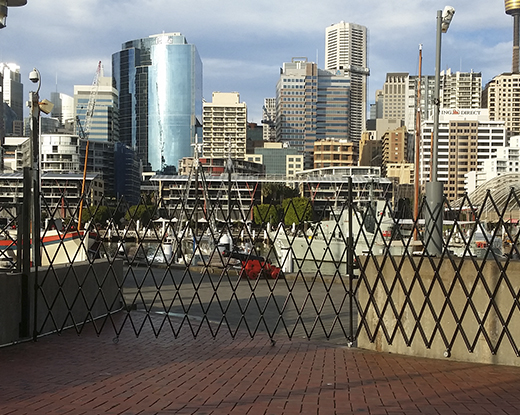

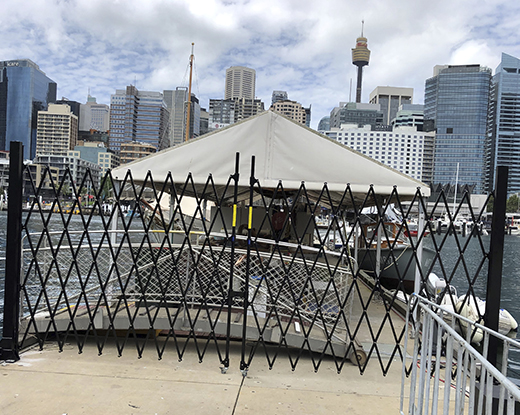

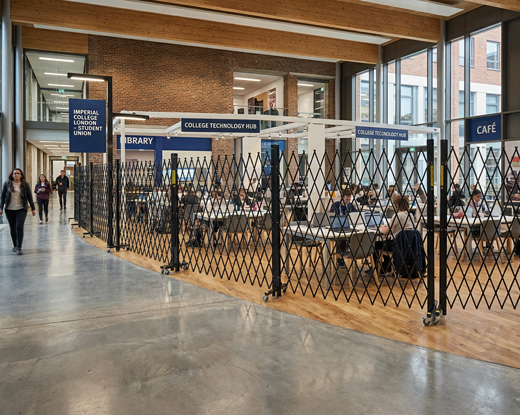

Trackless barriers are not limited to doorways and corridors. They can also be used in larger open spaces to create protected or restricted zones around maintenance work, hazards, temporary storage, cleaning operations, service points or staff-only areas.

Because multiple sections can be linked together and arranged at angles, enclosed shapes, corner layouts and ring-fenced protected zones can be created within a much larger open-plan environment. This is one of the strongest functional advantages of the system.

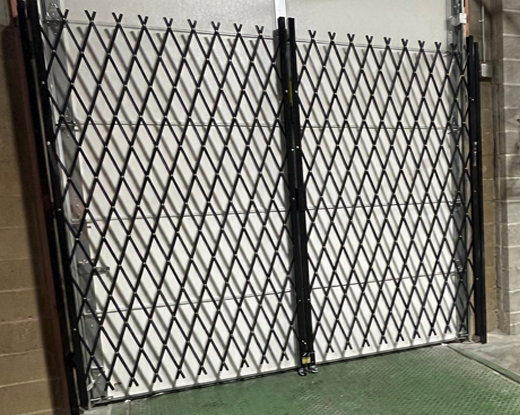

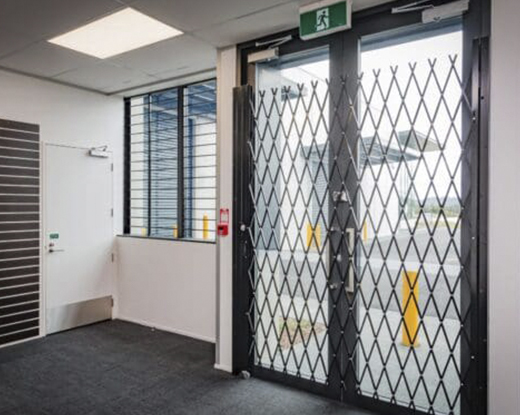

This is the most common arrangement. One end is fixed to a wall, column or other secure structure, while the leading edge pulls out on a wheeled support post and locks into a receiving point on the opposite side. This configuration is ideal for shop entrances, internal corridors and openings between two solid structures.

A fixed-end barrier does not always have to close in one straight line. With the fixed point acting as a pivot, the leading edge can move through a wide arc, making it possible to close off different routes from one barrier depending on how the building is used.

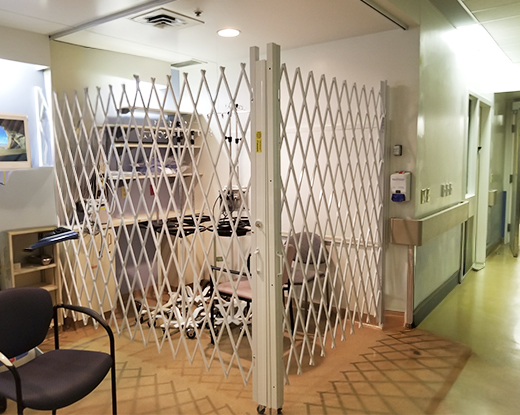

Trackless barriers are not limited to straight runs. Two sections can meet at 90 degrees using a corner post, allowing awkward layouts to be closed off more effectively. The same principle can be extended to create enclosed protected zones with multiple sides and corners.

This makes them useful around plant, spill areas, temporary works, shopfloor restrictions or any situation where an enclosed safety zone is needed rather than a single straight-line closure.

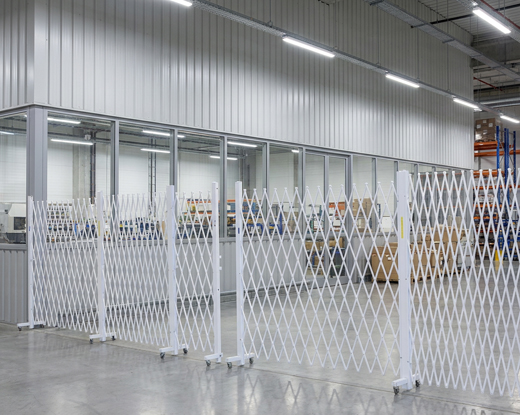

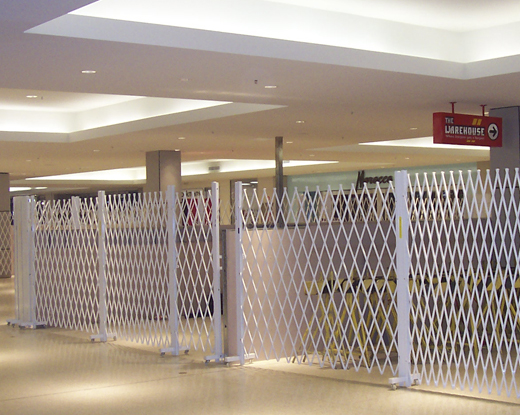

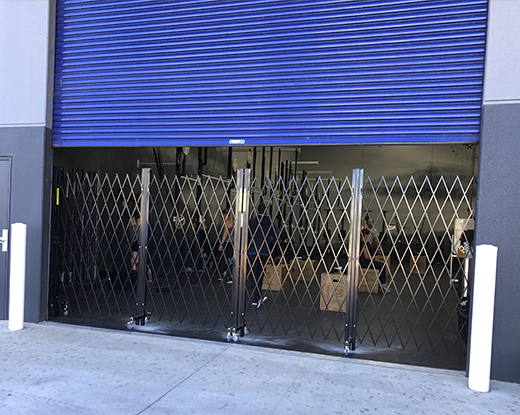

For larger openings, multiple barriers can be linked together to achieve almost any practical width. Each section connects to the next using support trolley systems, allowing a secure continuous line to run across wide commercial, industrial or public-facing spaces.

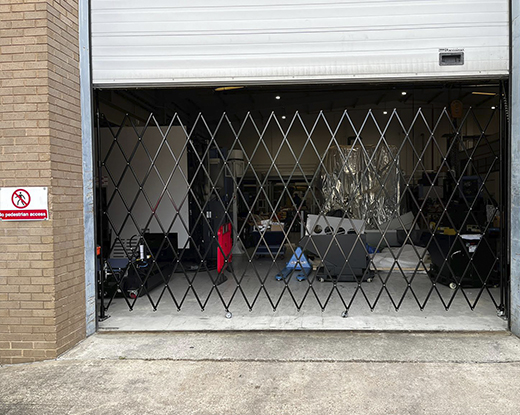

This is particularly valuable across forecourts, loading yards, shopping centre frontages, warehouse bays or other very wide openings that exceed the practical span of a single unit.

Samson Doors offers a wide choice of standard size trackless barriers for common applications, with bespoke options available for more unusual widths, heights and layouts. Standard sizes are available for many common applications, while made-to-measure versions can also be supplied.

Typical steel units are based around nominal lengths of 1 metre, 2 metres and 3 metres, with extended widths per unit around 3.5 metres and a typical finished height around 1.57 metres. Aluminium versions can cover a wider span, often from around 1 metre up to 10 metres made to measure, with typical finished heights around 1.2 metres and 1.8 metres.

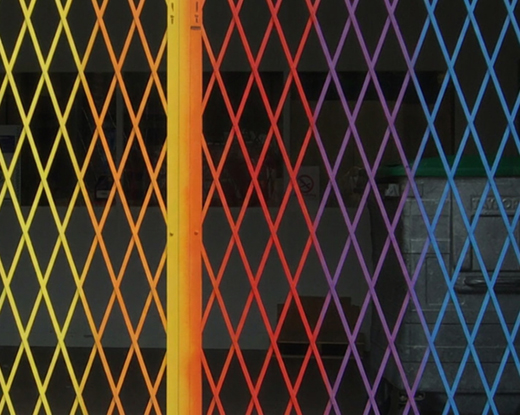

Standard finishes are usually powder coated, with white and black being the most common stock options for retail and commercial settings. For warehouses, forecourts and more industrial environments, high-visibility colour combinations can also be useful where the barrier needs to read clearly as a hazard or control line.

Custom colours can be specified where the barrier needs to suit a branded fit-out, a heritage setting or a project where standard finishes would be visually intrusive.
For external or coastal installations, additional treatment may be appropriate depending on the exposure and material selected.

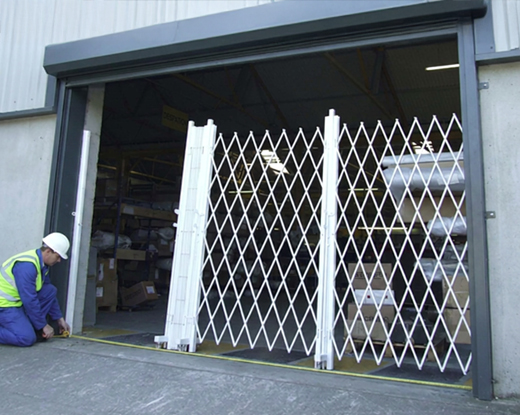

When specifying a trackless expanding barrier, a few practical factors matter:

• Opening width and height.
• Whether the barrier is for internal or external use.
• Whether it will be moved frequently or stay in one location.
• Whether there is a suitable wall, post or structure for fixing and locking.
• Whether a straight run, corner layout or enclosed zone is required.
• Whether visibility through the barrier is an advantage or whether privacy is needed instead.
• Where the barrier will stack when open.
• Whether a lightweight aluminium model or a stronger galvanised steel model is the better fit.
