Why Choose Hormann Sectional Doors for Your UK Building?

1. Built for UK Regulations & Environments

• Fully compliant with UKCA/CE marking.
• High resistance to wind load, driving rain, and temperature swings, ideal for UK coastlines, industrial estates, and inland sites.
• Supports local building regulations, insurance requirements, and safety codes.

2. Maximised Space & Simple Logistics

• Vertical opening means no loss of space in front or behind your door.
• Perfect for tight access roads, short delivery bays, and maximising internal square footage.

3. Outstanding Security

• High-strength steel and aluminium panels resist forced entry.
• Anti-lift equipment, deep rails, and optional keypad/access integration for secure, monitored entry.
• Suitable for protecting valuable inventory, machinery, and sensitive work zones.

4. Energy Savings & Environmental Responsibility

• Insulated panel technology reduces heat loss and helps control condensation.
• The available 42 mm and 67 mm PU panels and ThermoFrame system can dramatically cut heating bills, proven U-values as low as 0.51 W/m²K.
• Options for CO₂-neutral manufacturing and Environmental Product Declarations.

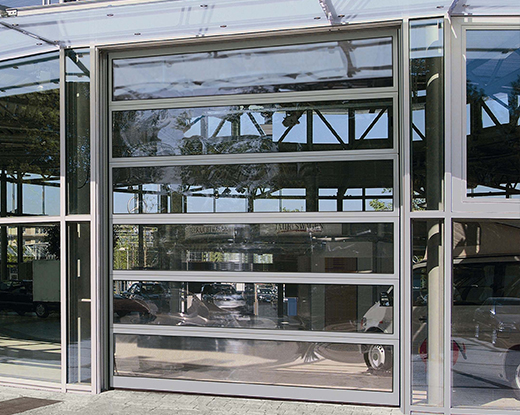

5. Light, Vision & Aesthetics

• Multiple glazing styles deliver daylight and a modern appearance without sacrificing security.
• ALR F42/67 and Vitraplan ranges offer clear, tough glazing, ideal for showrooms, dealerships, and workshops.

6. Flexible Operation & User Experience

• Whisper-quiet WA series operators with soft-start/stop features extend lifespan and boost safety.
• High-speed variants are available for busy distribution/logistics.
• Remote, keypad, and smart-enabled operation options available for integration with site management systems.
• Award-winning emergency stop, obstacle detection, and self-monitoring safety systems as standard.

7. Flexible Installation for All Building Types

• Multiple tracking configurations: low headroom, vertical lift, high lift, angled tracking to fit almost any UK industrial or commercial build.
• Space efficient behind lintel fitting and optional wicket doors for convenient access.

High Insulation Benefits

SPU 67 Thermo: Maximum Energy Efficiency

For projects demanding the highest levels of thermal performance, the SPU 67 Thermo represents Hörmann's flagship insulated steel sectional door. This model incorporates advanced insulation technology to deliver exceptional energy savings, making it ideal for temperature-sensitive environments and businesses focused on reducing carbon footprint and operating costs.

Key Features of the SPU 67 Thermo:

1. Superior Insulation – Industry-Leading U-Values

• 67 mm thick double-skinned steel panels filled with high-density CFC-free polyurethane foam.
• U-value as low as 0.51 W/m²K (for a 5,000 × 5,000 mm door) among the best thermal performance available for industrial sectional doors.
• Thermally broken design: Special thermal break profiles in the frame and panel construction eliminate cold bridges, preventing heat loss at connection points.
• ThermoFrame technology (optional upgrade) improves overall insulation by up to 36%, further reducing energy consumption.

2. Significant Energy and Cost Savings

• Dramatically reduces heat loss in heated or climate-controlled buildings such as cold storage facilities, food production areas, pharmaceutical warehouses, and logistics hubs.
• Lower heating bills, especially critical for large door openings where heat loss can be substantial.
• Helps maintain stable internal temperatures, reducing strain on HVAC systems and extending equipment lifespan.
• Supports businesses in meeting UK building energy regulations (Part L) and environmental sustainability targets.

3. Enhanced Acoustic Performance

• Sound insulation: Rw ≈ 25 dB – reduces external noise intrusion, important for sites near busy roads, airports, or residential areas.
• Quieter internal working environments improve employee comfort and productivity.

4. Condensation Control and Climate Stability

• Thick insulation minimizes temperature differential between door surfaces and ambient air, significantly reducing condensation risk.
• Essential for protecting stored goods, preventing mould/mildew, and maintaining hygiene standards in food, medical, and cleanroom applications.

5. Robust Construction for Demanding Environments

• Wind load class: up to 4 – engineered for stability and safety in exposed UK locations, including coastal and high-altitude sites.
• High-strength galvanised steel construction with corrosion-resistant coatings ensures long service life in challenging conditions.
• Maximum size: 10,000 × 7,500 mm (without wicket door); 7,000 × 7,500 mm (with wicket door) – suitable for the largest industrial and logistics openings.

6. Ideal Applications for SPU 67 Thermo:

• Cold storage and refrigerated warehouses: Maintains temperature integrity, reduces energy costs, and supports food safety compliance.
• Distribution and logistics centres: High frequency use with minimal heat loss during loading/unloading.
• Manufacturing facilities: Temperature sensitive production processes, cleanrooms, and pharmaceutical manufacturing.
• Energy conscious retrofits: Upgrading older doors to meet modern energy efficiency standards and reduce carbon emissions.
• Public sector and institutional buildings: Schools, hospitals, government facilities where energy performance and sustainability are priorities.

7. Long-Term Value

• 10-year spare parts availability guarantees long-term support and minimal lifecycle costs.
• Durable construction and high quality materials mean fewer repairs and extended door lifespan.
• Compliance with Environmental Product Declarations (EPDs) and options for CO₂-neutral production align with corporate sustainability goals.

Adaptable Installation

Whether you have limited headroom or require special configurations, the sectional door is very versatile indeed. Many people think it will clutter up their internal space, but properly thought out and specified, the door tracking can follow your ceiling lines and not interfere at all with general internal space.

• Low headroom track systems where internal headroom is an issue
• High lift, angled tracking, vertical lifting and other configurations for the tracking and door path of travel internally
• Behind lintel fitting options

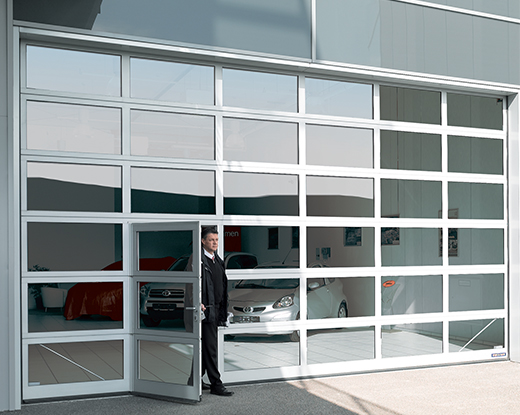

• Wicket doors with trip free thresholds for pedestrian access without opening the main door, ideal for high traffic buildings with pedestrian movement

Electric Motor Options and Advanced Control Systems

Hörmann industrial sectional doors are available with a comprehensive range of electric operators and sophisticated control systems designed for performance, safety, and seamless integration into your facility operations.

WA Series Operators – Proven Power and Reliability

The Hörmann WA (Wall-mounted Automatic) operator range provides robust, efficient automation for industrial sectional doors up to 20 m² in size. Key models include:

• WA 300 S4 / WA 300 S5: Designed for doors up to 20 m², featuring a powerful three-phase motor with integrated soft start and soft stop technology. Ideal for standard industrial and commercial applications where reliability and smooth operation are essential.
• WA 400 S4 / WA 400 S5: Enhanced capacity for larger or more frequently used doors. This operator supports high frequency daily cycles and offers adjustable speed and force settings for optimal performance.
• WA 500: Premium operator designed for the most demanding applications, including high-speed, heavy-duty, and high frequency environments. Supports opening speeds up to 1 m/s with Series 60 high-speed doors, perfect for logistics centres and distribution hubs where time efficiency is critical.

Key Features of WA Operators:

• Soft-Start and Soft-Stop Technology: Reduces mechanical stress, extends door lifespan, minimizes noise, and enhances user comfort.
• Emergency Manual Operation: Quick-release mechanism allows manual operation during power failure.
• Self-Monitoring Safety Features: Continuously monitors door movement and force, stopping or reversing automatically if obstructions are detected.
• Long Service Life: Built with high quality German engineering for minimal maintenance and maximum uptime.
• Extended Warranty Options: Available with Hörmann service agreements for added peace of mind.

Control Units – Intelligent, Programmable, Connected

Hörmann sectional doors can be paired with advanced digital control units that offer flexibility, diagnostics, and integration with building management systems (BMS):

A445 Control Unit:

• Digital control with clear diagnostic display for quick fault identification.
• Programmable opening/closing speeds, hold-open times, and partial opening positions.
• Compatible with various access control devices: push buttons, key switches, remote transmitters, and more.
• Integrated safety inputs for photocells, safety edges, and emergency stop buttons.
• Supports connection to fire alarm systems for automatic opening in emergencies.

A460 Control Unit (Advanced):

• Enhanced diagnostics with maintenance alerts and cycle counters.
• Multi-door management for sites with several sectional doors.
• Ethernet and BMS connectivity for centralised monitoring and control.
• User access logs for security auditing.
• Programmable scheduling: open/close doors at set times, ideal for unmanned facilities.

BiSecur and BlueSecur Radio Technology:

• BiSecur: Hörmann's encrypted 868 MHz radio system for secure, interference-free remote control. Supports handheld transmitters, wall mounted switches, and vehicle-mounted remotes.
• BlueSecur: Bluetooth enabled operation via smartphone app, convenient for site managers and mobile personnel.

Safety and Compliance – Market Leading Standards

All Hörmann electric operators and control systems are engineered to meet or exceed EN 13241-1 and EN 12453 safety standards:

• Self Monitoring Closing Edges: Pressure sensitive edges detect obstructions and reverse door movement instantly.
• Photocell Integration: Infrared beam sensors across the door opening prevent closing when objects or people are detected.
• Emergency Stop and Manual Release: Clearly marked controls for immediate operator shutdown and manual door operation.
• Force Limitation and Obstacle Detection: Automatic monitoring of motor force ensures the door stops or reverses if unexpected resistance is encountered.
• Annual Safety Inspections: Hörmann systems support compliance with UK Health & Safety Executive (HSE) requirements for powered door maintenance.

Access Control and Smart Integration

Hörmann sectional doors can be integrated with a wide range of access control and site management systems:

• Keypad Entry Systems: Wired or wireless keypads for PIN controlled access.
• Proximity Card and Fob Readers: RFID and NFC-compatible for secure staff and contractor entry.
• Vehicle Loop Detectors: Induction loops trigger automatic opening when vehicles approach.
• BMS and SCADA Integration: Connect doors to building automation for centralised monitoring, scheduling, and alarm integration.
• Remote Monitoring and Alerts: Receive notifications for faults, forced entry attempts, or maintenance needs via email or SMS.

Customisation for Your Operations

Every Hörmann electric system can be tailored to your specific needs:

• Adjustable opening/closing speeds
• Partial opening settings (e.g., pedestrian height for ventilation or access)
• Hold open timers
• Sequential door control for airlocks or security zones
• Integration with traffic lights, alarm systems, and loading bay equipment

Full Model Range with Technical Specs

SPU F42 (Steel, 42 mm PU)

• Panel heights: 375, 500, 625, 750 mm
• Max size: 8000 × 7500 mm (w × h)
• U-value approx. 1.0 W/m²K, Rw ≈ 25 dB
• Wind load class 3; air class 2 - 4; water class 3 (70 Pa)
• Wicket door options; glazing inserts; finishes: Stucco or Micrograin

SPU 67 Thermo (Steel, 67 mm PU + thermal break)

• U-value down to 0.51 W/m²K (5000 × 5000 mm door)
• Wind load class up to 4; acoustic Rw ≈ 25 dB
• Max size: 10000 × 7500 mm without wicket, 7000 × 7500 mm with wicket

APU F42 (Aluminium with steel base, 42 mm)

• U-value approx. 2.4–3.6 W/m²K (door 5000 × 5000 mm), improved with ThermoFrame
• Wind load class 2–4; air class 1–2; sound Rw ≈ 23 dB
• Max width 8 000 mm; height 7,500 mm without wicket, 7,000 mm with wicket

APU 67 Thermo (Aluminium with steel base, 67 mm + thermal break)

• U-value approx. 1.5–2.8 W/m²K; sound Rw ≈ 23 dB
• Max width 10,000 mm without wicket; 7,000 mm with wicket; height 7,500 mm

ALR F42 (Fully glazed aluminium, 42 mm)

• U-value approx. 3.0–3.6 W/m²K; sound Rw ≈ 23 dB
• Max width 8000 mm; height 7500 mm without wicket, 7000 mm with wicket

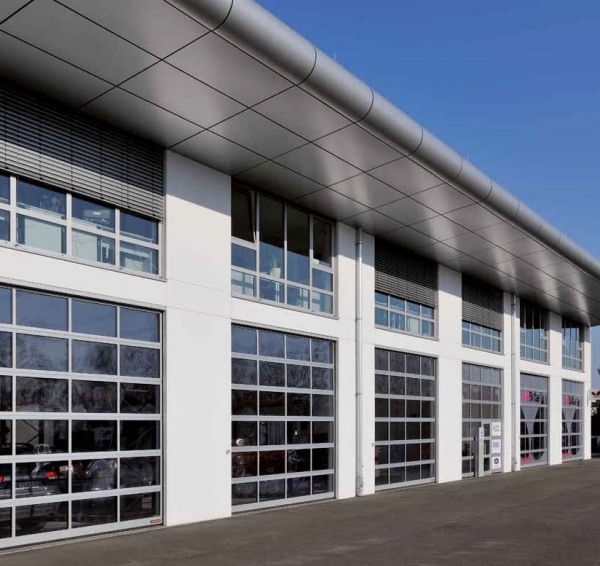

ALR 67 Thermo (Fully glazed aluminium, 67 mm + thermal break)

• U-value approx. 2.1–3.0 W/m²K; acoustic Rw ≈ 23–30 dB
• Max width 10000 mm (without wicket), 5500 mm (with wicket); max height 7500 mm

ALR F42 Vitraplan (Special fully glazed aluminium)

• 42 mm door leaf with flush-fit Duratec glazing mounted on exterior surface
• Clear synthetic glazing: 26 mm double pane + 4 mm external synthetic pane
• Max size: 6000 × 7500 mm; acoustic Rw ≈ 23 dB; U-values similar to ALR F42
• Profiles and glazing in RAL 9017 grey or RAL 9005 black; ceiling-mounted WA 400 operator with A445 control

Specialist Guidance and Long Term Support from Samson Doors

• Free technical site surveys across the UK, get expert advice for your specific application.
• Full aftersales support, including 10 year spare parts availability.
• Installation and maintenance by certified professionals.

Hörmann Sectional Door Models Comparison Table
