Summary of Features and Benefits:
- Manufactured using high grade steel for the best overall strength and longevity
- 230v sliding electric gate motor - offering 100% duty cycle
- Opening speeds of up to 9m/min
- Finished with a protective coating to withstand harsh weather conditions and prevent rust
- Equipped with advanced locking mechanisms to provide maximum security
- Safety sensors to detect obstructions and halt operation to prevent accidents - Fully compliant with UK regulations on automated gates
- Available in a range of colours to match any fencing system
- Enhanced security - protects your property with robust, tamper-proof construction and reliable locking mechanisms
- The cantilever mechanism provides zero ground contact, minimising overall maintenance and ensuring long-term performance and reliability
- Automated operation and smart technology integrations make access control user-friendly
- 2-year manufacturers warranty

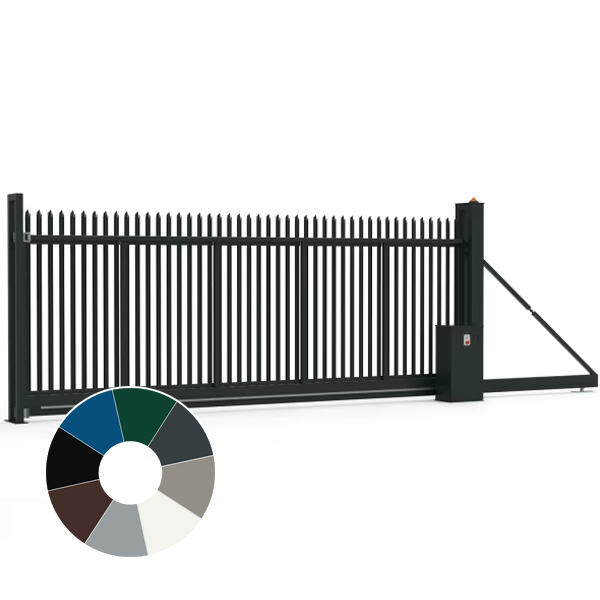

Automated gate for access control and security for industrial and commercial premises, or even domestic driveways. With the 100% duty cycle rating these gates can operate all day long so are perfect for any high volume traffic entrance.
Width 8.5m - 12.0m
Height 1.8m - 2.4m
Material Galvanised Steel
Duty Cycle 100% Duty Cycle for Intensive Use
Finish Polyester Powder Coated
Box Section of Main Gate Frame 100 x 100mm (8.5m - 10m) 120mm x 120mm (10m - 12m)

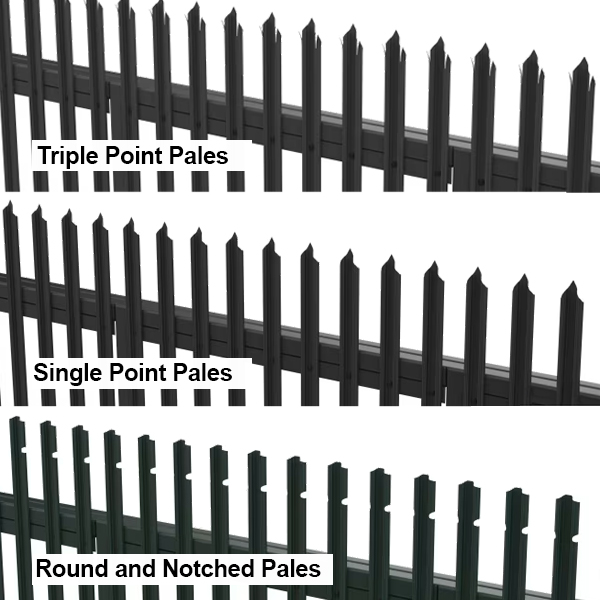

Infill Type Triple Pointed Pales, Round & Notched Pales or Single Point Pales
Manufacturers Warranty 2-Years
Standards Automated Gate Safety to BS EN 12453
The AGD 200 Automated Palisade Cantilever Gate is supplied with the equipment as listed below.
Gear Rack [Fitted]
Cantilever Carriages x 2 no.
Bolt Down End Catcher Post
Motor Cabinet & Rear Support Post
Top Support Roller System
Heavy Duty Sliding Gate Motor With Built-In Control Panel
Flashing Light
Dual Height Photocells
Key-Operated Switch With Emergency Stop Button
Category 3 Safety Edges x 6 no.
Remote Control Transmitters/Fobs x 2 no.
Gate Mounted Safety Edge Transmission System
External RF Aerial
Galvanised standard to ISO 1461
Finish standard to EN 13438
Automated Gate Safety to EN 12453
Other options are available as well as multiple options for the automated gate control. Please email or call us for pricing and specifications.
We offer professional, on site installation for any of the AGD series of commercial sliding or folding gates and can provide additional services to ensure your security gate is installed to the highest possible standards. We also offer ongoing maintenance for the gates and of course many other products around your commercial site.
The cantilever gates are supplied and off loaded with a hi-ab truck and are relatively ‘plug and play’ in their construction once the ground and electrics are prepared properly.
The AGD 200 automated cantilever gate comes with a two-year manufacturers warranty. Wisniowski are the manufacturers and are an established high quality manufacturer for domestic and commercial door and gate systems in Europe.
