Summary of Features and Benefits:
- Manufactured using high grade steel for the best strength and longevity
- 230v sliding electric gate motor - offering 100% duty cycle. Beninca motors drives as standard with other brand options available if required such as FAAC, BFT and Roger Technology
- Opening speeds of up to 9m/min
- Finished with a protective coating to withstand harsh weather conditions and prevent rust
- Equipped with advanced locking mechanisms to provide maximum security
- Safety sensors to detect obstructions and halt operation to prevent accidents - Fully compliant with UK regulations on automated gates.
- Available in a range of colours to match any fencing system
- Enhanced security - protects your property with robust, tamper-proof construction and reliable locking mechanisms
- The cantilever mechanism provides zero ground contact, minimising overall maintenance and ensuring long-term performance and reliability
- Automated operation and smart technology integrations make access control user-friendly
- 2-year manufacturers warranty
Automated access control and security for industrial and commercial premises, or even large domestic driveways. With the 100% duty cycle rating these gates can operate all day long so are perfect for any high volume traffic entrance.
Suitable for Industrial buildings, Airports and Ports, Schools, Car Parks and Warehouse entrances providing total control of traffic and personnel access. Fencing to match available with all gate models offered by AGD.
Width 8.0m - 12m [11m and 12m are not available as the 1.2m and 2.4m Height]
Height 1.2m - 2.4m
Material Galvanised Steel
Duty Cycle 100% Duty Cycle for Intensive Use
Finish Polyester Powder Coated
Box Section of Main Gate Frame 100 x 100mm
Infill Type 25mm Vertical Bar
Manufacturers Warranty 2-Years
Standards Automated Gate Safety to BS EN 12453

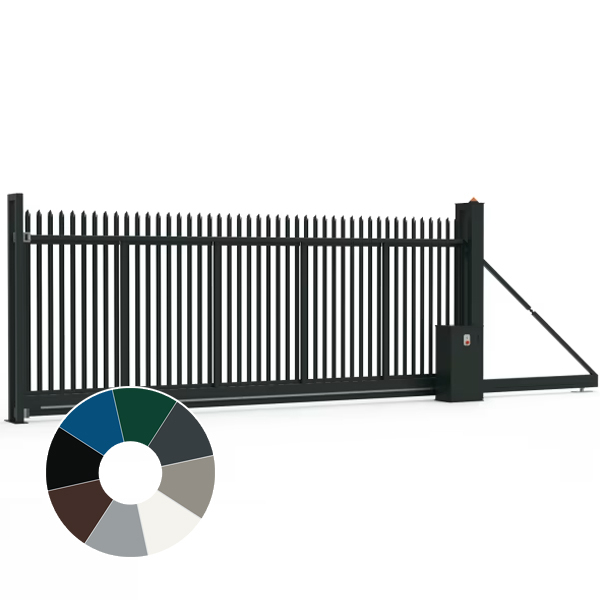

The AGD 200 Automated Vertical Bar Sliding Cantilever Gate is supplied with the equipment as listed below.
Gear Rack [Fitted]
Cantilever Carriages x 2 no.
Bolt Down End Catcher Post
Motor Cabinet & Rear Support Post
Top Support Roller System
Heavy Duty Sliding Gate Motor With Built-In Control Panel
Flashing Light
Dual Height Photocells
Key-Operated Switch With Emergency Stop Button
Category 3 Safety Edges x 6 no.
Remote Control Transmitters/Fobs x 2 no.
Gate Mounted Safety Edge Transmission System
External RF Aerial
• 200 x 155mm track beam,
• Triple guiding frame for manually-operated gates,
• Double lock post with a catcher,
• Back frame for balancing the leaf when open,
• Power-operated gate with a drive integrated with the post,
• Available with an external drive.
Other gate options are available as well as multiple options for the automated gate control. Please email or call us for pricing and specifications.
We offer professional, on site installation for any of the AGD series of commercial sliding or folding gates and can provide additional services to ensure your security gate is installed to the highest possible standards. We also offer ongoing maintenance for the gates and of course many other products around your commercial site.
The cantilever gates are supplied and off loaded with a hi-ab truck and are relatively ‘plug and play’ in their construction once the ground and electrics are prepared properly.
The AGD 200 sliding and automated cantilever gate comes with a two-year manufacturers warranty. Wisniowski are the manufacturers and are an established high quality manufacturer for domestic and commercial door and gate systems in Europe.
