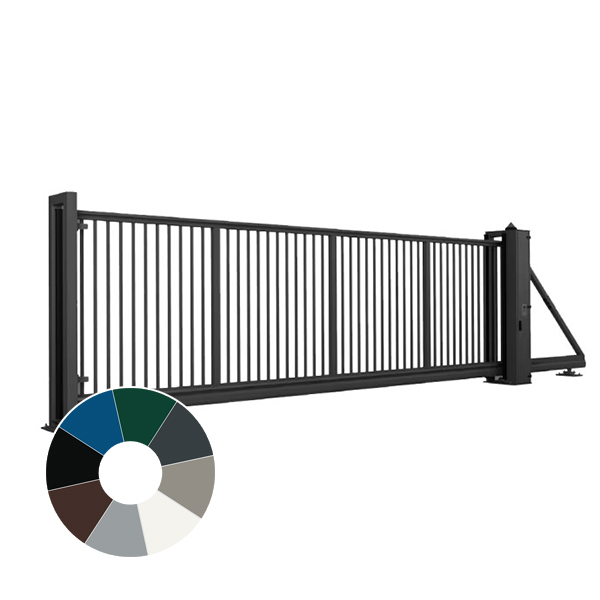

For the largest openings when access is minimal or power is not available on site.
Summary of Features and Benefits:
- Manufactured using high grade steel for the best strength and longevity
- Hot dipped galvanised steel with a protective coating to withstand harsh weather conditions and prevent rust
- Equipped with advanced locking mechanisms to provide maximum security
- Available in a range of colours to match any fencing system. Non standard colours available at extra cost and non painted galvanised only finish gates also available
- Enhanced security - protects your property with robust, tamper-proof construction and reliable locking mechanisms
- The cantilever mechanism provides zero ground contact, minimising overall maintenance and ensuring long-term performance and reliability
- These gates are also available as the AGD 95 for smaller openings with sizes up to 5.5m wide and the AGD 130 with widths up to 7.5 metres wide. Also available as an automated version
Access control and security for industrial and commercial premises with low usage or when there is no electricity available. Also perfect for domestic driveways with a higher specification than most domestic gates on the UK market.
Width 8.0m - 12.0m [11m and 12m are not available as the 1.2m or 2.4m Height]
Height 1.2m - 2.4m
Material Galvanised Steel
Finish Polyester Powder Coated
Box Section of Main Gate Frame 100 x 100mm
Infill Type 25mm Vertical Bar - Round or Square style
Manufacturers Warranty 2-Years
Standards Manual Gate Safety to BS EN 12604
The AGD 200 manual operated Vertical Bar Cantilever Gate is supplied with the equipment as listed below.
Cantilever Carriages x 2
Bolt Down End Catcher Post
Top Support Roller System
Other options are available for the various locking methods possible. Please email or call us for pricing and specifications.
We offer professional, on site installation for any of the AGD series of commercial sliding or folding gates and can provide additional services to ensure your security gate is installed to the highest possible standards. We also offer ongoing maintenance for the gates and of course many other products around your commercial site.
The cantilever gates are supplied and off loaded with a hi-ab truck and are relatively easy to install in their factory prepared construction, once the ground is prepared properly.
The AGD 200 manual cantilever gate comes with a two-year manufacturers warranty. Wisniowski are the manufacturers and are an established high quality manufacturer for domestic and commercial door and gate systems in Europe.
The ordering and opening width refers to the width inbetween the 2 support posts for these sliding gates.
When selecting your ideal sliding cantilever gate width, you must factor in the recommended run back space required for the gate leaf to open fully into. The Overall space required is the gate leaf plus the run back space all included.
AGD 200 GATE WIDTH RECOMMENDED RUN BACK SPACE OVERALL SPACE REQUIRED
8000mm 10600mm 18600mm
8500mm 11100mm 19600mm
9000mm 11900mm 20900mm
9500mm 12400mm 21900mm
10000mm 13000mm 23000mm
11000mm 14500mm 25500mm
12000mm 16000mm 28000mm
