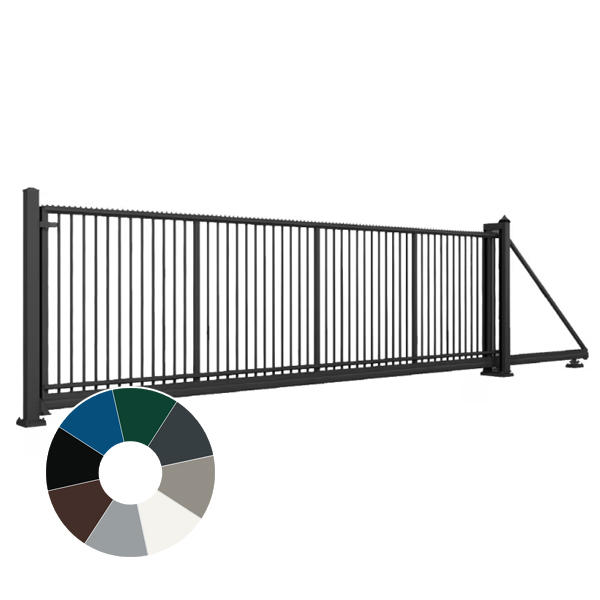

AGD 95 Automated Cantilever Security Gate - Vertical Bar Design
Automatic Sliding Gates
Max. Width: 5500mm Max Height: 2200mm
Material: Steel
Enquiry Form
Call Us
Email Us
Web Price: £7,243.00
(Excluding VAT and £8,691.60 Inc. VAT)
1
Ordering
Web Price:
£7,243.00
(Excluding VAT and
£8,691.60
Inc. VAT)
NEED HELP? Call us on 01933 448 850
or click here to connect via our Live Chat
- Description
- Application
- Specification
- Installation
- Warranty
- Measure
Description
The AGD 95 cantilever commercial security gate is a gate for small to medium sizes openings and offered between 3500mm and 5500mm wide and up to 2200mm in height
This vertical solid bar design model is a very popular gate for so many commercial premises, offering a sleek and modern appearance.
Available in a choice of width and height, made to the millimetre, and in a large selection of standard powdercoated RAL colours. If you don't see the exact colour you require, or if you would like a galvanised-only product, then please contact to discuss your requirements.
Please note that there is an additional charge for non standard finished colours.
The AGD Series of manual and automated cantilever commercial gates come with a 2-year manufacturer warranty as standard.
Cantilever Gates for smooth operation all the time…
The cantilever gate operating system ensures a very smooth sliding action without any form of tracking on the ground, making it perfect for so many applications where level ground isn't possible, or there are forklifts or other vehicles passing through the entrance.
As long as you have sufficient space to one side the cantilever gate system is perfect for minimal disruption, open or closed.
This operation method is also very smooth and requires minimal maintenance.
As standard the AGD 95 is fitted with a heavy duty 230V electric motor drive to offer 100% duty cycle, no matter how often the gate is operated. An in built air cooling fan with an oil bath ensures there is no overheating or loss of performance.
Summary of Features and Benefits:
Manufactured using high grade steel for the best strength and longevity
230v sliding electric gate motor - offering 100% duty cycle.
Opening speeds of up to 9m/min
Finished with a protective coating to withstand harsh weather conditions and prevent rust
Equipped with advanced locking mechanisms to provide maximum security
Safety sensors to detect obstructions and halt operation to prevent accidents - Fully compliant with UK regulations on automated gates.
Available in a range of colours to match any fencing system.
Enhanced security - protects your property with robust, tamper-proof construction and reliable locking mechanisms
The cantilever mechanism provides zero ground contact, minimising overall maintenance and ensuring long-term performance and reliability
Automated operation and smart technology integrations make access control user-friendly
2-year manufacturers warranty.
These gates are also available as the AGD 130 with sizes up to 7.5m wide and the AGD 200 with widths up to a massive 12 metres wide. Also available as a manual operated version.
Application
Automated access control and security for industrial and commercial premises, or even domestic driveways. With the 100% duty cycle rating these gates can operate all day long so are perfect for any high volume traffic entrance.
Specification
Width 3.5m - 5.5m [5.5m is not available as the 2.2m Height]
Height 1.0m - 2.2m
Material Galvanised Steel
Duty Cycle 100% Duty Cycle for Intensive Use
Finish Polyester Powder Coated
Box Section of Main Gate Frame 60 x 60mm
Infill Type 25mm Vertical Bar
Manufacturers Warranty 2-Years
Standards Automated Gate Safety to BS EN 12453
The AGD 95 Automated Vertical Bar Cantilever Gate is supplied with the equipment as listed below.
Gear Rack [Fitted]
Cantilever Carriages
Bolt Down End Catcher Post
Motor Cabinet & Rear Support Post
Top Support Roller System
Heavy Duty Sliding Gate Motor With Built-In Control Panel
Flashing Light
Dual Height Photocells
Key-Operated Switch With Emergency Stop Button
Category 3 Safety Edges x 6no.
Remote Control Transmitters/Fobs x 2no.
Gate Mounted Safety Edge Transmission System
External RF Aerial
Other options are available as well as multiple options for the automated gate control. Please email or call us for pricing and specifications.
Installation
We offer professional, on site installation for any of the AGD series of commercial sliding or folding gates and can provide additional services to ensure your security gate is installed to the highest possible standards. We also offer ongoing maintenance for the gates and of course many other products around your commercial site.
The cantilever gates are supplied and off loaded with a hi-ab truck and are relatively ‘plug and play’ in their construction once the ground and electrics are prepared properly.
Warranty
The AGD 95 automated cantilever gate comes with a two-year manufacturers warranty. Wisniowski are the manufacturers and are an established high quality manufacturer for domestic and commercial door and gate systems in Europe.
Measure
When selecting your ideal sliding cantilever gate width, you must factor in the recommended run back space required for the gate leaf to open fully into. The Overall space required is the gate leaf plus the run back space all included.
AGD 95 GATE WIDTH RECOMMENDED RUN BACK SPACE OVERALL SPACE REQUIRED
3500mm 5200mm 8700mm
4000mm 5900mm 9900mm
4500mm 6600mm 11100mm
5000mm 7100mm 12100mm
5500mm 7800mm 13300mm
