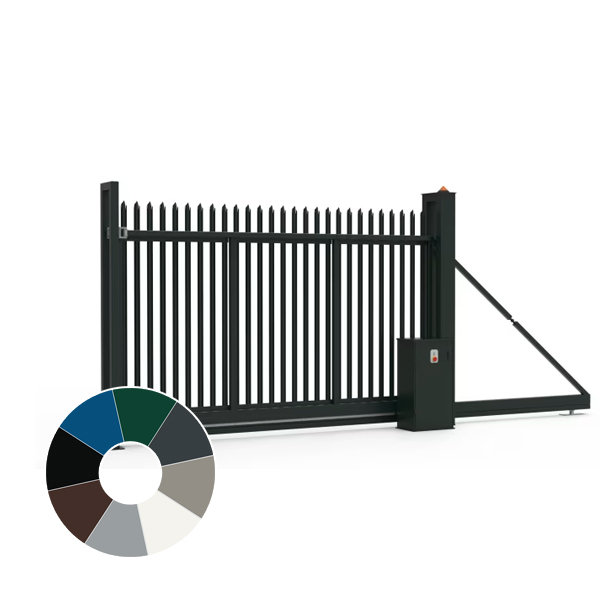

No power - no problem. Smooth, easy operation with this manually operated cantilever sliding gate system.
Summary of Features and Benefits:
- Manufactured using high grade steel for the best strength and longevity
- Finished with a protective coating to withstand harsh weather conditions and prevent rust
- Equipped with advanced locking mechanisms to provide maximum security
- Available in a range of colours to match any fencing system
- Enhanced security - protects your property with robust, tamper-proof construction and reliable locking mechanisms
- The cantilever mechanism provides zero ground contact, minimising overall maintenance and ensuring long-term performance and reliability
- These gates are also available as the AGD 130 with sizes up to 7.5m wide and the AGD 200 with widths up to a massive 12 metres wide. Also available as an automated version
Access control and security for industrial and commercial premises with low usage or when there is no electricity available. Also perfect for domestic driveways with a higher specification than most domestic gates on the UK market.
Width 3.5m - 5.0m
Height 1.8m - 2.4m
Material Galvanised Steel
Finish Polyester Powder Coated
Box Section - Main Gate Frame 60 x 60mm

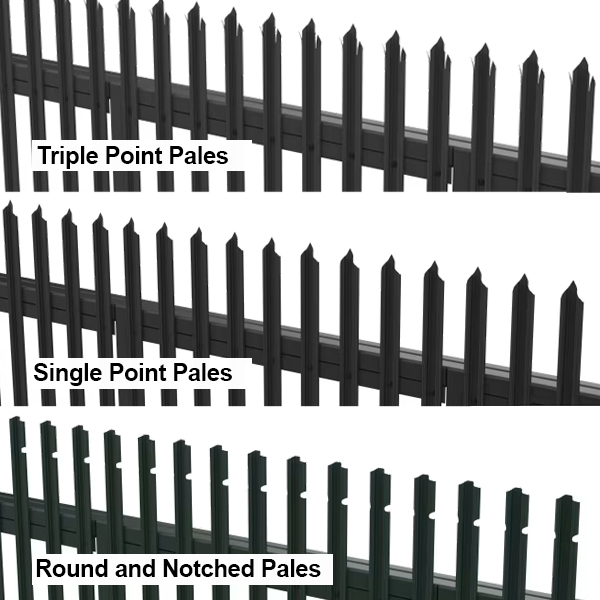

Infill Type Triple Pointed Pales, Round & Notched Pales or Single Point Pales
Palisade Pale Style Triple Point [Standard]
Manufacturers Warranty 2-Years
Standards Manual Gate Safety to BS EN 12604
The AGD 95 manual operated Palisade Design Cantilever Gate is supplied with the equipment as listed below.
Palisade Gate Leaf x 1
Cantilever Carriages x 1
Ground Anchor Bolts x 1
Bolt Down End Catcher Post x 1
Top Support Roller System x 1
Other options are available for the various locking methods possible. Please email or call us for pricing and specifications.
We offer professional, on site installation for any of the AGD series of commercial sliding or folding gates and can provide additional services to ensure your security gate is installed to the highest possible standards. We also offer ongoing maintenance for the gates and of course many other products around your commercial site.
The cantilever gates are supplied and off loaded with a hi-ab truck and are relatively easy to install in their factory prepared construction, once the ground is prepared properly.
The AGD 95 cantilever gate comes with a two-year manufacturers warranty. Wisniowski are the manufacturers and are an established high quality manufacturer for domestic and commercial door and gate systems in Europe.
