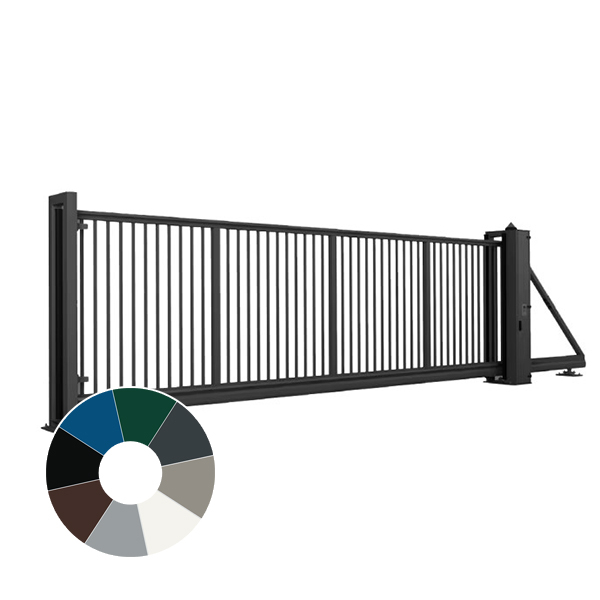

The AGD 95 cantilever manual operated security gate is a gate for low usage, small to medium sized openings and offered between 3500mm and 5500mm wide and up to 2200mm in height
Summary of Features and Benefits:
- Manufactured using high grade steel for the best strength and longevity
- Finished with a protective coating to withstand harsh weather conditions and prevent rust
- Equipped with advanced locking mechanisms to provide maximum security
- Available in a range of colours to match any fencing system
- Enhanced security - protects your property with robust, tamper-proof construction and reliable locking mechanisms
- The cantilever mechanism provides zero ground contact, minimising overall maintenance and ensuring long-term performance and reliability
- These gates are also available as the AGD 130 with sizes up to 7.5m wide and the AGD 200 with widths up to a massive 12 metres wide. Also available as an automated version
Access control and security for industrial and commercial premises with low usage or when there is no electricity available. Also perfect for domestic driveways with a higher specification than most domestic gates on the UK market.
Width 3.5m - 5.5m [5.5m is not available as the 2.2m Height]
Height 1.0m - 2.2m
Material Galvanised Steel
Finish Polyester Powder Coated
Box Section of Main Gate Frame 60 x 60mm
Infill Type 25mm Vertical Bar
Manufacturers Warranty 2-Years
Standards Manual Gate Safety to BS EN 12604
The AGD 95 manual operated Vertical Bar Cantilever Gate is supplied with the equipment as listed below.
Cantilever Carriages x 2
Bolt Down End Catcher Post
Top Support Roller System
Other options are available for the various locking methods possible. Please email or call us for pricing and specifications.
We offer professional, on site installation for any of the AGD series of commercial sliding or folding gates and can provide additional services to ensure your security gate is installed to the highest possible standards. We also offer ongoing maintenance for the gates and of course many other products around your commercial site.
The cantilever gates are supplied and off loaded with a hi-ab truck and are relatively easy to install in their factory prepared construction, once the ground is prepared properly.
The AGD 95 manual cantilever gate comes with a two-year manufacturers warranty. Wisniowski are the manufacturers and are an established high quality manufacturer for domestic and commercial door and gate systems in Europe.
When selecting your ideal sliding cantilever gate width, you must factor in the recommended run back space required for the gate leaf to open fully into. The Overall space required is the gate leaf plus the run back space all included.
