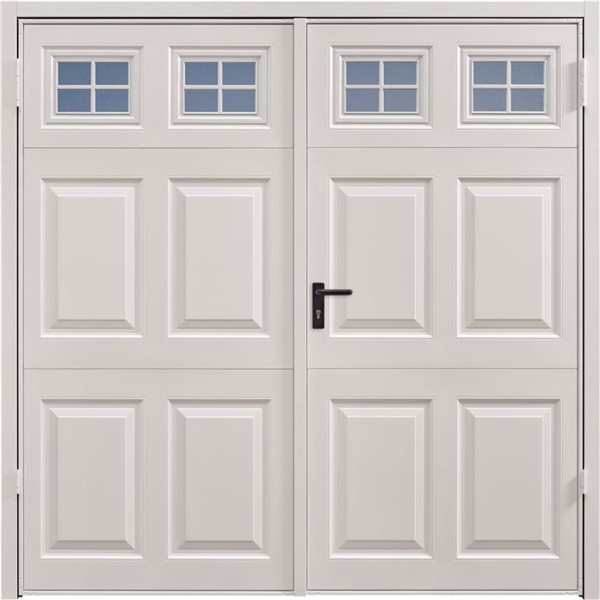

Garador Beaumont with Windows Steel Side-Hinged Garage Door – Standard Sizes up to 8ft Wide

Beaumont Styling with Glazed Detail

The Garador Beaumont with Windows side-hinged steel garage door adds a glazed top section to the classic Beaumont panel layout, bringing extra character and natural light to standard single garage openings. The carefully proportioned window apertures sit above the main panelled area, creating an attractive, well-balanced design that works particularly well on traditional and more upmarket properties.

The glazing not only enhances visual appeal from the outside but also helps introduce borrowed daylight into the garage interior. This is especially useful where the garage is used for hobbies, storage or as a utility space, and where natural light makes day-to-day use more pleasant.

Ideal for Standard Single Garage Openings

This Beaumont with Windows model is supplied in standard sizes up to 8ft wide, making it well suited to the majority of single garage openings commonly found on UK homes. When the existing structural opening matches, or can be prepared to, a standard size, installation is straightforward and lead times are typically shorter than made-to-measure alternatives.

For homeowners upgrading from a plain, older door, this glazed Beaumont variant provides a clear uplift in appearance and usability. It helps integrate the garage more closely with the rest of the property frontage, especially where other doors or windows also feature glazing.

Practical Side-Hinged Operation

With side-hinged operation, everyday access is simple and convenient. One leaf can be opened quickly for pedestrian use, allowing easy entry to collect tools, bikes or stored items. When larger access is required for a vehicle or bulky equipment, both leaves open outwards to provide the full clear width of the opening.

As with other side-hinged doors, there are no internal tracks or overhead mechanisms to obstruct floor or ceiling space. The outward-opening design also helps keep the garage interior clear of falling debris from the outside when the doors are opened.

Single-Skin Steel Construction with Glazing

The Beaumont with Windows doorset is manufactured from galvanised steel leaves, incorporating glazed apertures in the top section, and mounted within a matching steel outer frame. The single-skin construction keeps the weight of the doors manageable for manual operation, while still providing a solid feel and reassuring robustness in everyday use. A factory-applied powder coated finish adds further protection against the elements.

The glazing is designed to complement the overall look of the door while providing practical benefits inside the garage. Combined with the durable steel construction, it delivers a door that is both attractive and functional for regular domestic use.

Secure, User-Friendly Hardware

The hardware configuration follows the same proven layout as other Garador side-hinged models. The main leaf is fitted with a key-operated lock and internal handle, while the secondary leaf is secured using internal shoot bolts at the head and cill. Quality hinges support the door leaves and provide smooth, consistent movement.

This straightforward set-up is intuitive to use and provides a sensible level of everyday security for domestic garages and outbuildings. There is no reliance on electrical power, keeping operation simple and dependable at all times.

Factory Finished Colours to Match the Home

A selection of standard factory painted colours is available, allowing the Beaumont with Windows door to coordinate with existing windows, entrance doors and other external joinery. The tough finish on the galvanised steel helps to maintain its appearance over time with only modest maintenance.

For homeowners wanting a classic panelled side-hinged door with added glazing and visual interest, the Garador Beaumont with Windows standard size model offers a strong combination of style, practicality and value.

Key Features

• Side-hinged steel garage door with glazed top section in standard sizes up to 8ft wide.
• Beaumont pressed panel design with windows for added character and natural light.
• Single-skin galvanised steel construction with factory-applied powder coated finish.
• Side-hinged operation with one leaf for quick pedestrian access and both leaves for full-width entry.
• Key-operated lock and internal handle on the main leaf, with internal shoot bolts on the secondary leaf.
• Supplied with a matching steel outer frame for a stable, easy-to-install doorset.
• Available in a range of standard factory colours to complement existing external features.

steel side hinged garage doors with 4 windows across the top for natural light. For use as domestic garage doors.

Garador Beaumont with Windows - Standard Sizes up to 8ft Wide

BS 13241 Compliant - All Garador garage doors comply with the latest European safety standards.

Construction: Single-skin galvanised steel
Design: Multi-panel configuration with intricate raised panels and glazed window sections in upper panels
Material: Galvanised steel with powder coat finish
Windows: Glazed panels in upper section for natural light
Maximum Width: Up to 8ft (2419mm internal frame opening)
Maximum Height: Up to 7'0" (2136mm internal frame opening)
Frame: Steel sub fixing frame fitted as standard
Locking: High security lock with fixed knob ensuring security every time the door is closed
Handle: Internal handle providing easy operation
Hinges: 3 steel hinges securely fixed to each frame and door leaf ensuring reliable function
Centre Style: Aluminium centre style providing a seal between the leaves and prevents forced entry to the locking system
Weatherproofing: Weatherstrips around 3 sides of the door to help prevent draughts
Finish: Standard powdercoat factory finish - white inside and out

Colour Options: 16 RAL colours available:

• Traffic White (RAL 9016) - Standard
• Light Ivory (RAL 1015)
• Ruby Red (RAL 3003)
• Signal Blue (RAL 5005)
• Jet Black (RAL 9005)
• Window Grey (RAL 7040)
• Agate Grey (RAL 7038)
• Basalt Grey (RAL 7012)
• Anthracite Grey (RAL 7016)
• Iron Grey (RAL 7011)
• Moss Green (RAL 6005)
• Fir Green (RAL 6009)
• Nut Brown (RAL 8011)
• Chocolate Brown (RAL 8017)
• Golden Oak
• Rosewood

Opening: Side-hinged (50/50 split configuration as standard, 1/3 - 2/3 split available as an option)
Compliance: BS 13241 European safety standard
Note: Garador Side Hinged Doors are only available as 1/3 - 2/3 split up to 2234mm overall frame width

Refer to sizing table below for all available standard sizes


Full installation details provided with every door purchased.
Doors are delivered with the steel sub frame and all hinges, doors stays and weatherstrips, etc factory fitted. Only the handle and locking cylinder is seperate.

To view the Garador Side Hinged Installation Instructions, please click here PDF >

GARADOR GARAGE DOOR WARRANTY

Warranty Period

The purchaser is granted a warranty covering the safe and reliable function of the Garador garage door for a period of 10 years* from the date of purchase The warranty period for replacement parts is 6 months or to the end of the current warranty period, which ever is longer. The door mechanism and steel frame (if applicable) is covered by the 10 year* warranty period

Requirements
Warranty claims are only applicable in the country where the garage door was purchased. The warranty only covers damage to the contract object. The fully completed warranty card together with the receipt of purchase correspondingly dated substantiates your right to claim under the warranty.

Performance
During the warranty period we undertake to rectify any and all defects to the Garador product which can be proved to be attributed to a material or manufacturing fault. We pledge at our discretion either to exchange the defective merchandise for faultless merchandise, repair it or allow a reduction in price. We do not accept costs for dismantling and installation nor for carriage. Replaced parts become property of Garador Ltd

The warranty does not cover damage caused through: -

normal wear and tear
improper installation
negligent care and maintenance
improper initial and subsequent operation
negligent or wanton destruction
external influences such as fire, water, salts, alkaline solutions, acids,
abnormal environmental Influences
mechanical damage through Improper transport and fitting
priming and other surface protection treatments
incorrect or too late applied surface protection treatments
repair by non-qualified persons
using non-Garador parts without the approval of the manufacturer
removal of the product number or making it unidentifiable
