The "SeceuroVision 800" security shutter features a robust extruded aluminium profile, making it an excellent choice for retail, office, and commercial environments. Designed to balance visibility with protection, this shutter provides up to 62% vision, allowing businesses to maintain an inviting display for window shoppers while ensuring premises remain secure.
Key Features:
- High Visibility & Airflow: Delivers up to 62% vision, ideal for high-street retail and conservation areas.
- Enhanced Weatherproofing: Can be fitted with optional clear polycarbonate glazing to provide weather protection without compromising visibility.
- Versatile Design: Compatible with solid profiles (like SeceuroShield 75) to create a tailored mix of security and vision.
- Strong Construction: Built from a single-walled extruded and punched aluminium slat for durability.
By offering a high level of transparency, the SeceuroVision 800 is a preferred solution for businesses seeking a secure yet open aesthetic that avoids the "closed-off" look of traditional solid shutters.
- Description
- Application
- Specification
- Installation
- Warranty
- Measure
SeceuroVision 800: Security with a Clear Advantage
The SeceuroVision 800 is a high-performance aluminium security shutter, designed to deliver robust security and protection without compromising visibility and light. Perfect for retail and commercial properties, its innovative see-through design is often required for high street and modern shopping center applications.
It is one of our range of security shutters which can also be described as security grilles with the open nature of the curtain, made to suit your requirments with the balnce and position of open slats used. Highlight a small area, or make the whole curtain with the vented slats, it is up to you.
It is available as a manual or electric operated security shutter with various control and locking methods to suit customers.
Key Features..Optimal Vision and Security
With up to 65% vision, the SeceuroVision 800 allows excellent product display even when the curtain is down and closed. This balance of visibility and security makes it an ideal choice for businesses that want to showcase their products 24/7, especially in the evening time.
Strong and Durable Construction
Constructed from single-walled, extruded, and punched aluminum slats, the shutter is strong, yet lightweight. Optional 1.5 mm polycarbonate inserts enhance both security and weather resistance for the curtain.
Versatile Applications
Suitable for retail, offices, bars, schools, arenas and kiosks where permanent visibility is desired. Integration with solid slats allows for partial visibility where required.
Customisable Design
The SeceuroVision 800 can be powder-coated to match any branding or architectural style. Standard colors include Brilliant White, Black, Cream and Brown, with a wide range of other options available. RAL or BS colours can be matched to suit.
Construction Details
The SeceuroVision 800 uses the UPH 250 guide rail. The UPH 250 is recommended for wider shutters with higher security requiment with 250mm, 300mm or 350mm box. It consists of extruded aluminium with an integral box section for reinforcement and to facilitate fixing. It also has a high density 4mm or 7mm pile brush for quiet and smooth operation. The dimensions are 90mm wide x 34mm deep. This guide rail on the SeceuroShield 60 is available in the stock colours of white, black, cream and brown.
FOR RETAIL USE

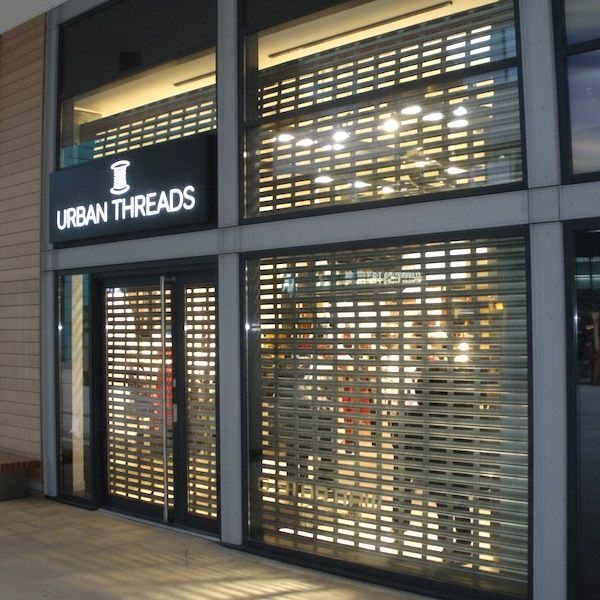

The SeceuroVision 800 can deliver up to 58.5% vision. This is ideal and almost a necessity for most retail outlets wishing to flaunt their assets whilst out of opening hours. Available for alternative use as both a bar and kiosk, it is the perfect shutter wherever permanent vision is required.
Curtain Slat
Made from single-walled extruded and punched aluminum slats. Solid slats are housed within the shutter box, with portions visible on a fully punched curtain.
The vision slat section is 150mm x 55mm and is available as either open or with a 1.5mm polycarbonate section insert to close the section off to air and access.
Bottom Slat
An extruded aluminum bottom slat with a rubber seal ensures a secure and tight closure.
Unique Applications
The SeceuroVision 800 is specifically designed to provide the highest levels of vision, airflow, and natural light transmission demanded by many local authorities for established high streets and modern shopping centres.
Where SeceuroVision 800 Excels
- Conservation areas and listed buildings: Planning authorities often require security solutions that maintain visual connectivity with the street when closed, making the 800's 62% vision ideal for preserving the character of heritage locations.
- High street retail: Shopfronts where window displays need to remain visible out of hours to maintain street vitality and encourage footfall during daytime trading.
- Bar, hotel, and hospitality serveries: Secure counter areas while maintaining visual supervision and customer interaction when partially deployed.
- Educational facilities: Schools, colleges, and gymnasiums requiring secure internal partitioning with maximum light transmission and visibility for supervision.
- Open-plan commercial spaces: Office receptions, atriums, and internal security zones where airflow and natural light must be maintained even when the shutter is lowered.
- Kiosks and concession units: Standalone retail pods in shopping centres or transport hubs where security is required without creating a completely closed, unwelcoming appearance.
For any application where maintaining visibility, ventilation, and an open aesthetic is as important as security, the SeceuroVision 800 delivers a robust yet visually unobtrusive solution.
Technical Specifications - SeceuroVision 800
The SeceuroVision 800 is a dedicated retail security shutter designed for maximum through-vision. Unlike the double-skinned SeceuroShield 38 range, the 800 model utilises a robust single-skin extruded aluminium profile. This larger 77mm slat allows for significantly larger punched apertures, delivering superior light transmission and visibility for high-street displays.
| Curtain Construction | Single skin extruded aluminium slat. (Distinct from the double-skinned foam-filled 77 or extruded 38 models). |
| Slat Dimensions | Nominally 77.3mm high |
| Vision Panels | Large 150mm x 55mm punched sections providing up to 62% vision. |
| Curtain Weight | 7.0 kg per m² (Punched) 9.25 kg per m² (Punched & Glazed with polycarbonate) 9.25 kg per m² (Solid / No Vision) |
| Standard Finishes | White, Black, Brown, and Cream as standard stock colours. (Full RAL powder coating available). |
| Shutter Box | Roll-formed aluminium two-piece assembly (top and bottom covers) with a 45° chamfered bottom box. Supplied with die-cast aluminium end plates. |
| Box Sizes | 250mm box (up to 2150mm clear opening height) 300mm box (up to 2900mm clear opening height) (Requires larger box headroom compared to the compact 38 model). |
| Guide Rails | UPH 250 (90mm wide) extruded aluminium guides with brush inserts. |
Installation Overview
The SeceuroVision 800 is designed for professional installation, capable of being fitted internally or externally in either a reveal (between the opening) or face-fixed (around the opening) configuration. Accurate surveying is critical for ensuring proper fit and operation.
| Fixing Substrate | Shutters must be fixed into a solid substrate (steelwork, masonry, or suitable timber). Fixing into hollow materials like plasterboard or Thermalite block is not recommended without appropriate structural reinforcement. |
| Guide Rail Fixing | Reveal Fix: Measure width at top, middle, and bottom; use the smallest dimension. Ensure walls are plumb. Face Fix: Measure the clear opening width and add the guide width (90mm x 2 for UPH 250) to determine the overall width. Ensure the surface is flat to avoid twisting the guides. |
| Shutter Box Fixing | End plates must be securely fixed through the pre-drilled holes. For heavier curtains (over 75kg), steel end plates are supplied and require substantial fixings (e.g., M10 or M12 bolts depending on substrate). Note: The full weight of the shutter is supported by the end plates. |
| Electrical Connection | Standard motors require a 13-amp fused spur. Installation must comply with BS 7671 (IEE Wiring Regulations). For safety, hold-to-run switches should be located in full view of the shutter. Remote control operation requires additional safety devices (e.g., photo cells or safety edge) to prevent entrapment. |
| Safety Brakes | An anti-drop safety brake is required for all manual or electric shutters where the risk of failure could cause injury (mandatory for most commercial doorways). This is typically fitted to the non-drive end of the axle. |
| Maintenance Access | The box design includes a removable bottom cover (chamfered at 45°) to allow access to the curtain and motor for future maintenance or repairs. |
SeceuroShield 800 Warranty Details
SeceuroShield products are backed by a parts-only warranty from SWS UK:
- 2 years for general product components.
- 5 years for motors and controls.
- 12 months for replacement electrical parts, or the remainder of the original warranty—whichever is longer.
This warranty applies only when the product is installed, maintained, and operated according to SWS UK guidelines.
What the Warranty Covers: SWS UK will repair or replace any part found to have a manufacturing defect during the warranty period. Labour costs and other associated expenses are not included.
What the Warranty Does Not Cover:
- Labour, call-out fees, transport, or other consequential costs.
- Cosmetic marks or blemishes not visible from 3 metres in natural light.
- Damage or faults caused by:
- Incorrect installation or failure to follow instructions.
- Poor or improper maintenance.
- Incorrect use or unauthorized modifications.
- Normal wear and tear, accidental or malicious damage.
- Impact damage, scratches, dents, or abrasions.
- Use of non-SWS UK parts or unauthorized repairs.
- Structural issues with mounting surfaces.
- Attempts to reduce operating clearances.
- External factors like extreme weather, fire, water, chemicals, or bird droppings.
- Electrical faults or surges in the customer’s power supply.
- Rust or corrosion for products installed within 500 metres of the sea or saltwater.
- Consumables such as fuses, light bulbs, or batteries.
- Any indirect, special, or consequential loss or damage.
Ordering dimensions are the Overall Width including the guides chosen x Overall Height including the hood size.
Please ensure when ordering for a face fix that you have included the guides and appropriate size shutter box depending on the shutter height (Click on the diagram below):
