The Garador traditional side hinged doors combine robust and reliable performance with simple personal access.

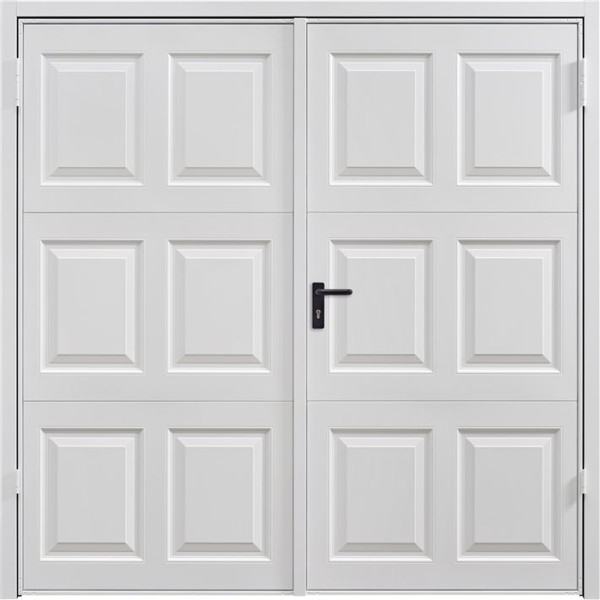

The Georgian is a 12 panelled pressed steel design and a 50/50 split.
Please Note: The Garador Side Hinged Doors are only available as 1/3 - 2/3 split up to 2234mm overall frame width.
Standard powdercoat factory finish is white inside and out. A steel sub fixing frame is factory fitted as standard and finished to the same colour as the door panels.
Choice of 16 Colour Options
Traffic White - RAL9016
Moss Green - RAL6005
Ruby Red - RAL3003
Signal Blue - RAL5005
Jet Black - RAL9005
Terra Brown - RAL8028
Steel Blue - RAL5011
Light Ivory - 1015
Pigeon Blue - RAL5014
Fir Green - RAL6009
Anthracite Grey - RAL7016
Stone Grey - RAL7030
Light Grey - RAL7035
Clay Brown - RAL8003
Window Grey - RAL7040
Chartwell Green - VS4800
Golden Brown
Burgundy Brown
For security these doors are fitted with a black nylon knob on the outside as standard meaning you always require the key to open the door. For convenience the option of an outside handle is available.
Side hinged doors come with equal sized door leaves with the right hand leaf leading as standard. Left hand leaf leading is available on request if required.
Domestic garage doors
BS 13241 Compliant - All Garador garage doors comply with the latest European safety standards.
> High security lock with fixed knob ensuring security every time the door is closed. Order Size Internal frame opening Overall steel frame size 6060 1810 x 1830 1930 x 1890 6660 1964 x 1830 2084 x 1890 6664 1964 x 1931 2084 x 1991 6666 1964 x 1981 2084 x 2041 6670 1964 x 2136 2084 x 2196 7060 2114 x 1830 2234 x 1890 7064 2114 x 1931 2234 x 1991 7066 2114 x 1981 2234 x 2041 7070 2114 x 2136 2234 x 2196 7564 2239 x 1931 2359 x 1991 7566 2239 x 1981 2359 x 2041 7570 2239 x 2136 2359 x 2196 7664 2264 x 1931 2384 x 1991 7666 2264 x 1981 2384 x 2041 7670 2264 x 2136 2384 x 2196 8064 2419 x 1931 2539 x 1991 8066 2419 x 1981 2539 x 2041 8070 2419 x 2136 2539 x 2196
> Internal handle providing easy operation.
> 3 steel hinges securely fixed to each frame and door leaf ensuring reliable function.
> Aluminium centre style providing a seal between the leaves and prevents forced entry to the locking system.
> Weatherstrips around 3 sides of the door to help prevent draughts.
To view further information on the Garador Side Hinged Doors, please click here PDF >
Width x Height
(mm x mm)
Width x Height
(mm x mm)
Full installation details provided with every door purchased.
Doors are delivered with the steel sub frame and all hinges, doors stays and weatherstrips, etc factory fitted. Only the handle and locking cylinder is seperate
To view the Garador Side Hinged Installation Instructions, please click here PDF >
GARADOR GARAGE DOOR WARRANTY
Warranty Period
The purchaser is granted a warranty covering the safe and reliable function of the Garador garage door for a period of 10 years* from the date of purchase The warranty period for replacement parts is 6 months or to the end of the current warranty period, which ever is longer. The door mechanism and steel frame (if applicable) is covered by the 10 year* warranty period
Requirements
Warranty claims are only applicable in the country where the garage door was purchased. The warranty only covers damage to the contract object. The fully completed warranty card together with the receipt of purchase correspondingly dated substantiates your right to claim under the warranty.
Performance
During the warranty period we undertake to rectify any and all defects to the Garador product which can be proved to be attributed to a material or manufacturing fault. We pledge at our discretion either to exchange the defective merchandise for faultless merchandise, repair it or allow a reduction in price. We do not accept costs for dismantling and installation nor for carriage. Replaced parts become property of Garador Ltd
The warranty does not cover damage caused through: -
normal wear and tear
improper installation
negligent care and maintenance
improper initial and subsequent operation
negligent or wanton destruction
external influences such as fire, water, salts, alkaline solutions, acids,
abnormal environmental Influences
mechanical damage through Improper transport and fitting
priming and other surface protection treatments
incorrect or too late applied surface protection treatments
repair by non-qualified persons
using non-Garador parts without the approval of the manufacturer
removal of the product number or making it unidentifiable
