FREE 3-POINT LOCKING UPGRADE
For Free 3-point locking select your door size below, then choose your free upgrades from the drop-down option. Offer ends 31/03/2026

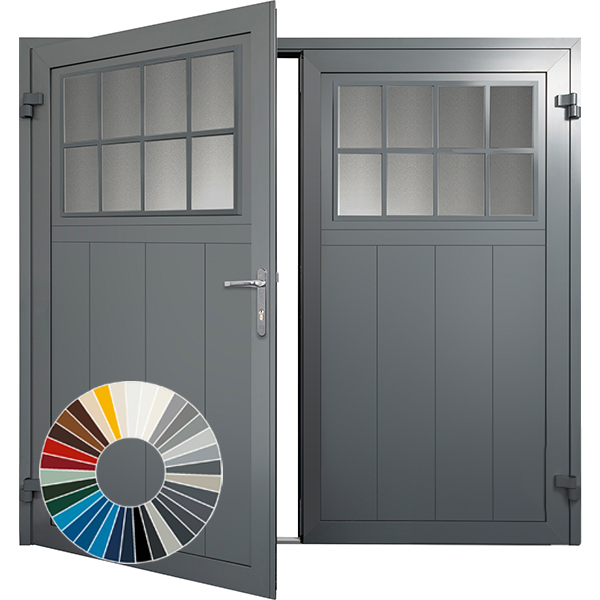

The Fort Vertical Medium Rib with Window combines classic vertical ribbing with practical glazed panels to create a door that balances traditional styling with modern functionality. Medium-width vertical ribs run the full height of each leaf, creating a balanced, rhythmic pattern that adds visual definition without appearing overly busy on smaller single garages. The glazed upper sections are neatly integrated into the door design, allowing natural daylight to flood into the garage while maintaining privacy when obscure or patterned glass is selected. This thoughtful combination of ribbed steel and glazing makes the door particularly well-suited to UK garages now used as workshops, hobby spaces or home gyms, where natural light and thermal performance are equally important. The vertical emphasis draws the eye upward and can help smaller garage openings feel more in proportion with taller two-storey homes.
Fort 20 mm Insulated Side Hinged Range
Fort's 20 mm double-skinned steel side hinged doors combine a rigid outer skin with an insulated core to deliver improved thermal performance, strength and a quality closing action. The doors are supplied as complete pre-assembled units with steel frame and hardware, helping to ensure accurate installation, smooth operation and long-term reliability.
Construction & Insulation
The door leaves use a double-skinned steel construction with approximately 20 mm of insulation, creating a stable panel that feels solid in everyday use. This insulated build helps reduce heat loss compared to single-skin doors, supporting more comfortable temperatures if the garage is used as a workshop, gym or utility space.
Frames, Seals and Weather Protection
Each door set is supplied with a matching steel sub frame, allowing the door and frame to work together as a single engineered unit. Circumferential seals around the leaves and frame edges help minimise draughts, wind-blown debris and rain ingress, which is particularly valuable on exposed UK driveways.
Hardware, Locking and Operation
Fort side hinged doors use robust hinges and proven locking hardware designed for frequent pedestrian access rather than occasional vehicle use. The easy swing-open action makes it simple to step in and out of the garage without operating a full lifting mechanism, ideal when the garage is used daily for storage, hobbies or home business activities.
Key Features
• 20 mm insulated double-skinned steel construction
• Medium vertical rib design with integrated glazed panels
• Natural daylight from glazed upper sections
• Complete pre-assembled unit with steel frame
• Circumferential weather seals for draught reduction
• Balanced styling suits most UK property types
• Single-leaf pedestrian access for daily convenience
• Robust hinges and proven locking hardware
Construction: 20mm double-skin insulated steel panels
Material: Galvanised steel with powder-coated finish
Insulation: Polyurethane foam core
Maximum Width: Up to 2750mm (including sub frame)
Maximum Height: Up to 2350mm
Panel Design: Medium-width vertical rib profile
Windows: Generous glazed window area in upper section with colour-matched bars available as a cost option
Glazing Options: Stippled or clear glass
Locking: Standard handle lock (3-point locking available as optional upgrade on doors with a minimum height over-frame of 2000mm)
Hinges: Colour-matched, adjustable in 3 directions
Seals: Double seals to door leaf and frame
Handle Finish: Chrome as standard (also available in Brass, Black, White, Aluminium, or Brushed Stainless Steel)
Door Stays: Fitted as standard
Opening: Side-hinged (left or right opening available)
U-Value: Excellent thermal efficiency
Security: Robust construction with optional 3-point locking system
Maintenance: Low maintenance powder coat finish
Colour Options: Available in a choice of 28 colour options, the paint finish is a highly durable powdercoat ripple texture giving an attractive finish and excellent resilience.
Signal White RAL9003
Grey White RAL9002
Pebble Grey RAL7032
Dusty Grey RAL7037
Traffic Grey RAL7042
Light Grey RAL7035
Window Grey RAL7040
Silver Grey RAL7001
Iron Grey RAL7011
Slate Grey RAL7015
Graphite Grey RAL7024
Anthracite Grey RAL7016
Black Grey RAL7021
Jet Black RAL9005
Steel Blue RAL5011
Cobalt Blue RAL5013
Gentian Blue RAL5010
Signal Blue RAL5005
Light Blue RAL5012
Moss Green RAL6005
Chartwell Green BS14 C35
Ruby Red RAL3003
Traffic Red RAL3020
Chocolate Brown RAL8017
Clay Brown RAL8003
Mahogany Brown RAL8016
Light Ivory RAL1015
Cream RAL9001
3 Point Locking |
Hinges |
Seals |
Handle Options
|
Installation instructions provided with the door.
2-year Product guarantee
The standard guarantee of 2 years is given to the holder of the product that covers all parts and the panel providing the serial number is readable, intact and in place. Factory applied paint finishes are 2 years on steel doors that have standard colours applied.
The product is given a 2 year warranty for hinges and locking for normal use whereby normal use consists of no more than 5 operations (open/close) per day. We recommend the product is inspected and serviced annually by a competent engineer from the garage door industry, the warranty for parts replaced by an engineer or for supply only is 6 months or for the remainder of the warranty period. If warranty work is carried out the product guarantee does not extend past the anniversary of installation/ supply date.
