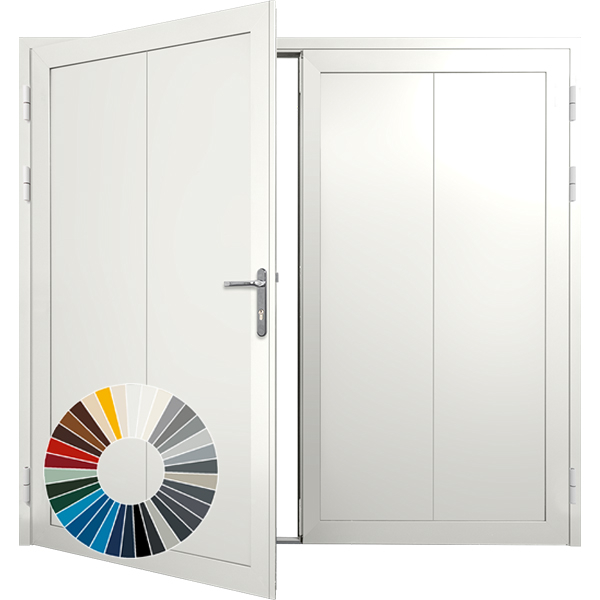

The Vertical Wide Rib design is perfect for the more modern home, with its sleeker and minimalistic overall design at any size. Samson Doors offer this door with a full made to measure size range for millimetre perfect ordering.
This is a superb design for any of the sizes offered with no clutter to the final visual appeal.
Manufactured entirely in the UK these doors offer great value for money considering their overall specification.
With a 51mm double skinned outer frame profile and steel insulated panel inserts of varying thickness, these side hinged garage doors offer the highest levels of insulation and high standard specifications all round.
This door has a polyisocyanurate thermal core for industry leading insulation levels, with a thermally broken threshold, frame and door leaf, preventing energy loss by removing heat conducting bridges between the inside and outside of the door.
Robust lever handle, latch and deadlock as standard with internal thumb turn operation and lever handle.
Concealed shoot bolts to the top and bottom of the inactive door leaf with adjustable keep and extra long throw bolts for added security.
Door stays fitted as standard.
3 point locking with mortice and twin hook locks is standard on the Pro Therma door range.
3 star security anti snap euro profile cylinder locking with security keys.
Optional ‘smart’ access handle with finger print recognition and key card access included.
No keys required and also doors can be unlocked via a smartphone app if you need to allow a one time access for deliveries or other purposes.
Double seals to the door leaf and frame for maximum weather protection and prevention of dust and leaves into the garage.
3D external hinges, adjustable in 3 directions for easy door leaf alignment.
Thermally broken threshold with ramped design for enhanced access and efficiency in sealing.
A level floor is required for maximum effectiveness of any threshold.
This door has a U value of 1.4W/m2K, making it perfect for anyone using their garage for another room, or of course wanting to treat their vehicle inside with the utmost care.
32 powdercoated colour options which are for both the door leaves and the steel sub frame.
All the doors are Made to Measure as standard for the perfect fit.
Matching pedestrian side access doors available in the exact same build specification, colours and designs to match the garage doors..
Summary of main door features:
• Door Type: Side-hinged, dual-leaf opening
• Material: Insulated steel and aluminium profile panels
• Insulation: High-density core for thermal efficiency
• Frame: Reinforced outer sub fixing frame with heavy-duty hinges
• Locking System: Multi-point locking for enhanced security
• Finish Options: Wide range of RAL colours as standard or on request
• Operation: Manual outward opening
• Weather Seals: Integrated seals for improved protection
• Ideal For: Garages requiring frequent pedestrian access, security and energy efficiency.
Choose from 32 standard colours which also includes the outer fixing sub frame. 3 colours are standard with no charge and the optional 29 other colours have a small additional charge.
Optional RAL special colours are always available on request.
9 different lever handle finishes are available at the same price or choose a chrome finished smart lock system at extra cost allowing finger print recognition for entry. This system is in a chrome finish as standard.
Roller bar locking and fixed straight vertical pull bars in stainless steel are available externally in 1200mm or 1600mm lengths at extra cost.
50:50 door split
1/3rd and 2/3rd split optional with limited maximum width sizes of 2438mm
Minimum width for doors is 1500mm overall
Minimum height for doors is 1500mm overall
Doors open outwards as standard but on request you can have the door opening inwards at extra cost in manufacturing. The seals will not perform as well with the doors opening inwards.
Included as standard:
Door stays operated from inside
3 star anti snap locking
3D adjustable hinges
Outer fixing sub frame in aluminium box section with multiple seals
Concealed shoot bolts top and bottom of inactive door leaf
3 point mortice and twin hook locking

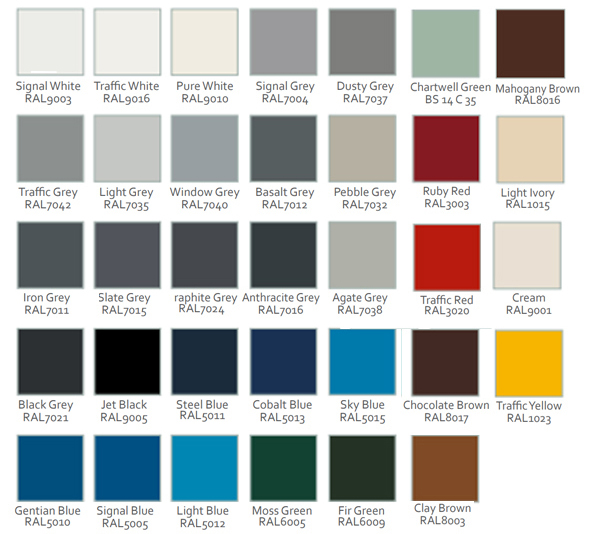

Choose from the classic low gloss solid colours as below:
STANDARD FREE OF CHARGE COLOURS:
White RAL9016
Black RAL9005
Grey RAL7016
PREMIUM COLOURS WITH SMALL SURCHARGE:
Signal Grey RAL7004
Dusty Grey RAL7037
Traffic Grey RAL7042
Light Grey RAL7035
Window Grey RAL7040
Basalt Grey RAL7012
Pebble Grey RAL7032
Iron Grey RAL7011
Slate Grey RAL7015
Graphite Grey RAL7024
Agage Grey RAL7038
Black Grey RAL7021
Steel Blue RAL5011
Cobalt Blue RAL5013
Sky Blue RAL5015
Gentian Blue RAL5010
Signal Blue RAL5005
Light Blue RAL5012
Moss Green RAL6005
Fir Green RAL6009
Chartwell Green BS14 C 35
Ruby Red RAL3003
Traffic Red RAL3020
Chocolate Brown RAL8017
Clay Brown RAL8003
Mahogany Brown RAL8016
Light Ivory RAL1015
Cream RAL9001
Traffic Yellow RAL1023
