ExitGuard Secure
Emergency Exit Steel Doorsets
External Security Fire Exit Steel Doorset
Sizes up to 1460mm x 2960mm
Material: Steel
Enquiry Form
Call Us
Email Us
Web Price From: £1,220.00
(Excluding VAT and £1,464.00 Inc. VAT)
Web Price From:
£1,220.00
(Excluding VAT and
£1,464.00
Inc. VAT)
NEED HELP? Call us on 01933 448 850
or click here to connect via our Live Chat
- Description
- Specification
- Installation
- Warranty
- Measure
Description

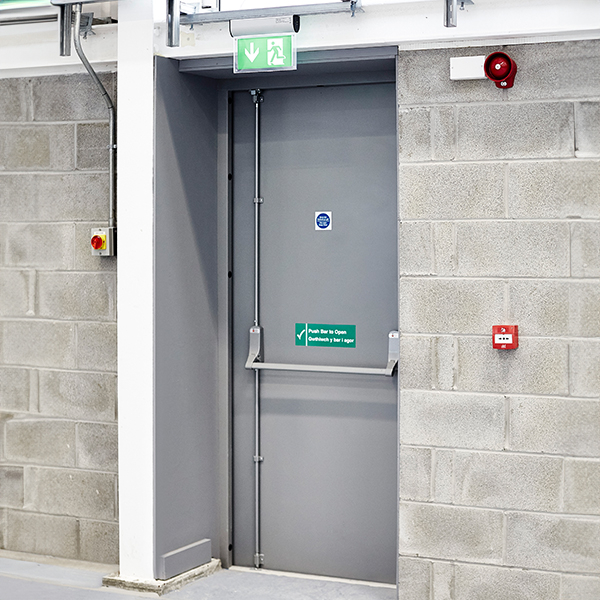

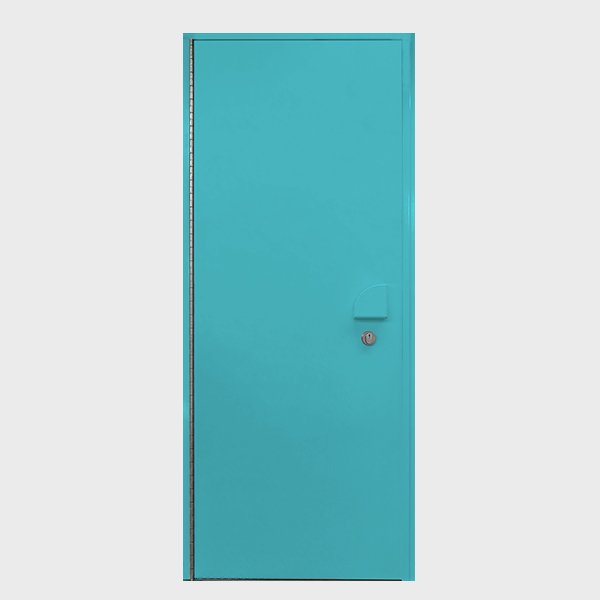

The ExitGuard Security is an extra secure external emergency exit steel doorset with a single door leaf, purpose made to the perfect size for your project.
Standard maximum width is 1460mm wide and 2960mm high for a single leaf door.
A fully compliant and certified emergency exit door with the correct panic hardware is an essential part of any commercial building fire exit strategy, but it is still an external door on any building too, which means it needs to protect well against weather, heat and cold and attempted forced entry from outside and if your door is fairly hidden and therefore an easier target for break ins then security is important
This door benefits from having higher than normal levels of security features, important for any external steel door set generally, but quite often fire exit emergency doors are out of sight on a building and at higher risk of attempted forced attempts. These might include emergency exit doors leading into alleyways or in buildings which are rural or isolated in cities.
Specification
Multiple specifications can be accommodate for this doorset in single and double door leaf formats as it has no specific security rating with the majority of the additional security coming from the use of continuous hinges when specified and thicker steel door leaf along with high specification and security hardware and limited access or nothing on the external side of the doorset. With anti jemmy flanges on the outside face there is literally nothing to be attached and the intruder is met with a wall of almost flat steel..
Our Samson ExitGuard doorsets are supplied fully assembled with hardware fitted as standard which, when combined with our adjustable fixing feet and variable sub-frame, drastically reduces the installation time on site, which in turn adds value to a project.
Using thicker steel and solid timber core construction, and completed with high-security locking configurations, this doorset offers resilience in the toughest environments.
Powdercoating, patterns and stainless steel finishes.
ExitGuard Secure doors are available polyester powdercoated as standard in one of over 50 colours. Alternatively, doors can be polyester powdercoated in any BS or RAL colour.
The ExitGuard Secure doors are also available in stainless steel, with brushed, polished and patterned finishes available. Alternatively, our external doors are available unfinished for site finishing.
Panic Hardware
ExitGuard Secure steel doorsets can be fitted with a range of panic hardware in order to comply with BS EN 1125 and BS EN 179 standards. Higher security specification are obviously recommended.
We can fit a range of emergency and panic hardware for both emergency applications where the exit door is in a low occupancy environment and will only be used by trained personnel, and for panic applications where the exit door is used by the public and provides 'safe and effective escape through the doorway with the minimum effort and without prior knowledge of operation'.
We can also fit a range of outside access devices to provide practical, controlled, and durable access to secure premises. External security doors with panic furniture tend not to have external furniture of any kind with only internal access control.
Vision Panels
ExitGuard doorsets can be fitted with a wide range of clear laminate vision panels, with custom sizes and glass types available to suit your specific requirements. Our vision panels are constructed from 1mm cold rolled steel, and screwed together from one side.
Louvre Panels
The Samson ExitGuard Secure doorsets can also be fitted with a wide range of security louvre panel options.
Our standard louvre offers 50% air flow, with louvre blades constructed to stop birds. Galvanised insect and fly mesh are also available as optional extras.
Side and Over Panels
We offer a range of side panels and over panels for single and double doors. Panels can be solid, hinged, removable, flush, glazed or louvered depending on your specific requirements.
Locking and Handle Solutions
The ExitGuard steel doorsets can be fitted with a wide variety of mortice locks and latches, with all lock cases tested to BS EN 12209 and all lever furniture tested to BS EN 1906.
Our doors are available in the following configurations:
Sizes, frames and finishes:
Up to 1470mm wide for single leaf door and 3800mm high
Up to 2860mm wide for double leaf doors and 3800mm high
95mm single rebate C frame and many other size options to suit
Finish: Polyester powdercoated in one of over 200 standard colours
Standard DDA-compliant chamfered profile in 2mm stainless steel
Options: raised/extended cills, inward-opening profiles with drainage, 4mm ramped design
Integrated removable thresholds available.
Side and Over panel options.
Installation
Every steel doorset is supplied completely factory assembled for the easiest on site installation and includes:
Full fitting kit with 11mm allen key for frame adjustments
Pot of touch up paint
Tube of clear mastic for use under the threshold
Selection of drill pieces for fitting into concrete or steel
Self cutting frame fixings and spare hinge screws
Any steel doorset will be heavy with all hardware and sub frame assembled so you will need at least 2 people to handle the door into position and possibly more when the door is an enhanced specification on security for example
All locks and hardware are already fitted in the factory with only the protruding parts supplied loose for on site fitting.
Warranty
The Metador guarantee includes:
The frame and door sets are given 15 years guarantee subject to correct door installation and maintenance.
All our Ironmongery has a 1-year guarantee subject to correct usage and maintenance
The Marine Grade PPC finish is guaranteed for a period of 10 years subject to the cleaning and maintenance programme.
At Metador the Standard Powdercoat finish is guaranteed for a period of 1 year subject to the cleaning and maintenance programme.
Guarantee Coverage:
Metador will repair or at our option replace any goods sold by Samson Doors to you which are, shown to our reasonable satisfaction to have become defective within the warranty period stated above from the date of purchase.
Where we have supplied a product with an internal defective component, we will only replace the defective component within the product.
‘Defective’ goods are those which under correct usage, do not function properly because of a fault in materials, workmanship or design.
We will replace any goods that are found to be defective on delivery, when reported within 3 working days of receiving the delivery. Photo graphic evidence must be provided showing the defective goods on the pallet that they were delivered on.
Guarantee Exclusions:
WithMetador, there are some situations in which the guarantee does not cover, these include damage caused by:
Abuse, unsuitable or lack of maintenance and any other neglect that might occur.
Harmful cleaning solvents that may be used to clean the door
Incorrect installation of the door
Damage to the paint finish of the door which may include, scratches, washing and paint protection.
Use of parts that are installed that are not advised by Metador
External impacts including weather
Repairs or fitting that have been supported by other persons
Fair wear and tear
It should be noted that for any guarantees or warranties to be valid, the cleaning and maintenance regime must be documented and recorded, confirming the frequency of maintenance along with all methods and products used. This must be submitted for any claim to be considered.
Claims Procedure:
The customer must contact Samson Doors or Metador in writing within 3 working days of the discovery of the defect, specifying the nature of the claim and defect.
On request, the customer must return the defective product to Metador Ltd at their cost for inspection.
Measure
A steel doorset is always ordered by the OVERALL dimensions including the door leaf and outer sub fixing frame with no tolerances allowed for. Most people would generally allow 5mm tolerance all the way around the door, but it all depends on how square or true your aperture is on site.
This means if your structural opening size is measured as 1000mm width and 2100mm height the door and frame ought to be 990mm wide and 2090mm high with the frame and any threshold included.
Always measure the top, middle and bottom of your aperture width and the left and right hand side for the height and if possible do a measure to make sure the opening is square as well.
Always use millimetres for measuring as this is how we relay back the ordering dimensions to you for checking and approving a drawing for your order.
The ExitGuard does have an adjustable fitting frame to take up to 30mm of tolerance into account which helps when the opening is not square.
