Samson SRD77 Insulated Electric Roller Door (Button Control)

The Samson SRD77 Button Control is a UK‑manufactured, double‑skinned insulated aluminium roller garage door, designed for customers who want a simple, robust electric door without unnecessary complexity. Built exclusively for Samson Doors, it focuses on easy everyday use, straightforward installation and long‑term reliability rather than gadgets you will never use.

Best for garages used on foot

The SRD77 Button Control model is ideal if you do not drive a vehicle in and out of the garage every day, or if you have an integral garage with a connecting pedestrian door next to your home. For this kind of use, remote controls are often unnecessary, a reliable wall‑mounted control inside the garage is usually all you need.

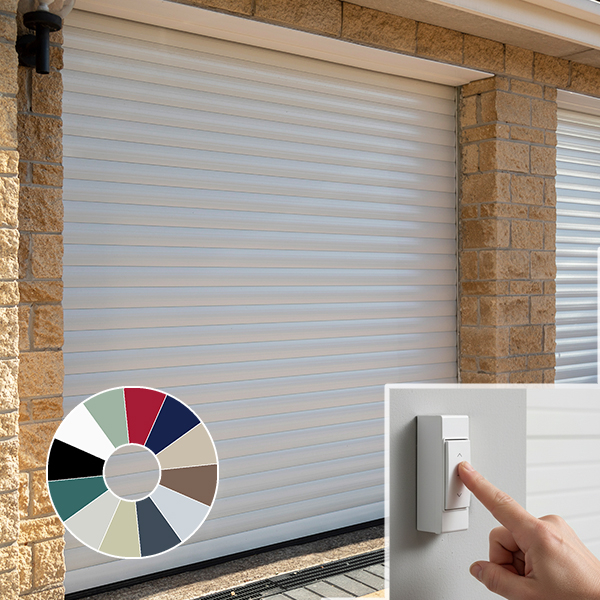

A neat internal wall‑mounted button panel gives you simple Up and Down controls to raise and lower the door. There is no need for handsets, batteries or complex programming, making this model perfect for UK garages used mainly for storage, hobbies, utilities or as an everyday side entrance.

Simple, compliant button operation

The SRD77 Button Control uses “hold‑to‑run” logic: you press and hold the button until the door is fully open or fully closed, and you can stop it at any point if required. Because you are in control of the movement at all times, the system complies with UK safety regulations without needing extra electronic safety devices such as photocell beams or bottom‑edge sensors.

The button is hard‑wired directly to the roller door, keeping the controls dependable and easy to understand. Fewer electronic components mean fewer things to go wrong, a quicker installation and an easier setup for the installer.

For minimal extra cost, you can upgrade to a “semi‑automatic” control system using an internal wall‑mounted control panel (Genesis control). This gives you impulse opening – a brief press on the Up button and the door opens fully – and allows you to add an external wall‑mounted key switch so you can operate the door from outside as well as inside.

UK manufactured quality for Samson customers

Samson SRD77 insulated roller doors are manufactured in the UK by AlluGuard, one of the leading names in roller garage doors, exclusively for Samson Doors. Decades of manufacturing experience, high‑grade aluminium slats and quality components ensure a refined, reliable door tailored to UK homes and weather conditions.

The simplified design of the Button Control model focuses on what UK customers tell us they actually want after more than 30 years of experience:

• A door that just works, day in, day out.

• Insulated, double‑skinned curtain for a more stable internal environment.
• Straightforward, intuitive controls with no unnecessary electronics.
• Competitive pricing without cutting corners on build quality.

Made‑to‑measure sizing and fitting

Samson SRD77 Button Control doors are made to measure to suit your opening precisely, up to a maximum overall width of 5200 mm including the side guides. The maximum curtain height is 2900 mm, plus the 300 mm required for the roll and endplates above.

• Side guides are 70 mm or 90 mm wide, depending on the door width.
• Doors over 3000 mm wide are supplied with 90 mm guides as standard.
• The clear opening width will be 180 mm less than the ordering width (to allow for the two side guides).

This flexible sizing and compact roll arrangement make the SRD77 suitable for a wide range of single and double garages, with neat, tidy installation and minimal intrusion into your usable space.

Colours, hoods and visual options

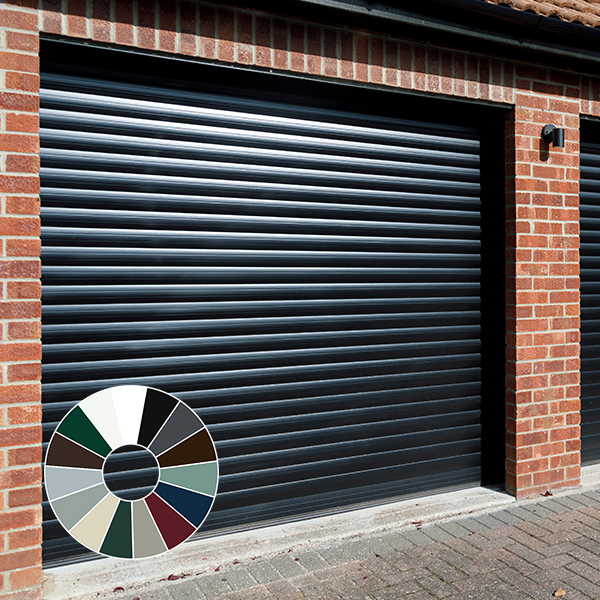

The SRD77 curtain is available in 18 premium, high‑quality powder‑coated colours to complement most UK homes. You can specify an optional half or full hood in a matching colour for a completely finished look, helping to protect and conceal the roll.

If you prefer a contrasting colour for the hood or guides – for example, to match other external features – you can contact Samson Doors for details and pricing. This allows you to create a tailored appearance while keeping all the benefits of an insulated, compact roller design.

Manual override and access requirements

An internal manual winding handle is fitted as standard so you can operate the door in the event of a power failure. This override is accessed from inside the garage on the same side as the motor drive, which you can specify when ordering.

Because the SRD77 Button Control is supplied with internal button control only, you must have a separate pedestrian access to the garage (such as a side door or internal door from the house) to use this model safely and conveniently.

If you do not have another way into the garage, we recommend looking at the SRD77 Semi‑Auto Button Control model, which allows operation from both inside and outside with an external key switch, and adding a low‑level external manual release for emergency access in a power cut.

The Samson SRD77 Button Control insulated roller garage door is ideal for garages that are accessed on foot rather than used for daily vehicle parking. It suits homeowners who want a neat, insulated, UK‑made roller door with simple, reliable electric operation and no unnecessary electronics.

• Integral garages with a connecting door from the house.
• Garages used mainly for storage, hobbies, workshops or home gyms.
• Single and double garages where remote controls are not required.
• Properties needing a compact, space‑saving door with a tidy internal finish.
• Customers who prefer straightforward button control and easy maintenance.

Standard Specification and Features – Samson SRD77 Button Control

• Made to measure as standard – ordering sizes are the overall width of the door including guides, and the guide height, for clear pricing and a precise fit in your opening.
• Internal rocker/button switch control for the most basic, reliable method of operation, without the need for safety edge detection – ideal for simple, fuss‑free daily use.
• 2‑year warranty on the door as standard, with a 5‑year warranty on Somfy drive equipment for extra peace of mind.
• 77 mm slat height in double‑skinned, foam‑filled aluminium construction, pre‑finished in durable powder‑coat colour options inside and out for a long‑lasting, smart appearance.
• Curtain slat depth: 18 mm, giving a strong, stable curtain with smooth rolling action and good resistance to everyday knocks.
• Guide widths: 70 mm either side on doors up to 3000 mm wide, and 90 mm either side on doors over 3000 mm wide. Powder‑coated aluminium guides available in a choice of colours to complement the curtain.
• Compact 300 mm endplate and roll/hood size, helping the door fit neatly into a wide range of openings and low headroom situations.
• Choice of 3 core standard powder‑coat colours for fast, great‑value ordering, with an extended colour range available for a more personalised look.
• Internal emergency manual override in case of power failure, allowing you to open and close the door from inside the garage.

Options

• Half or Full Hood aluminium roll cover – ideal when installing between the opening to cloak the curtain roll from outside, maximise weather protection and keep the roll neatly covered and protected.
• Colour‑matched or contrasting hoods and guides available on request, so you can tie the door in with windows, front doors or other external finishes.

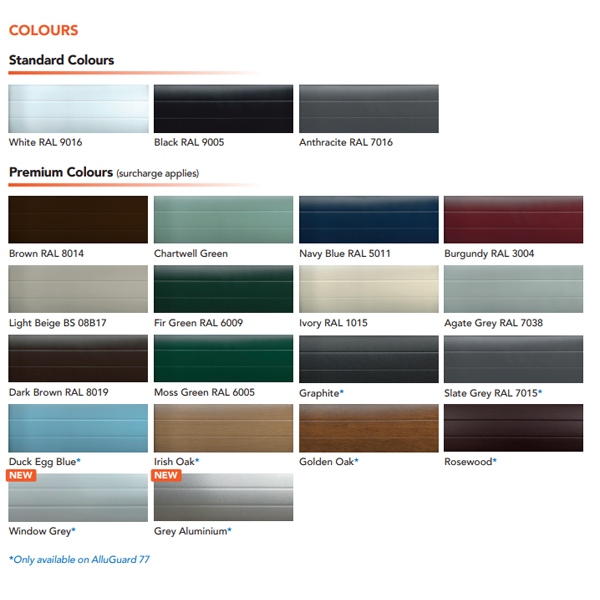

Core Standard Colours

• White (RAL 9016)
• Anthracite Grey (RAL 7016)
• Black (RAL 9005)

Extended Colour Range

• Brown (RAL 8014)
• Chartwell Green
• Navy Blue (RAL 5011)
• Burgundy (RAL 3004)
• Light Beige (BS 08B17)
• Fir Green (RAL 6009)
• Ivory (RAL 1015)
• Agate Grey (RAL 7038)
• Silver Metallic (RAL 9006)
• Dark Brown (RAL 8019)
• Moss Green (RAL 6005)
• Cream White (RAL 9011)
• Graphite
• Slate Grey (RAL 7015)
• Duck Egg Blue

Together, these specifications make the Samson SRD77 Button Control a clear, easy‑to‑choose option: a UK‑made, insulated roller door that is simple to order, straightforward to install and tailored to how most customers actually use their garages.

Installation Guidance – Samson SRD77 Button Control

The Samson SRD77 Button Control is designed for straightforward installation, with factory‑prepared components, minimal electronics and clear fixing points. It can be fitted behind, inbetween or (with suitable hooding and sealing) in front of the structural opening, depending on space and preferred finish.

Pre‑installation checks

• Confirm the opening is reasonably square and plumb, with a solid fixing surface (brick, block, steel or suitable timber).
• Check that you have the correct motor side handing as specified on your order.
• Ensure there is sufficient headroom for the 300 mm roll and endplates, and adequate side room for the guides (70 mm or 90 mm each side).
• Arrange a suitable 230–240 V single‑phase power supply, installed by a competent person in line with current UK regulations.

Positioning guides and roll

1. Marking out
   Measure the structural opening and compare with the ordering sizes. Mark the finished door position and the centreline of the opening on the inside face, then mark the guide positions to ensure they will be plumb and parallel.
2. Fixing the side guides
   Offer up each aluminium guide, check with a spirit level that it is perfectly vertical, then fix through the pre‑drilled holes using appropriate fixings for the wall type. Do not overtighten; keep the guides straight and parallel from top to bottom.
3. Setting the roll and endplates
   Lift the pre‑assembled roll and endplate unit into position above the opening, locating the endplates on the tops of the guides. Align so the curtain will run centrally in the guides, then fix the endplates securely back to the wall or supporting structure, ensuring they are level and the roll has sufficient clearance.

Electrical connection and control setup

1. Power supply
   Bring the dedicated power supply to a suitable isolator close to the motor side. Route cables neatly, avoiding sharp edges, moving parts and potential water ingress.
2. Wiring the motor and button
   Connect the tube motor to the control/switch as per the wiring diagram supplied with the door. Connect the internal button or rocker switch with the specified control cable. For upgraded systems, wire any internal control panel and external key switch in accordance with the instructions.
3. Initial test
   With the curtain in the open position and the manual override disengaged, energise the system and test Up and Down using “hold‑to‑run” operation. Confirm the motor runs smoothly and in the correct direction before proceeding.

Setting limits and commissioning

1. Limit setting
   Use the motor’s limit‑setting method (mechanical or electronic, depending on model) to define the fully open and fully closed positions. The lower limit should close the curtain snugly to the floor without excessive load; the upper limit should stop before the curtain overwinds or fouls the motor fixings.
2. Operational checks
   Run the door through several full open/close cycles, checking that it travels smoothly, remains centred in the guides and does not rub or bind. Make fine adjustments to guides or limits as required.
3. Manual override test
   Engage the internal manual winding system and confirm that the door can be opened and closed smoothly by hand. Disengage the override and re‑test powered operation.

Hoods, sealing and finishing

1. Fitting half or full hood (if specified)
   Position the hood sections over the roll and fix to the endplates and any support brackets as directed in the supplied instructions. Ensure the hood is secure and does not interfere with the curtain path.
2. Weather sealing
   Seal gaps between guides, endplates and the wall with a suitable external‑grade sealant to improve weather protection. Check the floor line and consider a threshold seal if there are uneven areas or small gaps.
3. Final presentation
   Check all fixings, cable runs and covers. Clean down the curtain, guides and hood, removing any labels or protective films as appropriate.

User handover and safety notes

• Explain “hold‑to‑run” operation and emphasise that the user must keep the door in sight while it is moving.
• Demonstrate the internal manual override and confirm the location of the mains isolator.
• Advise against boxing in the guides, hood or motor so that future maintenance and adjustment remain accessible.
• Remind the user that any further electrical changes should be carried out by a suitably qualified person.

When these steps are followed, the Samson SRD77 Button Control provides a clean, tidy installation with very little setup time, making it a practical choice for both professional installers and competent DIY customers working with an electrician.

 Warranty Terms & Conditions

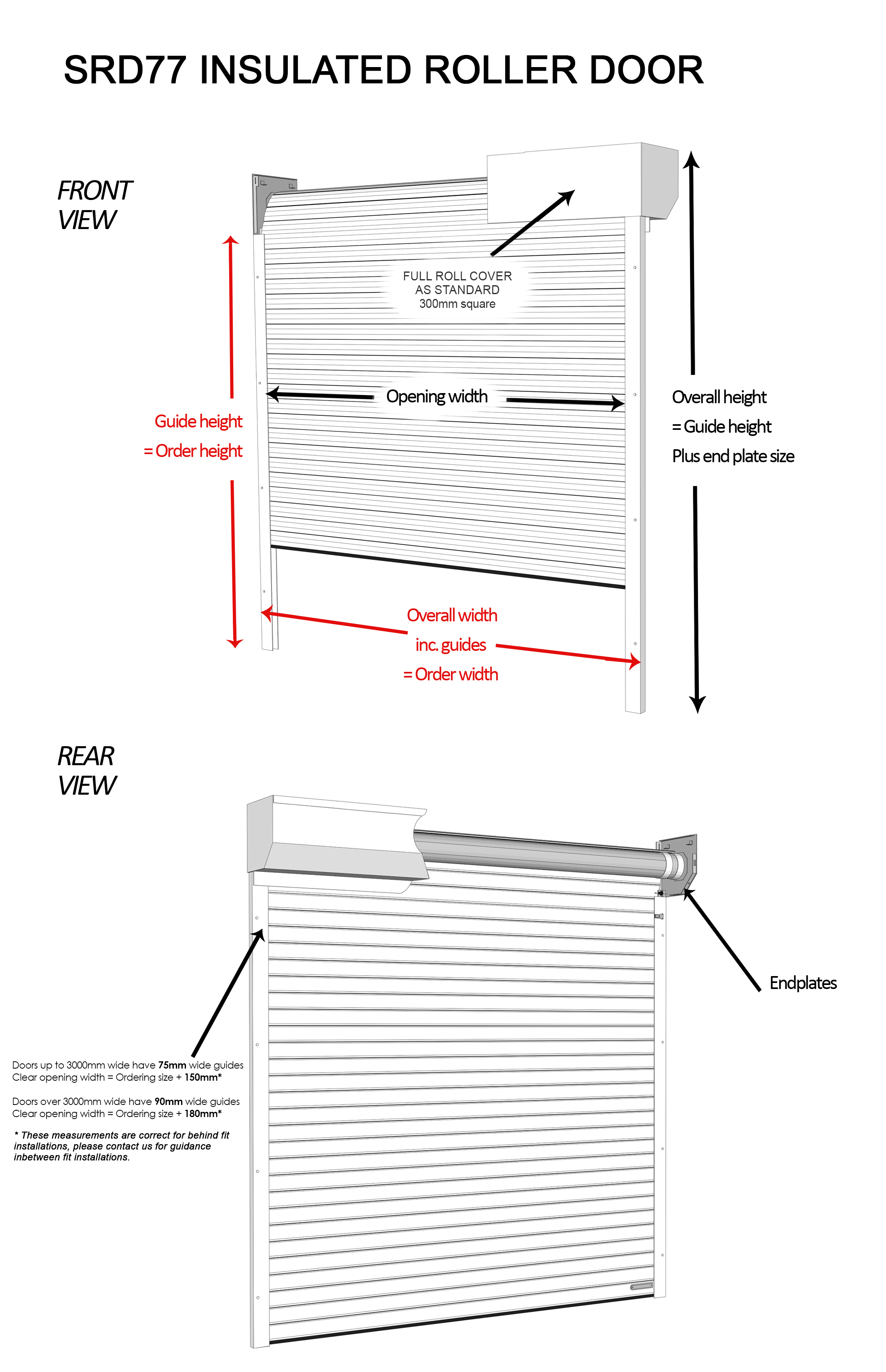

Measuring and Ordering Guidance

Ordering sizes for this Samson roller garage door are based on the Over Guide Width (OGW) and Guide Height (GH) only – they do not include the endplates or the curtain roll (see 3D diagram below for reference).

• Guides are 75 mm wide on each side for doors up to 3000 mm wide.
• For doors over 3000 mm wide, the guides are 90 mm wide on each side.

For a standard behind‑fit installation:

• Clear Opening Width
  Up to 3000 mm wide: Clear Opening Width = Ordering Width − 150 mm
  Over 3000 mm and up to 5200 mm: Clear Opening Width = Ordering Width − 180 mm
• Clear Opening Height
  Clear Opening Height = Guide Height − 50 mm (allowing for the bottom slat sitting down into the guides).
  The 300 mm endplates, which contain the motor and barrel, are added on top of the Guide Height to give the Overall Height required.

For inbetween‑fit (between reveal) installations:

Please contact us for specific sizing advice. You will need a half hood or full hood when fitting inbetween and underneath the lintel, and you should allow suitable fitting tolerances within your ordering dimensions.
