Samson SRD77 Total Smart – Somfy TaHoma Switch Roller Garage Door

Fully smart, insulated electric roller door

The Samson SRD77 Total Smart (SmartRoll) is an insulated aluminium roller garage door for homeowners who want truly complete smart control as part of a connected home. It is a double‑skinned, foam‑filled electric roller door that remains fully compliant with UK regulations for remote‑operated doors, with a bottom‑edge safety sensor on the curtain and additional infra‑red safety beams that protect the opening when the door is closing, even when controlled from anywhere in the world via smart devices.

Somfy Rollixo Premium remote control as standard

Every SRD77 Total Smart door is supplied with two Somfy Keygo remote handsets using Somfy io protocol, giving smooth, secure open/close control and status feedback. The Somfy Rollixo Premium wall‑mounted control panel manages the communication between the motor, io handsets and other Somfy io devices, providing a robust, proven remote control platform.

The Rollixo Premium panel also adds:

• A built‑in alarm system that triggers if the door is attacked or the curtain is forcibly lifted when closed.
• A programmable courtesy light that comes on automatically when the door operates and switches off after a timed delay.
• Integrated button controls on the panel for direct local operation.

A Somfy wireless, wall‑mounted button switch is also included, which can be positioned anywhere within radio range inside the garage or home to give you an extra, cable‑free control point.

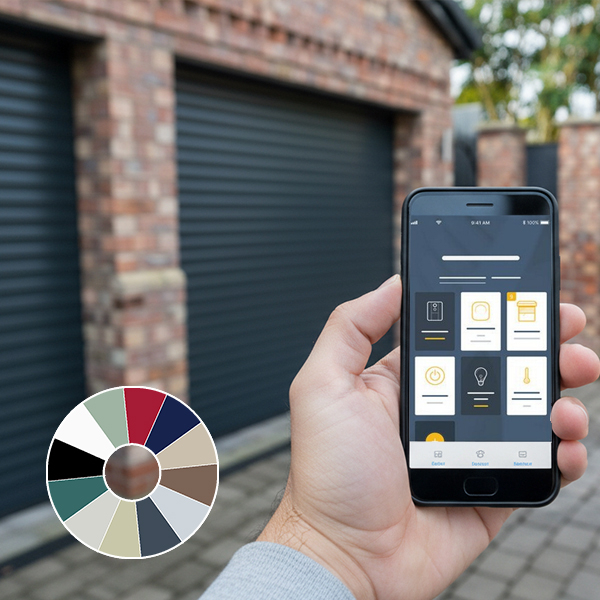

Total smart home control with Somfy TaHoma Switch

What sets the SRD77 Total Smart apart is the inclusion of the Somfy TaHoma Switch kit as standard. TaHoma Switch is Somfy’s flagship smart home hub, allowing you to control your garage door via the Somfy app on your smartphone or tablet and to build powerful, automated routines that involve multiple devices around your home.

With TaHoma Switch you can:

• Open, close and check the status of your SRD77 Total Smart door from virtually anywhere.
• Connect multiple smartphones so family members can each have secure access to the garage.
• Create scenarios (such as “Arrive Home” or “Goodnight”) where the garage door, lights, blinds and other devices all act together at the touch of a button or according to a schedule.

TaHoma Switch supports io‑homecontrol, RTS and Zigbee 3.0, and can work with more than 280 equipment ranges and over 20 major home brands, covering Somfy products and many partner devices such as shades, shutters, doors, gates, windows, heating, lighting, cameras and alarm systems. This makes the SRD77 Total Smart an ideal choice if you want your garage door fully integrated into one of the most complete and scalable smart home ecosystems available.

Smart scenes, voice control and partner devices

Using the TaHoma app, you can create and customise scenes, schedules and advanced routines that fit your daily life. For example, you might have the garage door open, driveway lights switch on and hallway lights activate together when you arrive home, or close the garage and switch off outdoor lighting automatically at night.

TaHoma Switch also works with popular voice assistants, so you can add voice control via platforms such as Alexa or Google (subject to the integrations you choose). Because TaHoma can connect to a wide range of devices – including blinds, awnings, electric gates and Philips Hue lighting – your SRD77 Total Smart door becomes part of a much bigger, unified control experience rather than a stand‑alone device.

UK manufactured insulated curtain and sizing

Samson SRD77 Total Smart insulated roller doors are manufactured in the UK by SWS/AlluGuard for Samson Doors, using many years of development and production experience. The curtain is constructed from 77 mm high, double‑skinned aluminium slats with a foam‑filled core, giving a strong, insulated barrier that rolls compactly onto a 300 mm barrel.

Doors are made to measure up to a maximum overall width of 5200 mm (including the side guides) and a maximum curtain height of 2900 mm, with an additional 300 mm required above for the roll and endplates. Side guides are 70 mm or 90 mm wide depending on door width; doors over 3000 mm wide always use 90 mm guides as standard, so the clear opening width is 180 mm less than the ordering width.

Colours, hoods and finishes

The SRD77 Total Smart curtain is available in 18 premium, high‑quality powder‑coated colours, allowing you to match or contrast with your property’s windows, doors and other external features. You can choose optional half or full hood covers in a matching colour to protect and conceal the roll, which is particularly useful for inbetween‑fit installations or where the roll would otherwise be exposed to the weather.

If you prefer a contrasting hood or guide colour to create a more distinctive look or tie in with other external elements, Samson Doors can provide details and pricing so you can tailor the door’s appearance to your home.

Manual override and emergency access

The SRD77 Total Smart includes an internal manual winding handle system, located alongside the electric motor, so you can operate the door from inside in the event of a power failure. This ensures you retain physical access to the garage even if the mains power or network connection is lost.

If your garage does not have a separate pedestrian access door, it is strongly recommended that you add the optional external low‑level emergency manual release. This allows you to unlock a cover plate on the outside of the garage and insert a winding handle to operate the internal manual override, ensuring you are never locked out during a power cut.

Why choose the Samson SRD77 Total Smart?

The Samson SRD77 Total Smart is the top‑level SRD77 model for customers who want complete, joined‑up smart home control. With Somfy Rollixo Premium io remote control, TaHoma Switch smart hub, safety edge and beam protection, and UK‑made insulated curtain construction, it delivers a fully smart, secure and convenient roller garage door that can grow with your wider connected home.

No Hood, Half Hood or Full Hood?



Standard Specification and Features – Samson SRD77 Total Smart

Key Smart & Control Features

• The ultimate smart electric roller garage door in the SRD77 range.
• Somfy io electric tube motor as standard, with 5‑year warranty on motor and Somfy controls.
• Remote control via 2 Somfy io technology handsets for smooth, secure operation and status feedback.
• Somfy TaHoma Switch smart hub included for full home‑wide smart control.
• Built‑in button controls on the wall‑mounted Somfy Rollixo / Rollixo Premium control panel.
• io‑homecontrol technology for precise door position status and secure communication.
• Integrated alarm system in the control panel to detect forced attempts on the door curtain.
• Built‑in courtesy light on the wall control panel with programmable run‑on duration.
• Full smart home compatibility – TaHoma Switch can link the garage door with more than 200 additional devices, including Philips Hue lighting, so lights and other products can operate automatically when the door is used.
• Voice control capability via Alexa or Google (and from compatible in‑vehicle systems) when set up through TaHoma.
• Scheduled and scene‑based control for enhanced security and convenience (e.g. timed closing, “Arrive Home” or “Goodnight” scenarios).
• Optical safety edge obstacle detection in the bottom seal.
• Additional infra‑red beam safety for smart/app operation from anywhere while maintaining compliance with safety regulations.

Further Door & Control Details

• Made to measure as standard – ordering sizes are the overall width including guides and the guide height, ensuring accurate pricing and a precise fit.
• Remote control: 2 Somfy io handsets as standard for open/close and stop at any point.
• Wireless internal wall switch included as a permanent wall‑mounted station in your garage or home, positioned anywhere within radio range.
• Somfy Rollixo / Rollixo Premium wall‑mounted control panel/receiver, providing central control for the door motor, handsets and wall stations.
• Somfy TaHoma Switch hub supplied to open up the full smart control environment and enable use of the free Somfy TaHoma app.
• Optical safety edge in the bottom seal for obstacle detection, stopping and reversing the door if an obstruction is encountered when closing.
• Infra‑red beam safety to permit remote and smart operation from outside line of sight while staying compliant with safety requirements.
• Warranty: 2‑year standard warranty on the door assembly, extended to 5 years on all Somfy motors and controls supplied with this model.
• Insulated curtain: 77 mm double‑skinned aluminium slats with foam‑filled core, pre‑finished in durable powder‑coat colours inside and out.
• Curtain slat depth: 18 mm for a strong, stable curtain with smooth rolling action.
• Guide sizes: 70 mm guides each side on doors up to 3000 mm wide; 90 mm guides each side on doors over 3000 mm wide. Aluminium guides available in a choice of colours.
• Compact roll: 300 mm endplate and roll/hood cover size, helping the door fit neatly into a wide range of openings and headroom conditions.
• Colour range: choice of 3 standard powder‑coat colours plus an extended palette of 18 premium colour options.
• Internal emergency manual override for operation from inside the garage in the event of a power failure.

Somfy TaHoma Switch – Technical Specification

• Article number: 1870600
• Radio frequencies: 868–870 MHz and 433.42 MHz
• Technologies: io‑homecontrol, RTS and Zigbee 3.0
• Connection: 1 × Micro‑USB
• Supply: 230 V / 5 V DC 1 A
• Enclosure rating: IP30 (indoor use)
• Range: up to 200 m in open field conditions
• Operating temperature: 0 °C to +50 °C
• Dimensions: 162 × 67.5 × 34 mm
• Weight: 213 g
• Colour: White
• Indicators: multi‑colour LED (red / green / orange / white)
• Controls: two physical buttons on the top to activate scenes manually

TaHoma Capacity Limits

• Maximum total connected products: 200
• io‑homecontrol devices: up to 200
• RTS devices: up to 50
• Zigbee devices: up to 50
• Somfy sensors / alarm sensors: up to 50
• Cameras: up to 5
• Scenes: up to 40 manual scenes, 20 scheduled scenes and 20 advanced scenes
• Philips Hue: 1 bridge (gateway) with up to 50 Hue products

Extra‑Cost Options

• External low‑level emergency manual override – recommended when there is no other way to access your garage. Provides a manual winding facility from outside in a power cut so you are not locked out.
• External key switch for key‑operated opening and closing from outside without using a handset or smartphone.
• Half hood or full hood aluminium roll cover – acts as a fascia to cloak the curtain roll where headroom is limited or when fitting between the opening, and adds extra weather protection.

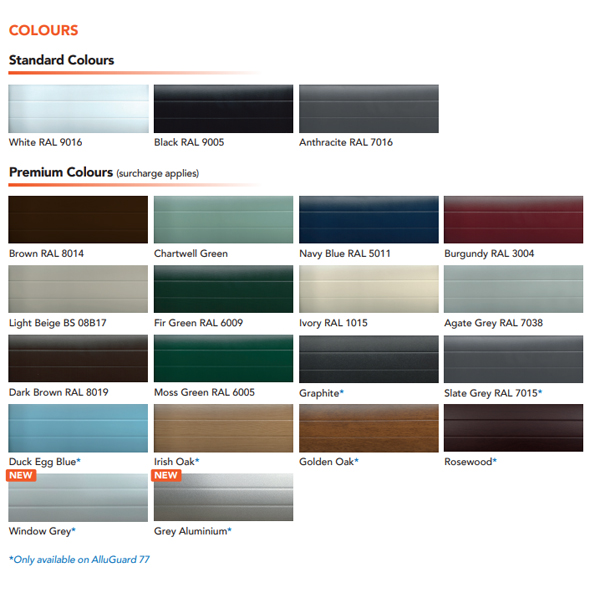

Standard Colours

• White (RAL 9016)
• Anthracite Grey (RAL 7016)
• Black (RAL 9005)

Premium Colours

• Brown (RAL 8014)
• Chartwell Green
• Navy Blue (RAL 5011)
• Burgundy (RAL 3004)
• Light Beige (BS 08B17)
• Fir Green (RAL 6009)
• Ivory (RAL 1015)
• Agate Grey (RAL 7038)
• Silver Metallic (RAL 9006)
• Dark Brown (RAL 8019)
• Moss Green (RAL 6005)
• Cream White (RAL 9011)
• Graphite
• Slate Grey (RAL 7015)
• Duck Egg Blue

Installation Guidance – Samson SRD77 Total Smart (Somfy Rollixo Premium + TaHoma Switch)

The Samson SRD77 Total Smart combines a factory‑assembled insulated roller door with Somfy Rollixo Premium io controls and the Somfy TaHoma Switch smart hub. Installation is straightforward for a competent installer, with additional steps to commission the smart and app‑based functions. The door can be fitted behind, inbetween or (with suitable hooding and sealing) in front of the opening.

Pre‑installation checks

• Confirm the opening is reasonably square and plumb, with a solid fixing surface (brick, block, steel or suitable timber).
• Check that the ordered sizes, guide type and motor side handing match the site conditions.
• Ensure sufficient headroom is available: Guide Height plus 300 mm for the roll and endplates, plus any hood depth if specified.
• Confirm there is adequate side room for the guides (70 mm or 90 mm per side, depending on width).
• Arrange a 230–240 V single‑phase power supply to the Rollixo Premium control position, installed by a qualified electrician in line with current UK regulations.
• Ensure a suitable mains socket or power point is available near the intended TaHoma Switch location (typically near the router/Wi‑Fi hub).

Fitting the guides and curtain roll

1. Marking out
   Measure the structural opening and compare with the ordering sizes. Mark the finished door line and centreline on the inside face, then mark the side guide positions so they will be plumb and parallel.
2. Fixing the side guides
   Position each aluminium guide, check with a spirit level that it is vertical, and fix through the pre‑drilled holes using suitable fixings for the substrate. Tighten evenly so the guides remain straight from top to bottom.
3. Setting the roll and endplates
   Lift the pre‑assembled barrel and endplate unit above the opening, resting the endplates on top of the guides. Align so the curtain runs centrally in the guides, then fix the endplates securely back to the wall or other support, ensuring they are level and that the roll has free clearance.

Mounting the Rollixo Premium control panel

1. Choosing a position
   Select an internal wall location close to the motor side and within reach of the motor cable and mains supply. Mount the control at a comfortable height, away from damp areas, with space for the antenna and access to the front buttons, indicators, light and alarm controls.
2. Fixing the panel
   Secure the Rollixo Premium unit to the wall using appropriate fixings. Make sure it is level and that the front cover can be opened easily for wiring, programming and future maintenance.

Wiring and basic control setup

1. Power connection
   Bring the 230–240 V supply into the Rollixo Premium and connect as per the Somfy wiring diagram. Fit a local isolator so the system can be safely switched off for servicing.
2. Motor and safety devices
   Connect the io tube motor leads to the motor terminals. Wire the optical safety edge in the bottom seal and the infra‑red safety beams to the specified safety inputs. Follow Somfy instructions carefully to ensure correct obstacle detection and compliance.
3. Pairing remote handsets
   Use the programming sequence on the Rollixo Premium to register the Somfy io handsets. Test each handset to confirm open, close and stop functions operate correctly.
4. Pairing the wireless wall switch
   Register the Somfy wireless wall‑mounted switch as an additional control. Once paired, mount it within radio range at a convenient height inside the garage or home.

Setting travel limits, light and alarm

1. Upper and lower limits
   Set the open and closed positions following the Rollixo/motor instructions. The lower limit should bring the curtain down firmly onto the floor without excessive pressure; the upper limit should stop before the curtain overwinds or contacts any fixings.
2. Courtesy light
   Configure the built‑in courtesy light, setting the desired run‑on time after operation. Check that the light comes on when the door moves and switches off after the chosen delay.
3. Alarm function
   Activate and test the integrated alarm so it sounds if the door is tampered with or the curtain is lifted while closed. Adjust settings as required within the recommended range.
4. Safety tests
   Run several full open/close cycles using the handsets and wall switch. Test the optical safety edge by introducing a suitable object beneath the bottom seal during closure, and test the infra‑red beams by breaking the beam path while the door is closing. Confirm the door stops and/or reverses as specified.
5. Manual override check
   Engage the internal manual winding system and verify that the door can be opened and closed smoothly by hand. Disengage and re‑test powered operation.

Setting up Somfy TaHoma Switch

1. Positioning TaHoma
   Place the TaHoma Switch indoors, typically near your internet router and within good Wi‑Fi coverage. Plug in the power supply and connect to your network as directed in the TaHoma instructions (Wi‑Fi or Ethernet, depending on model and setup).
2. App installation
   Download the Somfy TaHoma app from your device’s app store and create or log into your Somfy account. Follow the on‑screen steps to add the TaHoma Switch hub to your account.
3. Adding the SRD77 Total Smart door
   Within the TaHoma app, start the device‑add process for a Somfy io garage door/roller shutter. Put the Rollixo Premium into pairing mode as instructed, then let TaHoma discover and add the SRD77 door. Name the door (e.g. “Garage Door”) so it is easy to identify.
4. Configuring users and phones
   Add additional user accounts or share access so multiple family smartphones can control the door. Ensure each user understands how to operate the door safely from the app.
5. Creating scenes and schedules
   Use the TaHoma app to create scenes (e.g. “Arrive Home”, “Goodnight”) and scheduled events where the garage door can open or close at set times or in conjunction with other devices such as lights or gates. Always consider safety when enabling automatic closing and use beams and safety edges as specified.
6. Integrating partner devices
   If desired, connect compatible devices such as Philips Hue lighting, Somfy blinds, awnings or gates to TaHoma and include the garage door in wider smart routines for a fully integrated experience.

Hoods, sealing and finishing

1. Fitting half or full hood (if specified)
   Position the hood sections over the roll and fix them to the endplates and any support brackets as shown in the instructions. Ensure the hood is secure and does not interfere with the moving curtain or guides.
2. Weather sealing
   Seal joints between guides, endplates and the wall with an appropriate external‑grade sealant. Check the floor line and consider a threshold seal if there are gaps or uneven areas.
3. Final inspection
   Check all fixings, cable runs and covers, remove any protective films and clean the curtain, guides and hood to leave a neat finished installation.

User handover and safety notes

• Demonstrate operation using the io handsets, wireless wall switch and the TaHoma app.
• Explain the function of the safety edge and beams and stress the need to keep the doorway clear while the door is moving.
• Show how the courtesy light and alarm behave in normal use.
• Demonstrate the internal manual override and, if fitted, any external low‑level manual release, and point out the mains isolator.
• Advise against boxing in guides, hood, motor or control units so that inspection and maintenance remain accessible.
• Remind the user that any changes to wiring, safety devices or smart control setup should be carried out by a suitably qualified person.

When installed and commissioned correctly, the Samson SRD77 Total Smart with Somfy Rollixo Premium and TaHoma Switch delivers a fully featured, safe and highly connected smart roller garage door, integrated into the wider smart home system.

Warranty Information – Samson SRD77 Roller Garage Doors

All Samson SRD77 roller garage doors are covered by comprehensive warranties on both the Somfy drive systems and the door assembly itself. These terms apply to all SRD77 models supplied by Samson Doors (Button, Semi‑Auto, Remote, Premium Remote and Smart Remote), subject to correct installation, operation and maintenance.

Somfy Motors and Control Equipment – 5‑Year Warranty

The following Somfy components are guaranteed for a period of 5 years from the date of original purchase:

• Somfy tubular motors used on SRD77 doors
• Somfy Rollixo and Rollixo Premium control units
• Somfy Optimo control panels
• Somfy remote handsets (Keytis, Keygo and similar Somfy RTS/io transmitters)
• Somfy wireless wall switches
• Somfy Connectivity and smart control modules
• Somfy safety devices such as optical safety edges and infra‑red safety beams

This warranty covers defects in materials and workmanship when Somfy equipment has been correctly installed, programmed and used in accordance with the manufacturer’s instructions.

Door, Finish and Non‑Somfy Controls – 2‑Year Warranty

The following items are covered by a 2‑year parts‑only warranty from the date of original purchase:

• Samson SRD77 roller door assembly (curtain slats, bottom rail, guides, barrel and endplates)
• Factory‑applied powder‑coat exterior finish to the curtain and guides
• Manual override winding mechanism and associated components
• Samson‑branded motors where supplied
• Genesis, Teleco Simple and C10 control units

The exterior finish to Samson SRD77 roller doors is guaranteed to provide an effective weatherproof membrane that will resist perforation of the substrate from the weather side due to corrosion for a period of 2 years from the date of purchase. This includes externally fitted reverse‑roll SRD77 doors. Any colour change or fade during this period will be limited and broadly uniform across the face of the door.

Scope of the Guarantee

Within the relevant warranty period, where a manufacturing defect is identified, the manufacturer will, at its discretion:

• Repair the defective component or part, or
• Replace the defective component or part with an equivalent item, or
• Provide technical support to help diagnose and rectify the fault

The warranty is parts‑only unless otherwise agreed. Labour and call‑out costs may be chargeable depending on the circumstances, door age and purchase arrangements. Full details are available from Samson Doors on request.

Exclusions and Limitations

The warranty does not cover faults, damage or failures resulting from:

• Incorrect installation or commissioning, including non‑compliance with the supplied fitting instructions or relevant UK regulations
• Improper electrical supply, wiring or connection
• Misuse, abuse, accidental damage or neglect
• Failure to carry out recommended cleaning, inspection and maintenance
• Alterations or modifications to the door, motor or controls not approved by the manufacturer
• Normal wear and tear, minor cosmetic blemishes, scratches or colour changes that do not affect function
• Exposure to corrosive substances, aggressive environments or abnormal atmospheric conditions
• Impact damage from vehicles, tools or other objects
• Storm damage, flooding, lightning or other events outside normal weather conditions
• Attempted forced entry, vandalism or tampering
• Use of the product in commercial or industrial environments where the door was supplied for domestic use only

Conditions of Warranty

• The SRD77 door must be installed by a competent person strictly in accordance with the instructions supplied.
• All electrical work must be carried out by a suitably qualified electrician.
• The door must be used only for its intended purpose and within its stated operating limits.
• Safety devices (including optical safety edges and infra‑red beams where fitted) must remain connected and operational.
• Routine checks and basic maintenance should be carried out at reasonable intervals.
• Any suspected fault should be reported promptly to avoid further damage.
• Proof of purchase must be retained and produced when making a warranty claim.

How to Make a Warranty Claim

1. Contact Samson Doors or your original installer with details of the problem, the SRD77 model and the purchase date.
2. Provide proof of purchase (invoice, receipt or order confirmation).
3. Describe the fault clearly and supply photographs or video if possible to assist diagnosis.
4. Allow access for inspection and repair if a site visit is required.

The manufacturer will assess whether the fault is covered under warranty and, if so, arrange repair or replacement of the affected part in line with these terms.

Legal Rights and Liability

This warranty is in addition to your statutory rights under UK consumer law and does not affect those rights. Advice about your legal rights is available from your local Citizens’ Advice Bureau or Trading Standards office.

Liability under this warranty is limited to the repair or replacement of defective components as described above. The warranty does not cover consequential or indirect losses, or damage to property or goods stored within the garage.

The warranty applies to the original purchaser and the original installation address only, unless otherwise agreed in writing by the manufacturer.

Measuring and Ordering Guidance – Samson SRD77 Total Smart

Ordering sizes for the Samson SRD77 Total Smart are based on the Over Guide Width (OGW) and Guide Height (GH). OGW is the overall width including both side guides. GH is the vertical height of the guides only and does not include the 300 mm required above for the roll and endplates.

Guide sizes and ordering width

• Doors up to 3000 mm wide use 75 mm guides on each side as standard.
• Doors over 3000 mm and up to 5200 mm wide use 90 mm guides on each side as standard.

To calculate your Over Guide Width (ordering width):

• For doors up to 3000 mm wide: OGW = structural opening width + 150 mm (2 × 75 mm).
• For doors over 3000 mm wide: OGW = structural opening width + 180 mm (2 × 90 mm).

Clear Opening Width will therefore be:

• Ordering width − 150 mm for doors up to 3000 mm wide.
• Ordering width − 180 mm for doors over 3000 mm wide.

Guide height, overall height and clear opening height

• The Guide Height (GH) is the ordering height and equals the vertical length of the side guides.
• The Overall Height required on site = Guide Height + 300 mm (to allow for the roll and endplates above the opening).

The approximate Clear Opening Height is:

• Guide Height − about 50 mm, allowing for the bottom slat to sit down into the guides when the door is fully open.

Behind‑fit installation

For a standard behind‑fit installation (door and guides fixed to the inside face of the opening):

• Measure the structural opening width and height.
• Use the formulas above to calculate the Over Guide Width (OGW) from the opening width.
• Use the desired clear opening height as your Guide Height, then check you have at least GH + 300 mm of headroom inside the garage.

Inbetween‑fit installation

For inbetween‑fit (between reveal) installations:

• Use the reveal width as your starting point and allow a tolerance (typically a few millimetres each side) so the guides will fit between the reveals without forcing.
• A half hood or full hood is usually recommended to cloak the roll and provide weather protection when fitting between the opening or under the lintel.
• Check that the internal reveal height can accommodate the Guide Height plus the 300 mm required above for the roll and endplates.

Allowing for fitting tolerances

When ordering for between‑fit installations, do not use the exact tight brick‑to‑brick width as your OGW. Always allow a small tolerance (typically 5–10 mm less than the measured reveal width overall) to account for walls that are not perfectly plumb or parallel and to give room for shimming and sealing. This makes installation easier and helps ensure the guides sit true without being forced into the opening.

If you are unsure about how to measure for a specific opening, particularly for inbetween‑fit or low‑headroom situations, please contact Samson Doors with your opening dimensions so they can confirm the correct ordering sizes before you place your order.
