Background Information about this Product

FireGuard

Fire Rated Steel Doorsets

Fire Rated Steel Doorset (Purpose Made Sizes)

Material: Steel
Gear Type: Hinged Doors
Enquiry Form
Call Us
Email Us
i
Enquire
Price on ApplicationPlease click enquire or call our sales team
Enquire
NEED HELP?
Let us help you complete your order
Enquiry form Call us Email us
  • Description
  • Specification
  • Warranty
Description

The Samson FireGuard Range consists of three high quality steel doorsets.
Each of these doors offer a certain number of time that the door can prevent the spread of fire in a building and their performance is greater than equivalent timber fire doorsets.

The doors have been tested to BS 476 Parts 20 & 22 and BS EN 1634; their individual fire protection figures are as below:

FD 60 - up to 1 hour
FD 120 - up to 2 hours
FD 240 - up to 4 hours

Each door is made to order for a perfect fit, an essential part of the fire protection.
A wide range of ironmongery can be specified depending on the environment and use within the building on a daily basis. Various door closers can be incorporated and there is a wide range of powdercoated colour finishes as well as laminate woodgrain finishes. Each side of the door panel can be a different finish if required and the outer frame can also match or is available in a different colour (powderocat finish only)

Fire Rated Steel Doors expand into their outer fixing sub frame frame under heat, sealing off the room where the fire has broken out preventing the spread of smoke and flames.
They play an important role in emergency fire procedures in any building and should be installed to help your building comply with fire safety legislation.
A steel doorset is a door and fixing frame preassmebled in a factory environment to ensure complete continuity of quality and specification. There is so much deabte now about the actual integrity of a fire rated door which is assembled from various components, more often than not from different sources, that it won't be too long before a 'doorset' is the only way to assure compliance. The risks involved are too high when a door is not built to an exacting standard to perform as originally tested and approved using All components from the same source to ensure a continuation of compliance.


Specification

The Samson FireGuard Steel Doorsets are for internal use and are designed to protect personnel and property from the spread of flames and smoke.

All fire-resistant doors are custom made.

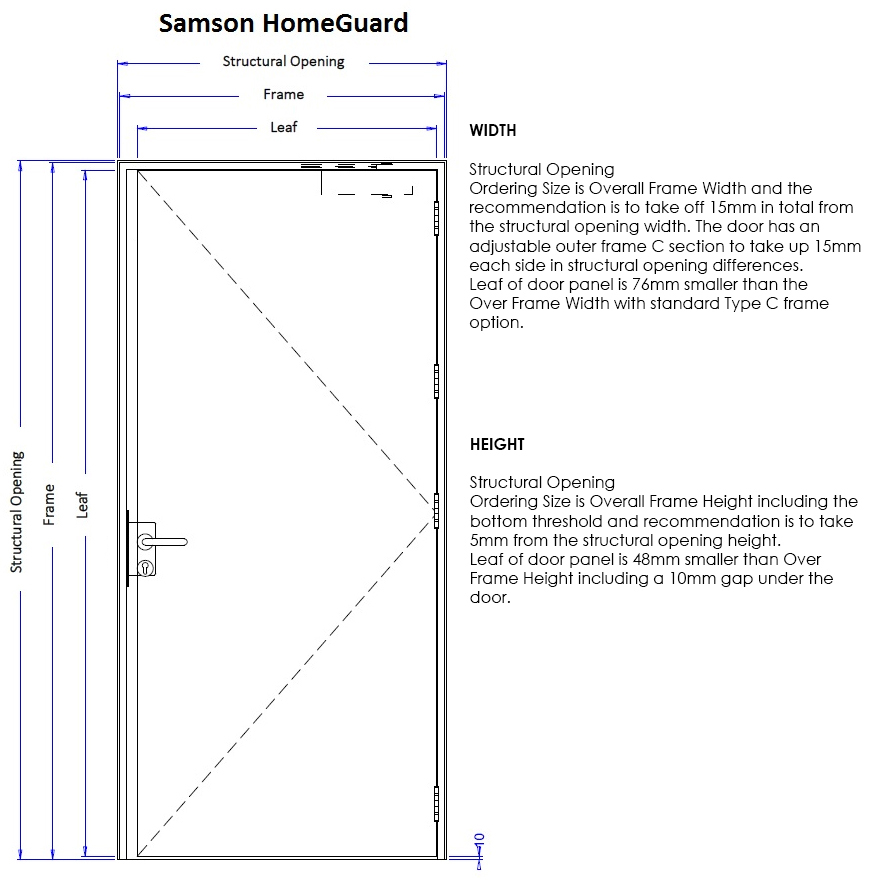

The maximum size varies according to fire ratings as shown below for Mild Steel and 316 or 304 Stainless Steel.

Door Leaf FD 60 FD 120 FD 240
Single Doors Latched (single swing) Max width: 1370mm
Max height: 2830mm
Max Area: 4.0m²
Max width: 1370mm
Max height: 2830mm
Max Area: 4.0m²
Max width: 1370mm
Max height: 2830mm
Max Area: 3.56m²
Single Doors Unlatched (single swing) Max width: 1300mm
Max height: 2500mm
Max Area: 2.96m²
Max width: 1300mm
Max height: 2500mm
Max Area: 2.96m²
Max width: 1300mm
Max height: 2500mm
Max Area: 2.96m²
Double Doors (single swing - latched or unlatched, equal or unequally split) Max width: 2650mm
Max height: 2830mm
Max Area: 4.0m²
Max width: 2650mm
Max height: 2830mm
Max Area: 4.0m²
Max width: 2650mm
Max height: 2830mm
Max Area: 3.56m²
Double Doors (double swing - latched or unlatched, equal or unequally split) TBC
TBC
TBC
TBC
TBC
TBC
TBC
TBC
TBC


Thickness: 54mm

Material: 1.2m Corrosion resistant Magnelis sheets as standard with a variety of colours and finishes available.

Infill: Self support resin impregnated homeycomb core with option of mineral wool available for improved acoustic performance.

Construction: A non welded construction from 2 skins of Magnelis folded around a rigid core. Stainless steel 240 minuted fire rated doors must be fitted with a 'Z' and astragel section to form a rebated meeting stile.

Door Frame:

Construction:
Folded from 1.5mm Magnelis. Screw and tab construction with 4 no adjustable fixing feet per jamb. Variable sub frame supplied as standard to accomodate site tolerance of -0/+30mm. Frame is fitted with 3 no class 13 hinges with 2 no dog bolts.

Profile:

Types A & B available in both Inward and Outward Opening Versions.

profile types a and b
profile types c and d

Wall Construction:

Construction:
All Samson Doors can be used in all forms of Masonry, Concrete and Flexible Stud Wall (cold wall style). When using timber or steel stud walls the client must ensure they have adequate evidence that the wall can support steel fire doors under fire conditions. FD 120 and FD 240 rated stud wall constructions should have the walls reveal face protected by a fire resting board to protect the wall construction.

Threshold:

standard threshold
optional threshold



Warranty

10-year anti-corrosion guarantee (subject to location).
