Samson Defender Extreme 2 SR3
Security Rated Steel Doorsets
LPS1175 SR3 Security Door - Double Leaf
Material: Steel
Enquiry Form
Call Us
Email Us
Web Price: £3,420.00
(Excluding VAT and £4,104.00 Inc. VAT)
1
Ordering
Web Price:
£3,420.00
(Excluding VAT and
£4,104.00
Inc. VAT)
NEED HELP? Call us on 01933 448 850
or click here to connect via our Live Chat
- Description
- Application
- Specification
- Installation
- Warranty
- Measure
Description

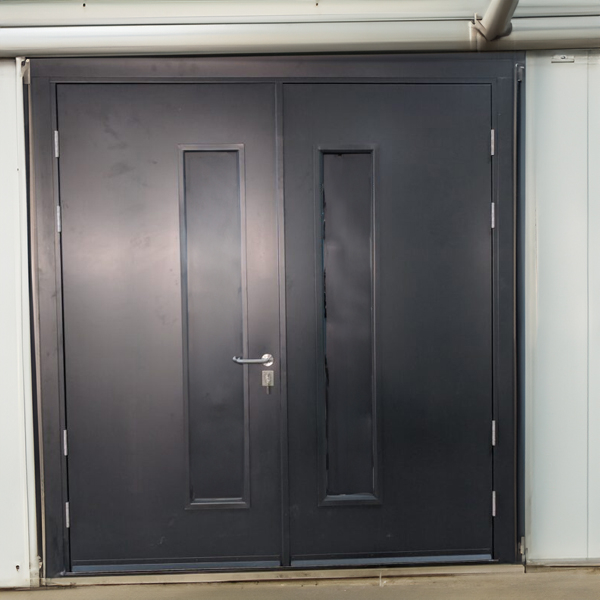

High security and high quality double leaf doorset with a choice of over 200 beautiful powdercoat colours to compliment any building.
The Samson Defender Extreme-2 Level 3 rated door is a custom built double leaf high security steel doorset offering C5 (SR3) certified rating, tested and accredited by BRE under the stringent requirements of LPS1175: issue 8. This is a serious steel doorset for a proper investment in security and a common misconception is that steel doors look ‘industrial’, but they really do not, with the right colour and high quality hardware.
This made to measure double leaf, double skinned, steel doorset is outward opening only for compliance. The whole doorset is manufactured entirely in the UK by Metador.
We offer a range for these doors which are security steel doorsets, stringently tested to the LPCB LPS 175 standard (issue 8), levels B3, C5 and D10. SR2, SR3 and SR4 are covered.
The door has a maximum width in the single leaf format of 2900mm wide (4900mm with side panel) and a height up to 2500mm (3440mm with top transom), including the outer steel fixing sub frame which is always factory fitted and complete with all relevant hardware and locking fitted too. It is readily available as a single leaf doorset too - Extreme-1 SR3.
There is an extensive range of hardware offering: locks, latches, handles, panic hardware, closers, and stays which are all approved to the LPS 1175 rating required.
The door and frame are powder coated to any RAL colour option with some key standard options offered for a faster turnaround. Marine grade option finishes are also available for any doors situated near to coastal locations.
The Defender Extreme is built to be an external steel doorset primarily, but can be used internally too, just be wary of the threshold arrangement and its suitability for your site. Optional thresholds can be fitted to assist with any relevant requirements, deeper and wider when required.
Options
A range of solid, glazed or louvered side and over panels are also available within the LPS1175 rating as well, depending on final sizing required.
Application
Any commercial or industrial building requiring very high levels of security at all times. SR3 steel doors are tested against a wider range of tools, including modern power tools to offer greater resistance to attack than SR2 rated doors. The doors are designed to resist an attack for at least 5 minutes when the intruders are not too bothered about some noise made either.
Not only do these doors offer greater levels of security, they are also manufactured to higher standards with stronger overall integrity and components used and therefore always tend to have greater longevity through their durability.
Specification
Some examples:
Maximum width for single door with fixing sub frame included: 2900mm
Maximum height for single door with fixing sub frame included: 2500mm
Security Rating: C5 (SR3) LPCB Ref no. 1284c/01
Door Leaf / Threshold
Galvanised steel double skin construction with varying panel thickness depending on security rating. Anti jemmy flange on leading edge to prevent forced attack attempts..
Standard DDA compliant chamfered threshold profile in 2mm stainless steel construction
Options for raised or extended cills, inward opening profiles with drainage or 4mm ramped design.
Integrated removable thresholds available.
Sub Frame
Galvanised steel sub frame with bolted corners and integrated silicone rubber seals bonded into frame for optimal weather thermal and acoustic performance.
Pre finished to latch the door colour or optional colour finish different to the door leaf.
Hardware
An extensive range of hardware options are available within the LPS1175 rating. Locks, latches, handles, panic hardware, closers and stays, which are all approved to the LPS 1175 SR3 rating.
Some examples:
Multipoint Sashlock with lever/lever handles
Thumbturn internally
Multipoint nightlatch with lever handle internally and pull handle externally
Mico Modula PE6 full width stainless steel push bar- Single leaf doorset
Mico MSR-1 PE6 & Mico MSR-2 PE6 Panic hardware - Double leaf doorset
Over Panels and Side Panels
A wide range of solid side or over panels are available to surround and extend the sizes for this doorset. Manufactured in double skinned steel and compliant within the LPS1175 rating these give greater scope for use in multiple applications.
With the overpanel and side panel the maximum sizes with SR3 compliance is 4900mm wide and 3500mm high.
Vision panels are available for this door - please enquire.
Installation
Please find installation instructions here
Nearly all our steel doorsets are delivered completely factory assembled with all hardware and sub frames fitted ready for the easiest on site installation. The doorsets will be heavy and we can provide the weight before delivery if required but they will often need mechanical offloading or 2 or more people to handle on delivery and installation.
Warranty
The Metador guarantee includes:
The frame and door sets are given 15 years guarantee subject to correct door installation and maintenance.
All our Ironmongery has a 1-year guarantee subject to correct usage and maintenance.
The Marine Grade PPC finish is guaranteed for a period of 10 years subject to the cleaning and maintenance programme.
At Metador the Standard Powdercoat finish is guaranteed for a period of 1 year subject to the cleaning and maintenance programme.
Guarantee Coverage:
Metador will repair or at our option replace any goods sold by Samson Doors to you which are, shown to our reasonable satisfaction to have become defective within the warranty period stated above from the date of purchase.
Where we have supplied a product with an internal defective component, we will only replace the defective component within the product.
‘Defective’ goods are those which under correct usage, do not function properly because of a fault in materials, workmanship or design.
We will replace any goods that are found to be defective on delivery, when reported within 3 working days of receiving the delivery. Photo graphic evidence must be provided showing the defective goods on the pallet that they were delivered on.
Guarantee Exclusions:
With Metador, there are some situations in which the guarantee does not cover, these include damage caused by:
Abuse, unsuitable or lack of maintenance and any other neglect that might occur.
Harmful cleaning solvents that may be used to clean the door
Incorrect installation of the door
Damage to the paint finish of the door which may include, scratches, washing and paint protection
Use of parts that are installed that are not advised by Metador
External impacts including weather
Repairs or fitting that have been supported by other persons
Fair wear and tear
It should be noted that for any guarantees or warranties to be valid, the cleaning and maintenance regime must be documented and recorded, confirming the frequency of maintenance along with all methods and products used. This must be submitted for any claim to be considered.
Claims Procedure:
The customer must contact Samson Doors or Metador in writing within 3 working days of the discovery of the defect, specifying the nature of the claim and defect.
On request, the customer must return the defective product to Metador Ltd at their cost for inspection.
Please find our Operation and Maintenance Manual here
Measure
A steel doorset is always ordered by the OVERALL dimensions including the door leaf and outer sub fixing frame with no tolerances allowed for. Most people would generally allow 5mm tolerance all the way around the door, but it all depends on how square or true your aperture is on site. This is up to your judgement based on the aperture quality.
This would mean if your structural opening size is measured as 2300mm width and 2100mm height the door and frame ought to be 2290mm wide and 2090mm high with the frame and any threshold included.
Always measure the top, middle and bottom of your aperture width and the left and right hand side for the height and if possible do a measure to make sure the opening is square as well.
Always use millimetres for measuring as this is how we relay back the ordering dimensions to you for checking and approving a drawing for your order.
We will always send a drawing for approval before manufacturing commences.
