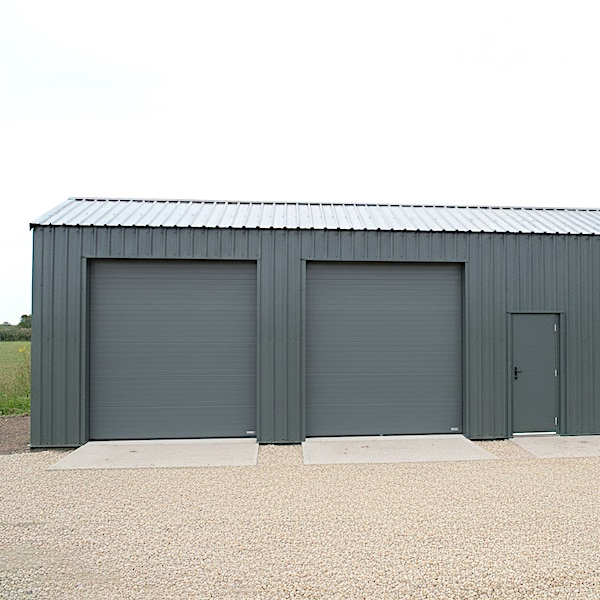

SeceuroDoor 77 Insulated Industrial Roller Shutter (Single-Phase Chain Drive)

The SeceuroDoor 77 Insulated with a single-phase 240V external chain drive motor is a high-quality, double-skinned steel roller shutter built to a robust 'Traditional' industrial specification. This model provides an excellent balance of thermal performance and accessibility, making it the ideal choice for medium-sized commercial and industrial openings where three-phase power is unavailable or unnecessary.

Combining the strength of insulated steel construction with the proven reliability of a GfA chain drive system, this door offers a significant upgrade over standard single-skin shutters. The minimal additional cost is far outweighed by the benefits of enhanced thermal efficiency, acoustic reduction, and quieter operation in windy conditions.

Single-Phase Chain Drive Technology

At the heart of this door is an externally mounted GfA single-phase 240V chain drive motor. GfA motors are universally recognized as the market leader, offering cutting-edge technology and intelligent control options.

• Standard Power Supply: The 240V configuration connects directly to standard UK mains electricity, eliminating the need for three-phase infrastructure and reducing installation costs significantly.
• Enhanced Torque via Chain Drive: The external chain drive mechanism provides a mechanical advantage, delivering higher torque capacity than compact tube motors. This is particularly beneficial for the heavier insulated curtain on medium-sized doors.
• Serviceability: The external motor mounting allows for superior accessibility during routine maintenance without needing to dismantle the door assembly.
• Medium Usage Rating: Single-phase 240V motors are typically specified for medium usage openings with average daily use. They provide excellent reliability for typical commercial applications with moderate daily cycles.

Insulated Curtain Construction

The curtain features a 77mm high profile slat with a 15mm depth (front to back). Each slat is filled with a CFC-free foam injected core, providing superior strength and rigidity compared to any standard single-skin profile.

• Double-Skinned Steel: Galvanised steel as standard for maximum corrosion protection and durability.
• Thermal Efficiency: Heat transmission of 4.01 W/m²K helps maintain stable internal temperatures and reduces energy costs.
• Structural Integrity: The foam core offers significantly more strength and reduces deflection across spans.

Thermal and Acoustic Benefits

The SeceuroDoor 77 Insulated combines the robustness of the popular SeceuroDoor 75 with the added advantage of insulation and enhanced acoustic performance.

• Quieter Operation: Because the slats have a deeper profile, more weight, and sit tighter in the guides, the curtain is significantly quieter—especially in high winds where single-skin doors tend to rattle.
• Energy Efficiency: The fine-pored PU rigid foam infill and minimal thermal bridges ensure good thermal insulation, while advanced curtain and sealing technology reduces noise transfer from both inside and outside the building.
• Cost-Effective Upgrade: This is a great insulated roller shutter door for so many applications and worth considering over a single-skin basic shutter, as the extra cost is minimal compared to the benefits offered.

Single-Phase vs Three-Phase: Making the Right Choice

Choosing the correct power supply is critical for long-term reliability and cost management:

Choose Single-Phase 240V if:

• You have standard domestic-style mains electricity and want to avoid costly three-phase installation.
• The door will operate a moderate number of times per day (e.g., morning opening, evening closing, and occasional use during the day).
• Your opening is up to 6m wide and 4m high (20m² maximum area).
• You want the serviceability advantages of an external chain drive motor.

Consider Three-Phase 415V if:

• The door requires high-frequency operation (20+ cycles per day) or intensive continuous use.
• You have existing three-phase electrical infrastructure in place.
• You require a more compact direct drive motor configuration.

Comprehensive UK Manufacturing & Compliance

All SeceuroDoor products are proudly manufactured in the UK by an ISO9001 and ISO14001 certified company.

• Compliance: Fully CE or UKCA marked, ensuring total compliance with UK regulations for commercial use. (Approved LPCB security products are also available).
• Made to Measure: Every door is manufactured to your exact opening dimensions as standard for a perfect fit.
• Quality Components: We use only the highest quality components and genuine GfA drives to deliver the most reliable overall package.

Warranty & Peace of Mind

Benefit from an exclusive extended 2-year warranty on the GfA industrial motor when registered using the GfA Bluetooth dongle. This smart technology allows you to track usage cycles, drive settings, and fault codes, simplifying maintenance and fleet management.

Typical use for this 77mm insulated door would be on any commercial building, office or warehouse where there were around 30 - 40 operations per day, or less. Workshop, small factories, warehouse, any heated building.

If you require higher usage please email or call us directly for the options available.

Technical Specification

Curtain Construction

The SeceuroDoor 77 features a high-performance dual-walled steel profile with a foam injected core construction. The 77mm lath design delivers exceptional strength and enhanced thermal performance compared to standard single-skin profiles.

• Lath Profile Height: 77mm nominal
• Lath Depth: 15mm (front to back)
• Construction: Double-skinned galvanised steel with CFC-free polyurethane foam infill
• Core Material: Fine-pored PU rigid foam for thermal and acoustic insulation
• Standard Finish: Galvanised steel as standard for maximum corrosion protection

Thermal Performance

Outstanding heat transmission performance ensures energy efficiency and environmental control across industrial premises, warehouses and commercial buildings.

• Heat Transmission (Single Slat): 4.01 W/m²K
• Minimal thermal bridges throughout door assembly
• Fine-pored PU rigid foam infill ensures good thermal insulation
• Advanced curtain and sealing technology reduces noise transmission from inside and outside
• Significantly quieter operation than single-skin profiles with reduced curtain rattle in high winds

Maximum Dimensions and Coverage

• Maximum Width: 6000mm (6 metres)
• Maximum Height: 4000mm (4 metres)
• Maximum Area: 20m²

Guide Arrangement Options

Choice of guide arrangement options to suit different installation requirements and building configurations:

• Face fitting - Inset angles
• Face fitting - Outset angles (typical arrangement)
• Reveal fitting
• Standard Guide Angle: 75mm x 50mm (Other sizes available on request)

Colour Finishes and Coating Options

This insulated roller shutter door is available with the curtain in galvanised steel or prefinished in a high-quality powdercoat finish, which is applied to both sides of the slat.

Standard Finish

Galvanised Steel: Natural galvanised steel finish offering maximum corrosion resistance and durability at no additional cost.

Powder Coated Finishes

All powder coated colours are supplied in a Satin finish as standard and incur an additional charge of £288.00 per door (excluding VAT). Matt and Gloss finishes are available on request; please email or call for pricing.

Note: We can offer special colours outside of this standard range. You can also mix and match colours for the guides, hood cover, and curtain if required. Please contact us for details and prices.

Motor Specification - GfA Single-Phase Chain Drive

The electric chain drive 240V single-phase GfA industrial motor represents advanced roller shutter automation technology specifically designed for commercial and industrial installations operating on standard UK mains electricity supply.

Single-Phase Chain Drive Motor Features

• Power Supply: Single-phase 240V (Standard UK mains specification)
• Drive Type: External chain drive with motor mounted externally
• Power Transmission: Industrial chain mechanism for enhanced torque capacity
• Advantages: No three-phase electrical infrastructure required, significantly lower installation costs
• Motor Position: Externally mounted for superior maintenance accessibility
• Usage Rating: Suitable for medium usage applications with moderate daily cycles
• Ideal For: Commercial premises, workshops, smaller industrial units with standard electrical supply
• Limits: Digital DES limits as standard for precision positioning
• Emergency Operation: Low-level hand chain operation as standard
• Certification: Certified to BS EN 12453 and BS EN 12604
• Diagnostics: Built-in fault diagnostics and maintenance counters
• Design: Sealed maintenance-free motor with accessible external positioning
• Chain Tension: Adjustable chain tension system for optimal long-term performance

Chain Drive vs Direct Drive Configuration

The external chain drive system offers distinct advantages for single-phase installations:

• Enhanced torque capacity through mechanical chain transmission for heavier insulated curtains
• External motor mounting provides excellent accessibility for routine servicing
• Mechanical advantage reduces motor strain during operation
• Suitable for doors where insulated curtain weight benefits from additional lifting power
• Chain tension adjustability ensures optimal performance throughout operational lifetime

Extended GfA Motor Warranty

Exclusive 2-year extended warranty available on GfA industrial motors when registered using the GfA Bluetooth dongle.

• View and track all registered GfA assets in one central location
• Monitor ongoing usage patterns and maintenance requirements
• Keep track of drive settings over time
• Access comprehensive library of fault codes for rapid diagnosis
• Synchronise service records for fleet management

Control Options

The electric chain drive 240V motor can be controlled by various methods to suit operational requirements, safety considerations and budget:

Control Package 1: Hold-to-Run Push Button Station

The most basic method is an internal wall-mounted push button station with a hold-to-run logic. You stand and hold the button firm for the duration of the opening or closing cycle and this way no safety edge or beam systems are legally required, keeping the costs to a minimum. Of course you must be able to enter the building via another door for this method.

• Simple 3-button operation (up, stop, down)
• Wall-mounted surface installation
• Hold-to-run operation for complete manual control
• Most economical control option
• Suitable for low to medium usage applications
• Internal access required

Control Package 2: Remote Control - Seceurosense Control Panel

Remote control operation with 2 handsets supplied as standard. Additional handsets available if required.

• Wall-mounted control panel with remote operation
• 2 x 4-channel remote handsets supplied as standard
• Impulse operation (press-and-release)
• Suitable for multi-user applications

Control Package 3: Safety Edge System - TS971 Control Panel

The second option is a wall-mounted control panel which can be programmed to have an impulse operation meaning you simply push the up or down button momentarily and the door will auto-operate and has safety edge detection built in with the bottom T rail section to stop if an obstacle is met.

• Simple plug-and-play installation
• Impulse operation (press-and-release)
• Integrated wired safety edge system for reliable object detection
• Ground-level limit setting via control panel
• Digital fault diagnostics display
• Maintenance cycle counters
• 2 x remote control handsets included

Safety Note: If the door is adjacent to any public pathway or road, we suggest additional safety with infrared beams to further enhance safety.

Bottom Rail Options

• Standard T Rail
• T Rail prepared for hard wired safety edge
• T Rail prepared for wireless safety edge
• T Rail with D rubber weather seal

Manufacturing and Compliance

• Proudly manufactured in the UK at SWS dual production facilities (Lancaster and London)
• CE or UKCA marked: Full compliance with UK building regulations required for commercial use
• ISO9001 quality certified manufacture
• ISO14001 environmental certification
• Made-to-measure as standard for perfect fit at no extra charge
• Using the highest quality components and electric motor drives
• Approved LPCB products also available

Suitable Applications

This is a great insulated roller shutter door for so many applications and worth considering over a single-skin basic shutter as the extra cost is minimal compared to the benefits offered:

• Medium-sized commercial openings where three-phase power is unavailable
• Workshop security with thermal performance on standard electrical supply
• Smaller warehouse internal and external openings
• Commercial units and retail premises with moderate daily use
• Agricultural buildings requiring temperature control without three-phase infrastructure
• Loading bay doors where noise reduction is important
• Locations where external motor accessibility is advantageous for maintenance
• Cost-effective installations avoiding three-phase electrical upgrades

Installation Configuration Options

SeceuroDoor 77 can be supplied in various configurations to suit structural requirements:

• Face fitting - Outset angles (typical arrangement)
• Face fitting - Inset angles
• Reveal fitting (underneath lintel)
• Full hood cover available (required if no fascia in place)
• Choice of motor side: Left hand or Right hand (looking from inside)
• External motor positioning optimised for chain drive accessibility

Performance Benefits Summary

• Superior thermal insulation compared to single-skin doors
• Reduced noise transmission creating quieter working environments
• Quieter curtain operation in high winds due to tighter guide fit
• Enhanced strength from foam-injected dual-wall construction
• Reliable single-phase chain drive motor for moderate daily use
• No three-phase electrical infrastructure required - connects to standard UK mains
• External motor mounting for superior maintenance accessibility
• Enhanced torque capacity through mechanical chain transmission
• Cost-effective upgrade over basic single-skin shutters
• UK manufactured with full compliance and warranty support

SeceuroDoor Product Warranty

All SeceuroDoor products, including the industrial motor, are guaranteed against defects of material or workmanship by SWS UK, subject to correct installation, maintenance and operation, for a period of 1 year from the date of purchase. This comprehensive warranty provides peace of mind and protection for your investment in premium industrial door solutions.

Extended Warranty for GfA Motors

An exclusive extended 2-year warranty is available on GfA industrial motors when you register each drive using the GfA bluetooth dongle. Registration is straightforward and provides additional benefits including viewing and tracking all registered GfA assets in one place, monitoring ongoing usage patterns, keeping track of drive settings over time, accessing a comprehensive library of fault codes, and synching your service records.

Warranty Coverage

SWS UK will replace or repair any components of our products where the manufacturing process has resulted in a defect occurring during the relevant warranty period, subject to the exceptions and conditions detailed below. For all replacement electrical parts, the warranty period is 12 months or the remainder of the original warranty period, whichever is the longest.

Warranty Limitations and Exclusions

The SeceuroDoor warranty does not cover the following circumstances:

Visual Quality Standards

• Marks, distortion, stains, blemishes, indentations or scuffs which are not observable from at least 3 metres away in natural light (not direct sunlight)
• Minor variations in finish associated with the manufacturing process
• Impact damage or scratches, dents, scuffs or other minor abrasions occurring post-installation

Installation and Maintenance Issues

• Incorrect installation of the product, not following SWS UK's installation instructions
• Incorrect operation of the product or lack of proper care and maintenance in accordance with SWS UK's Operating & Maintenance Manual
• Any modifications made to the product by anyone other than SWS UK
• Use or attempted use of non-SWS UK spare parts
• Repairs or attempted repairs undertaken by any person other than someone specifically authorised by SWS UK
• Any attempt to reduce operating clearances by means of infills or draughtproofing

Normal Wear and Environmental Factors

• Normal wear and tear from regular usage
• Accidental or malicious damage from third parties
• External influences such as extreme or abnormal weather conditions, fire, water, salts, chemicals and bird droppings
• Any fault or surge in the customer's electricity supply
• Any failure of masonry or other structures onto which the product has been fixed

Coastal and High-Corrosion Environments

• Rust or corrosion caused by exposure to saltwater or salty air for products installed within 500 metres of the sea or a large body of saltwater
• For products installed within 2 miles of the sea, the exterior finish of the product is guaranteed for a limited period of 2 years only (regular weekly cleaning with warm water and mild detergent is essential)

Consumables and Consequential Costs

• Consumable items such as fuses, light bulbs or batteries
• Indirect, special or consequential loss or damage howsoever caused, including remedial work costs, call-out fees, tool or plant hire and transport costs

Important Warranty Conditions

The SeceuroDoor warranty covers parts only and does not cover labour costs or consequential costs. This includes but is not limited to call-out fees, transport costs and costs for remedial work for removing and/or re-installing faulty parts. All warranty claims must be reported promptly to allow for timely assessment and resolution.

Product Care Requirements

To maintain warranty validity and prolong the life of your SeceuroDoor product, correct operation and care in accordance with the official Operating & Maintenance Manual is essential. Regular maintenance includes wiping with a damp cloth and mild detergent to remove excessive dirt and grime, ensuring the floor is kept smooth, level and clear of dirt and debris which can damage the rubber seal, and conducting visual inspections to identify any issues before they develop into major problems.

Coastal Installation Requirements

Products installed in coastal environments or high-corrosion areas require enhanced maintenance protocols. Regular cleaning of products in locations within 2 miles of the sea is especially important. Doors should be cleaned thoroughly weekly using warm water and mild detergent with a soft cloth or sponge, allowed to dry naturally. Never use strong detergent, abrasive, caustic or solvent-based cleaners as these will void the warranty.

Visual Quality Assessment Standards

We recommend performing a visual quality check on installation. Carry out the quality check in natural daylight, not direct sunlight. Stand at a distance of 3 metres from the product to view the overall appearance. The product is acceptable if, taking into account the manufacturing process, none of the following is readily visible on the face of the product: marks or distortions associated with the manufacturing process, minor indentations, marks or scuffs on the surface, or paint or stain blemishes.

Making a Warranty Claim

For warranty claims or technical support, please contact Samson Doors on 01933 448 850 or email enquiries@samsondoors.co.uk. Please have your order details, installation date, and a clear description of the issue available. Our technical team will assess the claim and arrange appropriate resolution in accordance with the warranty terms.

Protecting Your Investment

Regular professional servicing and maintenance by qualified engineers will help ensure optimal performance and longevity of your SeceuroDoor product. Samson Doors offers comprehensive maintenance contracts and emergency repair services across the UK to keep your industrial doors operating reliably year after year.

Measuring Guide for SeceuroDoor 77 Traditional (Industrial Motor)

Understanding Ordering Dimensions

The measuring, pricing and ordering dimensions for any electric roller shutter door with an industrial electric motor drive are based on the OPENING WIDTH and GUIDE HEIGHT, excluding the guides for the width and endplates for the height. This measurement principle applies regardless of whether it is a single phase or three phase electric motor system.

Key Measurement Rules:

• OPENING WIDTH (between guides) = Ordering Width
• GUIDE HEIGHT (endplates excluded) = Ordering Height

See measuring diagram below for visual reference.

Traditional Build Installation Considerations

The Traditional build roller shutter door uses heavy-duty steel guides and steel angle profiles for installation, which can all be specified to suit different installation requirements and fixing configurations. This flexibility makes the Traditional build ideal for challenging or non-standard openings.

Overall Width at Endplate Level

The overall width at high level where the endplates are fitted will be wider than the overall guide width, and can be wider still depending on the choice of inboard or outboard motor setup.

The electric motor side with an outboard motor configuration requires more side room than the non-motor side at endplate level. Chain drive or direct drive motor choice will also vary the width required for the motor assembly.

Manual Override Access

The emergency manual override included as standard is positioned on the same side as the motor internally and is accessed directly underneath the endplate. Other positions may be available on request to suit specific site conditions.

Endplate Size Variations

The endplate size will vary depending on the door model and height, and therefore the size of the curtain roll when fully opened and rolled up. Please be aware to check the drive-through height and endplate dimensions if your headroom is critical.

Installation Methods

Face Fit - Behind the Opening (Recommended for Traditional Build Industrial Doors)

Most industrial roller shutter doors are installed to the inside face of the aperture. In a perfect scenario, your daylight opening dimensions are the space between the guides and underneath the endplate dimensions. However, it is important to note that any roller shutter will always have a 'hang down' when opened fully, making the final drive-through height slightly less than the height of the guides.

This hang down is normal and varies on different models depending on the curtain specification and roll diameter. If your opening drive-through height is critical, please speak to us first to determine the best height to order for your specific application.

Reveal Fit - Between the Opening

Some roller shutter doors are installed between the aperture opening (reveal fit), and this is where the electric tube motor roller door arrangement works particularly well, as all components are positioned inboard from the ordering dimensions.

You can install any roller shutter door between an opening, but please note that industrial motor-driven models require some additional steelwork or sub-framing to make them fit between the reveal properly and securely. The Traditional build's adaptable steel guide and angle system makes this easier to achieve than with fixed Continental-style arrangements.
