Hormann HG Industrial Roller Shutter Grilles

Safety with Good Ventilation and a Clear View

The Hormann HG roller grille is the perfect solution to good visibility, high ventilation and outstanding security. The most common use is for car parking facilties with high traffic volumes and where ventilation is required, underground parking or any building requiring constant ventilation but good levels of security and a reliable roller door system for minimum disruption.
It is equipped as standard with a burglar-deterrent security shutter kit to prevent forced entry. When the grilles are electrically automated, a roll-up safety device and closing edge safety device prevent injuries and damage to the curtain. For maximum security, we recommend the implementation of a through-traffic photocell.

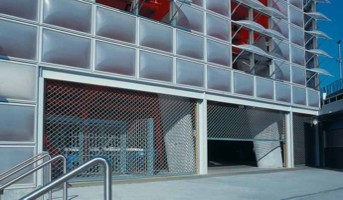

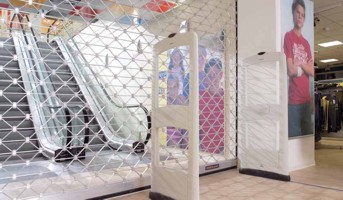

Hormann HG roller grille installed in large department shophormann hg roller grille installed on exterior car park and storage facility



The Hormann HG range of roller grilles is the superb answer if a shutter is only operated a few times each day, e.g. in shopping arcades. Grille and honeycomb connection designs are offered as standard in bright-rolled aluminium. On request high-grade powder-coated in factory colour off-white (similar to RAL 9002), in colour shades to RAL or NCS or anodised to DIN 17611 in natural colour(E6/EV1).

Hormann HG Rolling Grille Colours

Colours are often underestimated when purchasing large building products. In modern industrial and commercial architecture, coloured shutters are increasingly used as key design elements. Primarily due to their vast size, rolling shutters already play a key role in determining the visual appearance of the facade. This is why we offer you rolling shutters and rolling grilles in over 1000 colours based on the RAL and NCS colour charts.

If you don't like any of our suggested colours below, More than 1000 colour shades are possible - click here to view all colours!


Grey White
RAL 9002
White Aluminium
RAL 9006

Grey White (RAL 9002) and White Aluminium (RAL 9006) are the standard colours for all of our industrial roller shutters.

Preferred Colours

Flame Red
RAL 3000
Azure Blue
RAL 5009
Gentian Blue
RAL 5010
Leaf Green
RAL 6002
Pebble Grey
RAL 7032
Terra Brown
RAL 8028
Grey Aluminium
RAL 9007

Large Industrial Roller Grille Installations

Samson Doors specialise in the supply and installation of uniquely made large roller shutters to various buildings such as aircraft hangars, car ports, factories, storage facilities and large manufacturing buildings.

We offer fascia panels and fixed assemblies when gaps need filling in between the lintel and the opening width, wicket doors, external rolling shutters and angled bottom profiles to accommodate ramps and steps.

For more information on large roller shutters, contact us via email or phone us on 0800 328 6250

large roller shutter with window partitions large roller shutter installed on aircraft hangar offering security uniquely constructed to aircraft

Roll-up & closing edge safety
When shutters are automated, a roll-up safety device and closing edge safety device prevent injuries to persons and damage to the actual curtain. For underground garages and forklift truck traffic an optional through-traffic photocell is recommended.

Hormann HG Rolling Grilles Frame Profiles

The Hormann HG is available in 5 profiles; HG-A Standard Aluminium, HG-V Reinforced Aluminium, HG-S Robust Steel, HG-E Stainless Steel and HG-L Lightweight Aluminium.

HG-A - Standard Aluminium profile
For small openings or if a shutter is operated only a few times each day e.g. private access, night-time closures. Grille and honeycomb connections are available as standard in bright-rolled aluminium. On request high-grade poder-coated in factory colour grey white (Similar to RAL 9002), in colour shades to RAL or NCS or anodised to DIN 17611 in natural colour (E6/EV1).

HG-V - Reinforced Aluminium profile (not pictured)
For wider structural openings or a higher number of operations per day, such as underground garages or multi-storey car parks. The grille is constructed from bright-rolled aluminium with reniforced honeycomb connections in bright rolled stainless steel (V2A). It is lightweight yet offers high stability for wider openings.

HG-S - Robust Steel profile
The inexpensive model for wider openings and offers a high number of cycles for regular use. The grille and honeycomb connections are in galvanised steel as standard. Available on request in a high-grade powder-coated layer in factory colour grey white (similar to RAL 9002) or in a colour shade to RAL or NCS.

HG-L - Lightweight Aluminium profile
The elegant and space-saving version, particularly suitable for use in
shopping arcades. Aluminium grille and honeycomb connections with crossbars as trap guards and to provide additional reach-through protection. On request in colours according to the RAL and NCS colour charts or anodised to DIN 17611 in natural colour (E/EV1).

Hormann HG Rolling Grilles Technical Details

  HG-A HG-V HG-S HG-L
 (view in our shop) >  (view in our shop) >    (view in our shop) >

Width up to
Height up to
8000mm
8000mm
11750mm
8000mm
11750mm
8000mm
6000mm
4500mm
Material Aluminium Aluminium Steel Aluminium
Curtain weight approx 6 kg/m² approx 7 kg/m² approx 14 kg/m² approx 6.5 kg/m²
Surfaces without colour coating Bright-rolled Bright-rolled Galvanised Bright-rolled
Surfaces with colour coating Colour coating to choose or anodised in a natural finish (E6/EV1) - Colour coating to choose Colour coating to choose or anodised in a natural finish (E6/EV1)
Door type Classic rolling grille Classic rolling grille Classic rolling grille SB rolling grille
