The May Centre Post Umbrellas are designed and manufactured in Germany and are customised to suit your requirements.

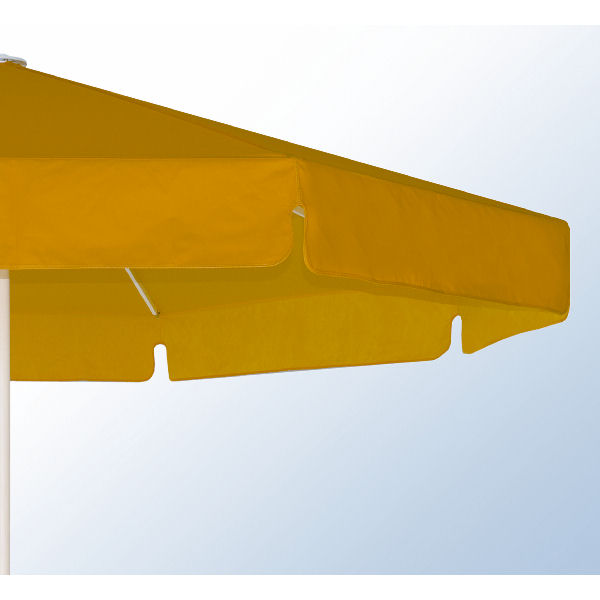

The Filius Umbrella is available with or without a valance and comes as standard with a protective sleeve.
The Parasols are available round, square or rectangular:
> 3.0m round umbrella has 8 panels approx 7m²
> 3.5m round umbrella has 8 panels approx 9m²
> 4.0m round umbrella has 8 panels approx 12m²
> 1.5m x 1.5m square has 4 panels approx 2.25m²
> 2.0m x 2.0m square has 4 panels approx 4m²
> 2.5m x 2.5m square has 8 panels approx 6.25m²
> 3.0m x 3.0m square has 8 panels approx 9m²
> 3.5m x 3.5m square has 8 panels approx 12m²
> 2.25m x 3.05m rectangular has 8 panels approx 7m²
> 3.0m x 4.0m rectangular has 8 panels approx 12m²

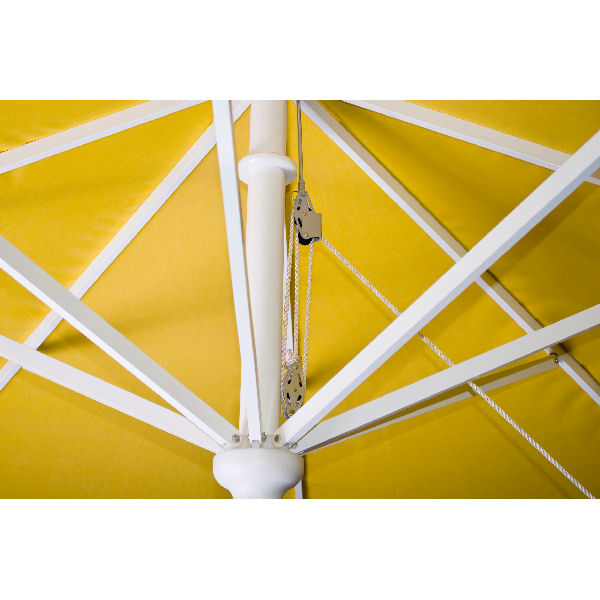

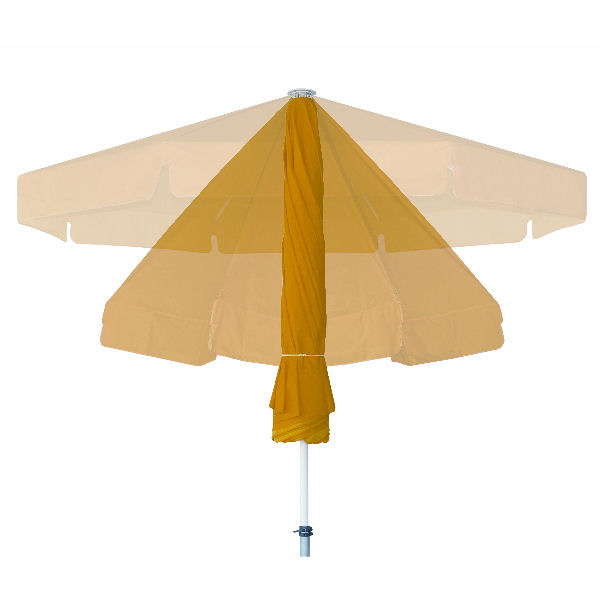

The Filius closing function:
Installation options allow the umbrella to be mobile or stationary:
| Mobile Installation Options for the May Filius Umbrellas |
|
|
|
 |
.jpg) |
 |
 |
Full Frame Pedestal
(without slabs) |
Full Frame Pedestal
(for slanting surfaces - without slabs) |
Cross Pedestal
(without slabs) |
Granite Base |
| frame size 84cm x 91cm, total height 33cm, galvanised, weight approx 23kg. For 1 set of standard concrete slabs 40 x 40 x 5cm. |
with 4 rubber diagonal support levelling screws, frame size 84 x 91cm, total height min. 34cm, max. 40cm, weight approx 24kg, galvanised. For 1 set of standard concrete slabs 40 x 40 x 5cm. |
mounted with screws, frame size 83 x 83cm, total height 28cm, weight approx 4.5kg, galvanised. For standard concrete slabs 40 x 40 x 5cm. |
2 pieces, round, grey, polished, 4 recessed grips, stainless steel surface, weight approx 100kg. |
Stationary Installation Options for the May Filius Umbrellas |
|
|
|
 |
 |
|
|
Anchor Tube
(to be embedded into concrete) |
Wall Bracket |
|
|
| 2 pieces, screw off upper part, galvanised, weight approx 4.7kg, incl top plate for winter protection. |
galvanised, weight approx 5.5kg, wall plate 30 x 16cm. Bottom of support pole rests on bottom end of anchor tube. |
|
|
The Fabric Colours are MayTex-Acryl with Texgard impregnation
• 100% branded acrylic fibre, spun-dyed, weight approx. 300 g/m²
• high water tightness and water pressure resistance -
37 hPa (water column 370 mm)
• weather-proof, high and low temperature resistant
• rot-resistant
• effective protection against oil, grease, mildew and algae, industrial
pollution, exhaust fumes and other negative environmental factors
• extremely high light and colour fastness
• tested acc. to Öko-Tex standard 100 as well as UV standard 801
|
 |
 |
 |
|
|
