Fort gdo pro 51mm kingsbury vertical rib with window ral colours steel side hinged garage doors

Traditional Design with Natural Light Integration

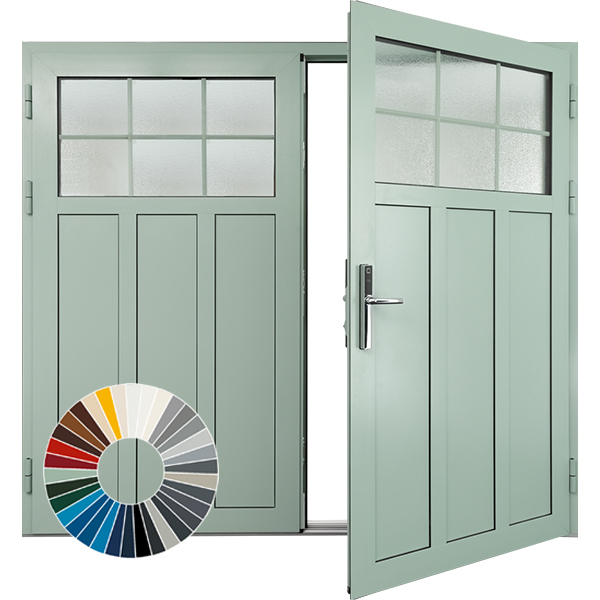

The Pro 51mm Kingsbury Vertical Rib with Window steel side-hinged garage door combines classic carriage house styling with modern construction excellence. Featuring integrated glazing positioned at the top section of each door leaf with vertical rib panels below, this design creates a balanced, elegant composition that suits both traditional and transitional UK properties. The door is available in an extensive range of RAL colours to perfectly match your home's exterior colour scheme.

The Kingsbury design showcases integrated windows that provide natural light entry whilst maintaining privacy at lower levels. The vertical ribs beneath the windows create clean, orderly lines that complement the glazed sections above. Frosted or textured glass options provide light transmission whilst preventing visibility into your garage space. This design blends functionality with charm, offering a carriage house aesthetic whilst the 51mm double-skinned insulated steel construction ensures outstanding thermal performance and security.

Advanced 51mm Insulated Construction

Manufactured using Fort's premium Pro 51mm insulated panel system, this door combines a robust 51mm double-skinned outer aluminium frame profile with steel insulated panel inserts and integrated window frames. The advanced polyisocyanurate (PIR) thermal core delivers industry-leading insulation performance with a U-value of 1.4W/m²K. The windows are positioned to maximise natural light entry whilst maintaining structural integrity. The thick panels offer superior acoustic insulation whilst the robust construction delivers enhanced security.

Security Features and Hardware

The Fort Pro 51mm range incorporates advanced security features as standard. A 3-point locking system with mortice lock and twin hook bolts provides secure multi-point engagement, whilst the 3-star anti-snap euro profile cylinder resists attacks. Concealed shoot bolts on the inactive leaf prevent forced opening. The robust lever handle features internal thumb-turn operation. Door stays are fitted as standard. Optional smart access systems with fingerprint recognition and smartphone app control are available.

Configuration and Finish Options

Available in 50/50 split or 1/3 - 2/3 split configurations. The windows feature frosted or textured glazing for privacy whilst allowing natural light. Choose from 32 powder-coated RAL colours including Pure White (RAL 9010) and Anthracite Grey (RAL 7016). The high-quality powder coating is applied to both door leaves and steel sub-frame. Double weather seals and a thermally broken threshold ensure maximum thermal performance. External hinges are 3D adjustable for perfect alignment. Supplied made-to-measure as pre-assembled doorsets. Manufactured in the UK with a 10-year warranty.

Summary of main door features:

Insulated steel side hinged doors for use as a garage door or light commercial applications where insulation is required. Security is high as standard along with the robust panel construction.
Ideal for any garage or workshop which is heated and would benefit from insulated doors too.

Choose from 32 standard colours which also includes the outer fixing sub frame. 3 colours are standard with no charge and the optional 29 other colours have a small additional charge

Optional RAL special colours are always available on request.

9 different lever handle finishes are available at the same price or choose a chrome finished smart lock system at extra cost allowing finger print recognition for entry. This system is in a chrome finish as standard.

Roller bar locking and fixed straight vertical pull bars in stainless steel are available externally in 1200mm or 1600mm lengths at extra cost.

50:50 door split
1/3rd and 2/3rd split optional with limited maximum width sizes of 2438mm
Minimum width for doors is 1500mm overall
Minimum height for doors is 1500mm overall

Doors open outwards as standard but on request you can have the door opening inwards at extra cost in manufacturing. The seals will not perform as well with the doors opening inwards.

Included as standard:

• Door stays operated from inside
• 3 star anti snap locking
• 3D adjustable hinges
• Outer fixing sub frame in aluminium box section with multiple seals
• Concealed shoot bolts top and bottom of inactive door leaf
• 3 point mortice and twin hook locking

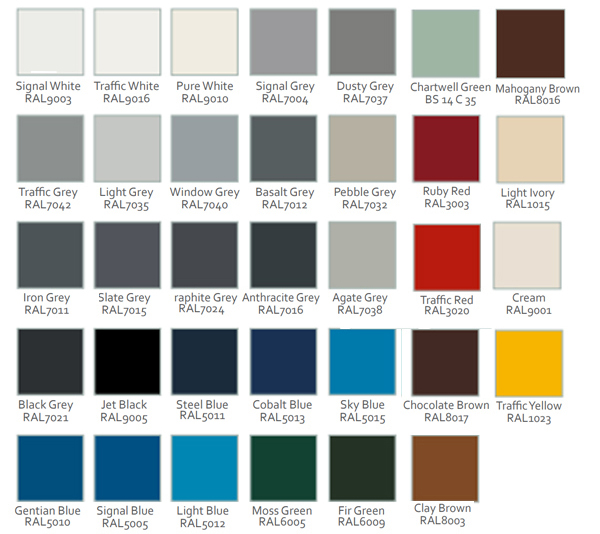

Choose from the classic low gloss solid colours as below:

Standard Free of Charge Colours:

White RAL9016
Black RAL9005
Grey RAL7016

PREMIUM COLOURS WITH SMALL SURCHARGE:

Signal Grey RAL7004
Dusty Grey RAL7037
Traffic Grey RAL7042
Light Grey RAL7035
Window Grey RAL7040
Basalt Grey RAL7012
Pebble Grey RAL7032
Iron Grey RAL7011
Slate Grey RAL7015
Graphite Grey RAL7024
Agage Grey RAL7038
Black Grey RAL7021
Steel Blue RAL5011
Cobalt Blue RAL5013
Sky Blue RAL5015
Gentian Blue RAL5010
Signal Blue RAL5005
Light Blue RAL5012
Moss Green RAL6005
Fir Green RAL6009
Chartwell Green BS14 C 35
Ruby Red RAL3003
Traffic Red RAL3020
Chocolate Brown RAL8017
Clay Brown RAL8003
Mahogany Brown RAL8016
Light Ivory RAL1015
Cream RAL9001
Traffic Yellow RAL1023

These side hinged doors have been designed as most other preassembled side hinged doors we offer online with all the relevant parts already pre fitted in the factory process. The doors are delivered to you as a complete assembled doorset ready to install.

Installation instructions can be found to the left hand side in our downloads section.
Simply offer the doors with their prefitted fixing sub frame into the opening and secure the fixing frame and adjust levels in the process with the 3d hinges fitted and adjustable locking
A level floor is essential for the best results and a square aperture also makes installation easier but there are adjustments all round and in all directions.


The standard guarantee of 2 years is given to the holder of the product that covers all parts and the door panel, providing the serial number is readable, intact and in place. Factory applied paint finishes are 2 years on steel doors that have standard colours applied.

The product is given a 2 year warranty for hinges and locking for normal use whereby normal use consists of no more than 5 operations (open/close) per day. We recommend the product is inspected and serviced annually by a competent engineer from the garage door industry, the warranty for parts replaced by an engineer or for supply only is 6 months or for the remainder of the warranty period. If warranty work is carried out the product guarantee does not extend past the anniversary of installation/ supply date.
