SeceuroGuard 1000 Bi Folding Door Security Grille

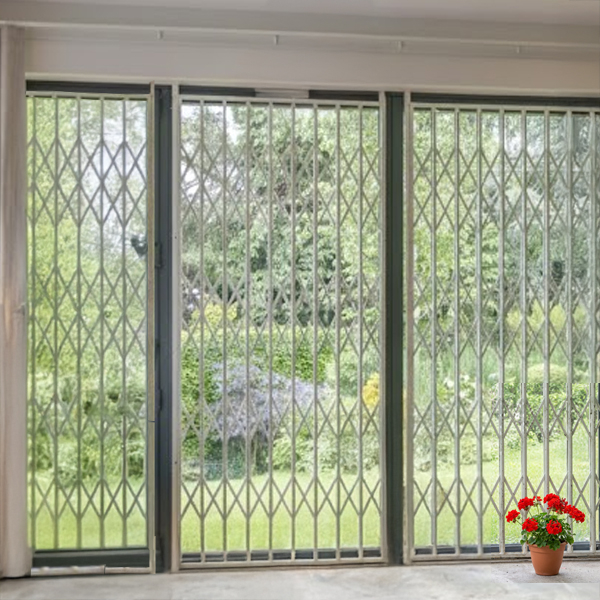

The SeceuroGuard 1000 Bi Folding Door Security Grille is a high quality collapsible steel security solution specifically configured for expansive bi folding door installations in both domestic and commercial properties. Available in made to measure sizes up to 6000mm wide and 2700mm high, this version provides comprehensive physical security for substantial glass door systems while maintaining all the proven quality and functionality of the full SeceuroGuard range.

This system is ideal for securing large bi folding doors that open onto gardens, terraces, courtyards, or commercial frontages. It provides an exceptionally high level of security while retaining visibility and allowing natural light penetration, even when the grille is fully locked in position.

You can customise the system to suit your exact requirements with either a single or double sash option. Single sash arrangements stack neatly to one side, while double sash configurations divide in the centre and stack to both sides of the opening, providing a beautifully balanced appearance that is ideal for wider bi fold installations. Additionally, the gate lattice is available in either the traditional 'X' lattice design or the softer 'S' lattice design, both offered at the exact same price.

This configuration offers exceptional installation flexibility, with both between aperture (reveal) and face fix mounting options available depending on your site conditions. To perfectly complement your property, the SeceuroGuard grille is available in an extensive range of 122 standard colours to coordinate with almost any scheme. Special custom colours can also be ordered upon application. You can view the full RAL Colour Chart PDF here.

Essentially maintenance free, this exceptional grille perfectly combines a classic appearance with top tier security and everyday convenience for bi folding door applications.

Key Features

• Strong security barrier and visual deterrent for expansive bi folding doors
• Galvanised for superior corrosion resistance and powder coated for a durable finish
• Fully retractable system allowing for hassle free access and easy operation
• Excellent through vision and ventilation, even when fully locked
• Convenient multi point locking mechanism (2 or 4 point) operated securely from a single key
• Smooth running carrier system ensuring quick and effortless daily operation
• Configured for substantial bi folding door openings up to 6000mm wide by 2700mm high
• Available in single or double sash arrangements for a perfectly balanced appearance
• Between aperture (reveal) or face fix installation options available
• Custom built for substantial glass door installations requiring maximum security
• Delivers all the proven quality of the standard SeceuroGuard 1000 in a dedicated bi folding door solution

Exceptionally strong yet unobtrusive and stylish, the SeceuroGuard 1000 Bi Folding Door Security Grille transforms the way you protect substantial bi fold openings in your property, offering complete peace of mind.

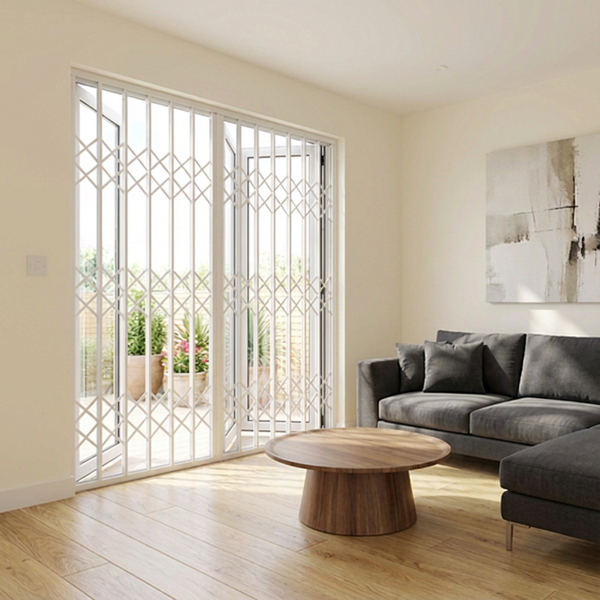

• Living room bi-folding doors opening onto gardens and terraces
• Kitchen-dining area bi-fold installations
• Conservatory and orangery bi-folding door systems
• Home extension bi-fold openings
• Garden room and outdoor living space bi-folds
• Master bedroom suite bi-folding doors to balconies
• Basement level bi-fold doors to courtyards
• Any substantial bi-folding door opening requiring security
•

• Retail premises with bi-folding frontages
• Restaurant and café bi-fold openings to outdoor dining areas
• Bar and hospitality venue bi-folding doors
• Hotel reception and function room bi-fold installations
• Showroom bi-folding door systems
• Leisure and sports facility bi-fold openings
• Office bi-folding doors to terraces and balconies
• Conference centre and event space bi-fold installations
• Gallery and exhibition space bi-folding doors
• Any commercial bi-folding door requiring substantial security
•

• Maximum width: 6000mm
• Maximum height: 2700mm
• Sash options: Single sash (stacking to one side) or double sash (stacking to both sides)
• Installation type: Between aperture or face-fix mounting
• Hinge aside option: Available (requires folding bottom track)
• Suitable for: Bi-folding door installations in domestic and commercial properties requiring comprehensive security coverage

SeceuroGuard 1000 Bi Folding Door Security Grille - Technical Specification

Product Overview

The SeceuroGuard 1000 Bi Folding Door Security Grille is a made to measure retractable security system designed for internal medium to high security applications in domestic, commercial, and retail environments. Manufactured from pre galvanised steel with a smooth and durable powder coated finish, it provides exceptional protection for expansive glass door installations.

Size Capabilities

• Maximum Width: 6000mm (single sashes can be manufactured up to 3000mm wide)
• Maximum Height: 2700mm
• Minimum Width: No minimum restriction
• Minimum Height: 500mm

Construction & Materials

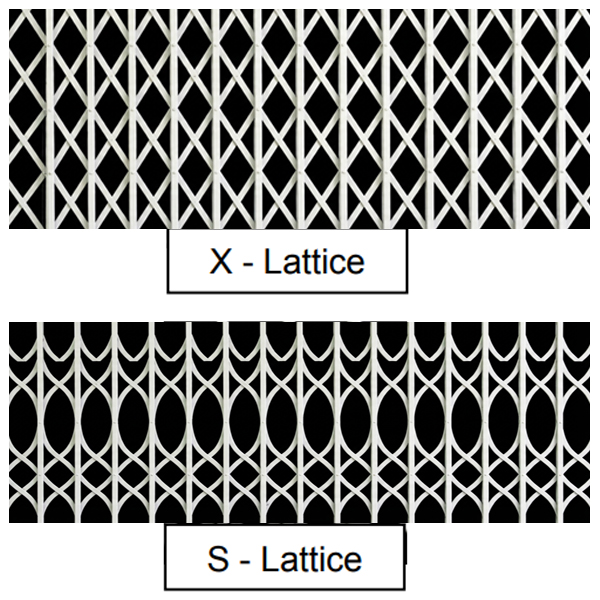

• Lattice Design: High grade pre galvanised steel in a classic 'X' lattice (standard) or a softer 'S' lattice (optional, at the exact same price)
• Lattice Weight: 19kg/m² nominal
• Assembly System: Steel riveted lattice assembly for exceptional strength and durability
• Bearings: Top hung on nylon coated steel bearings for a smooth and quiet operation over large expanses
• Frame: All galvanised steel construction
• Finish: Powder coated in a comprehensive choice of 122 standard colours (custom RAL colours available on request)

Locking & Security

• Locking System: Multi point locking (2 point or 4 point) operated securely from a single key
• Lock Position: Supplied with overlapped locking profiles for enhanced security against forced entry
• Keying Options: Can be keyed alike across multiple grilles for everyday convenience

Installation Options

• Mounting: Face fixed or reveal fixed to suit your specific door opening requirements
• Configuration: Single sash (stacking to one side) or bi parting double sash arrangements
• Track Options: Standard fixed bottom track or an optional fold up removable bottom track (highly recommended for bi folding doors to provide a completely clear walkthrough threshold)
• Hinge Aside: Optional hinge aside configuration for maximum accessibility when the doors are open

Operation & Features

• Operation: Manual slide operation with a smooth running carrier system
• Retraction: Fully retractable system that stacks compactly to the sides when open
• Through Vision: Excellent visibility and airflow even when fully locked
• Handling: Single sashes up to 2000mm wide are manufactured in one piece; larger sections are safely assembled on site
• Track Arrangement: Top tracks for wide bi fold installations over 4000mm are supplied in two sections with a centre split for safe handling and transport

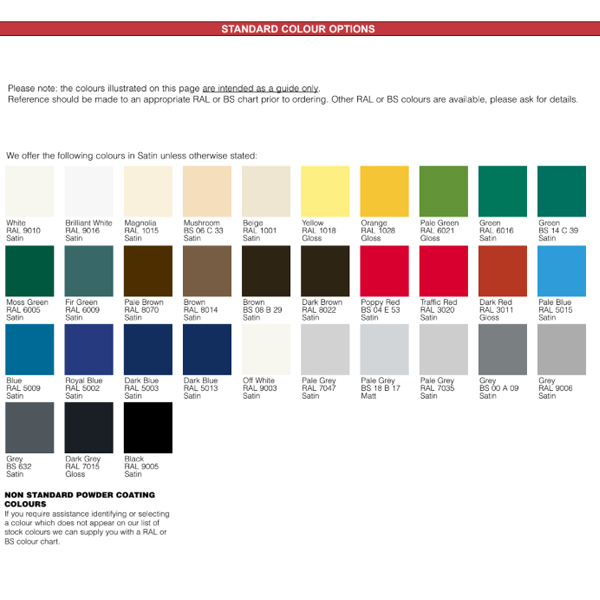

Standard Colours

Available in an extensive range of 122 standard powder coated colours to coordinate perfectly with almost any colour scheme, including Brilliant White (RAL 9016), Black (RAL 9005), Anthracite Grey (RAL 7016), and Brown (RAL 8014). Special custom colours can be ordered upon application.

Additional Options

• Fixed sash panels (where door access is not required)
• Locking posts at both ends for maximum operational flexibility
• Custom colour matching service available
• Split sash arrangements for extra wide openings

Quality & Compliance

• Manufacturing: UK manufactured by SWS UK to ISO 9001:2015 standards
• Corrosion Protection: Pre galvanised steel construction with a premium powder coated finish
• Warranty: 2 year parts warranty (see Warranty tab for full details)

Important Notes

• Sashes manufactured in single pieces up to 2000mm wide ensure maximum structural integrity
• Larger sashes (over 2000mm) are supplied in sections with bolts and fixing plates for easy on site assembly
• Top tracks for grilles over 4000mm wide are supplied in two pieces with a centre split
• Where split sashes meet, pickets are joined using the supplied bolts and fixing plates

Related Products

For enhanced security requiring insurance approval, consider upgrading to the SeceuroGuard 1001, which is independently tested and certified to Loss Prevention Standard LPS 1175 Security Rating 1.

Installation Guidance for Large SeceuroGuard Security Grilles

Smaller grilles are simple to handle and install generally. It is only when the sizes and weights exceed single person handling that you require two or more people to assist and manoeuvre the components into place.

For optimal performance and warranty compliance, we strongly recommend professional installation by qualified security grille installers or tradesmen used to installing doors, windows, and other products requiring associated skills. SeceuroGuard grilles require precise measurement, secure substrate fixing, and correct assembly—particularly for the SR1 rated SeceuroGuard 1001 model where LPS 1175 certification validity depends entirely on the installation meeting LPCB requirements.

Installation Methods

The SeceuroGuard range offers three primary installation configurations to suit different architectural requirements:

• Face Fixed with Bottom Track: Complete framework mounted to the wall surface with a floor mounted bottom track.
• Face Fixed to Aperture: Framework fitted around the opening perimeter with additional support profiles.

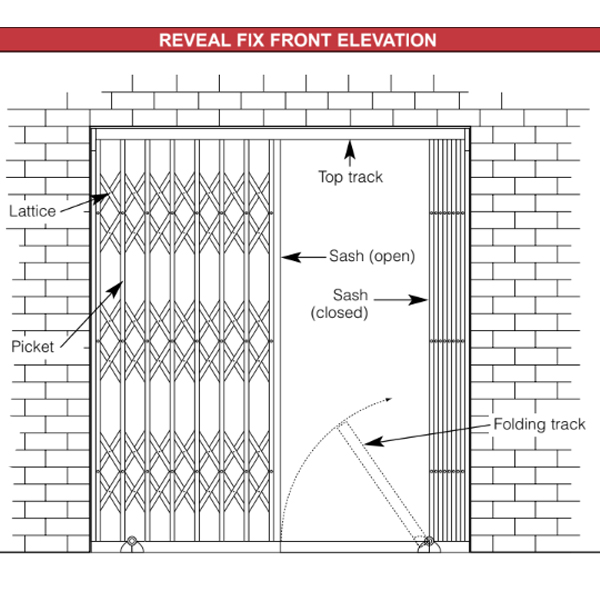

• Reveal Fixed Within Aperture: Compact installation within the window or door recess.

Ordering Dimensions - Critical Information

SeceuroGuard grilles are always ordered using the Overall Width and Overall Height measurements, which must include the complete framework and sash assembly.

• For Face Fixed Installations: Add the relevant dimensions for side frames, top track, and bottom track, plus any reinforcement sections required to calculate your final ordering sizes.
• For Reveal Fixed Installations: Measure the internal aperture dimensions—the grille framework is manufactured to fit exactly within this space.

Pre-Installation Requirements

Essential Tools & Equipment:

• Spirit level and sturdy measuring tape
• Hammer drill with appropriate masonry bits (for brick/block) or metal drill bits (for steel frames)
• Socket set and spanners
• Screwdriver set (Phillips and flathead)
• Safety glasses and dust mask
• Stepladder or secure access platform

Substrate Assessment & Secure Fixing Requires:

• Brick/Block Walls: Minimum 100mm embedment depth using resin anchors or heavy duty expansion bolts.
• Steel Frames: Through bolting with the appropriate grade metal fixings.
• Timber Frames: Coach screws fixed into structural timber (note: this is not suitable for all applications or SR1 ratings).
• Weak Substrates: May require additional reinforcement—always consult a structural engineer if unsure.

Installation Process Overview

1. Site Preparation

• Verify the opening dimensions perfectly match your order specifications.
• Check the substrate condition and ensure it has sufficient load bearing capacity.
• Ensure adequate clearance for the sash operation and the bunch width (approximately 15% of the overall width).
• Clear the work area completely and protect any flooring or surrounding surfaces.

2. Framework Assembly

• Unpack all components and verify them against your delivery note.
• Pre assemble track sections if they are supplied in multiple pieces (required for widths over 4000mm).
• Check that all fixings, brackets, and required components are present.

3. Positioning & Levelling

• Position the top track using temporary supports.
• Use a high quality spirit level to ensure perfect horizontal alignment—this is critical for smooth operation.
• Mark all fixing positions clearly through the pre drilled holes in the framework.
• For face fixed installations, ensure the fixing frame is completely plumb and square.

4. Secure Fixing

• Drill pilot holes to the correct depth for your specific substrate type.
• Install fixings progressively, continuously checking your alignment after tightening each fixing.
• Torque fixings to the manufacturer's specifications—do not over tighten.
• Ensure minimum fixing centres are maintained (typically between 400mm and 600mm).

5. Sash Installation

• Attach the sash carrier wheels to the top track.
• Carefully guide the heavy lattice sash into the track system.
• For larger installations, sections may require on site joining with the provided fixing plates and bolts.

6. Locking Mechanism

• Install the lock posts and slam posts according to your chosen configuration.
• Adjust the multi point locking mechanism to ensure a smooth, overlapping engagement.
• Test the lock operation fully through a complete cycle.

7. Final Adjustments & Testing

• Check that the sash slides smoothly across the full width of the opening.
• Adjust the carrier wheels if any binding or resistance occurs.
• Verify the locking engagement is secure.
• Test the bottom track functionality (if a folding or removable option was specified).

Installation Considerations

For SeceuroGuard 1001 SR1 Rated Installations:

• Must comply strictly with all LPS 1175 installation requirements.
• All fixings must meet the specified security standards.
• An installation certificate may be required to satisfy insurance purposes.
• The substrate must provide adequate resistance—certification is entirely void if the installation is compromised.

Hinge Aside & Folding Track Options:

• Special installation procedures apply for these optional configurations—always refer to the specific instructions provided with these upgrades.

Common Installation Challenges:

• Out of Square Openings: May require packing or shimming—always check your diagonals before final fixing.
• Uneven Floors: Particularly affects bottom track alignment—may require floor preparation or levelling first.
• Restricted Access: Consider your installation sequence carefully for narrow doorways or difficult access points.
• Overlapping Windows/Doors: Plan the sash stacking location in advance to avoid any operational conflicts with existing handles or frames.

Post-Installation

• Remove all protective coverings and transit packaging.
• Clean the lattice and tracks thoroughly with a mild detergent to remove installation dust.

Technical Support & Downloads

For detailed step by step installation instructions with comprehensive diagrams, please download our Samson SeceuroGuard Fitting Guide PDF.

For measurement guidance, please download the SeceuroGuard 1000 and 1001 Ordering Dimensions PDF.

What the Warranty Covers

• SWS UK will repair or replace any part found to have a manufacturing defect during the warranty period. This includes:
• Defects in materials or workmanship affecting the operation of the retractable security grille
• Failure of the fixing frame, sashes, tracks, or lattice due to manufacturing fault
• Defective powder-coated finish (within the first 2 years from purchase date)
• Faulty locking mechanisms or key operation

What the Warranty Does Not Cover

• This warranty does not cover damage or faults caused by:
• Incorrect installation or failure to follow SWS UK fitting instructions
• Poor or improper maintenance or lack of regular servicing
• Incorrect use or unauthorized modifications to the grille
• Normal wear and tear, accidental damage, or malicious damage
• Labour costs, call-out fees, transport, or other consequential costs
• Cosmetic marks or blemishes not visible from 3 metres in natural light
• Exposure to corrosive environments including saltwater or salty air for products installed within 500 metres of the coast
• Rust or corrosion caused by failure to maintain the product according to SWS UK guidelines
• Damage caused by environmental factors including extreme weather, flooding, fire, or impact
• Misuse or negligence by the end user or third parties
• Products not purchased through authorized SWS UK distributors

Warranty Conditions

• The SeceuroGuard grille must be installed by a competent installer/person  in accordance with SWS UK fitting instructions
• The product must be used for its intended purpose only (domestic or commercial security applications as specified)
• Regular maintenance must be carried out as per the operating and maintenance instructions provided
• Any warranty claim must be accompanied by proof of purchase showing the date of purchase
• Products must be purchased through authorized SWS UK distributors

Making a Warranty Claim

Exclusions and Limitations

• This warranty is non-transferable and applies only to the original purchaser
• SWS UK reserves the right to repair or replace defective parts at its discretion
• Repaired or replaced parts carry a warranty for the remainder of the original warranty period or 12 months, whichever is longer
• This warranty does not affect your statutory rights under UK consumer protection legislation
• SWS UK will not be liable for any consequential loss, damage, or expenses arising from product failure

How to Measure for the SeceuroGuard 1000 on Bi-Folding Doors

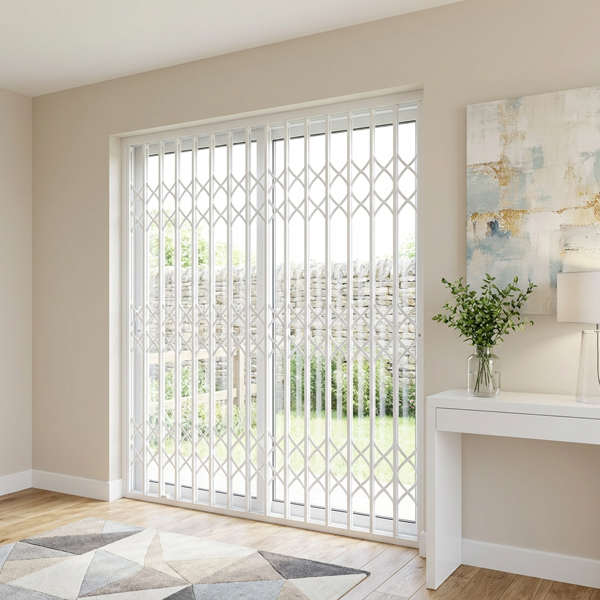

The SWS SeceuroGuard 1000 retractable security grille is a made-to-measure system, ideal for protecting bi-folding doors up to 6000mm wide and 2700mm high. Follow these steps to ensure a perfect fit for your installation.

1. Choose Your Installation Type

Before taking your tape measure to the opening, decide how your security grille will be fitted:

• Reveal Fit (Between Aperture): The grille sits inside the structural opening.
• Face Fit (Surface Mounted): The grille is fixed to the inside face of the wall, surrounding the opening. Your measurements must be taken from the exact fixing position rather than the door leaves.

2. Measuring the Width and Height

• Take three measurements: Measure the width at the top, middle, and bottom of the opening. Measure the height at the left, centre, and right from the finished floor level to the underside of the lintel.
• Use the smallest dimensions: Always use the smallest width and height measurements as your reference size to accommodate any structural variations or uneven brickwork.
• Ensure a level surface: For the smooth-running carrier system to operate reliably, the bottom track must be fitted to a flat, level surface.

3. Allow for the Stacking (Bunching) Area

When retracted, the grille sashes will take up space. You must account for this to ensure the bunched grille does not obstruct your bi-fold door handles or limit your thoroughfare.

• Stacking size: Allow approximately 15% of the overall width for the retracted bunching area.
• Single or Double Sash: Decide if you want the grille to bunch to one side (single sash) or split in the middle and bunch to both sides (double sash).
• Hinge-Aside Option: If you specify the hinge-aside option to pivot the stacked grille out of the opening, note that this requires a folding bottom track.

4. Considerations for Larger Openings

For extensive bi-fold door spans, particularly widths over 4000mm, track sections may be supplied in multiple pieces for easier transport and on-site assembly. Please ensure you allow suitable access for installation.
