Seceurovision 38 (Punched) See-Through Security Shutters

The SeceuroVision 38 punched slat design is a stylish compliment to comtemporary interiors. Constructed from a strong extruded aluminium profile, the punched version of the SeceuroVision 38 delivers upto 45% vision through the slats. It is designed for high security domestic sites, medium security office/commercial use dependant upon aperture size and risk. It also necessitates for small shopfronts and single garage doors with restricted headroom.

seceurovision 3800 punched installed on a bar in purpleSeceuroVision 38 uses a double skin extruded aluminium punched slat. The bottom slat consists of an extruded aluminium section with a reinforcing angle. This is also available with rubber instead of a reinforcing angle as a no-cost option.

The SeceuroVision 38 punched shutter is available as a manual belt operation with a swivel or gear belt, a rod crank operation, a spring & lock operation with a key and an electrical operation with a range of different switches. A manual override operation is also available as an additional extra., as is an anti-drop brake.

The punched SeceuroVision 38 uses the H30 guide rail. This consists of extruded aluminium with an integral box section for reinforcement and to facilitate fixing. It also contains high density 5mm pile brush seals for quiet and smooth operation. The dimensions for the H30 guide rail are 60mm wide x 24mm deep. It is available in stock colours of white and brown.


H30 guide rail as standard on the SWS SeceuroVision 3800 punched



SLATS

Construction:     SeceuroVision 38 uses a single wall extruded aluminium slat. Available as punched or perforated and with or without glazing.
Common Use: Lightweight and compact, the SeceuroVision 38 is suited to medium security applications.
Dimensions: Nominally 40mm high x 8.7mm thick.
Width: 6.5kg per square metre (without glazing) / 8kg per square metre (with glazing).
Stock Colours:   White, Brown or Cream. Bottom Slat - White or Dark Brown.




Min Width: 500mm
Max Width x Height  3000mm x 5000mm
Max Area: 12sqm
Material: Extruded Aluminium / 6.5kg per m²

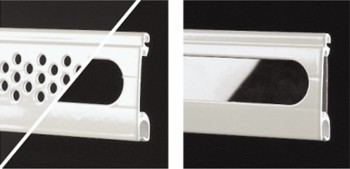

seceurovision 3800 38mm deep profiled single wall extruded aluminium slat - punched and perforated
   Left: Perforated      Right: Punched polycarbonate insert

SHUTTERBOX

Construction:       Roll formed aluminium in two sections; top and bottom boxes. Bottom box removable for installation and maintenance and chamfered at 45°.
Box Ends: The shutterbox is assembled on die cast aluminium endplates.
Box Sizes: Clear opening height (to undersize of box):
Stock Colours:   White or dark brown.
SeceuroVision 3800 shutters can be powder coated to alternative standard RAL or BS colours at extra cost and, should this be required, we would be pleased to prepare a quotation.


For higher safety and security the H40/S guide rail offers an increased specification to the standard guide rail but does not incorporate windlocks. These guide rails are available at extra cost to the standard guide rails.

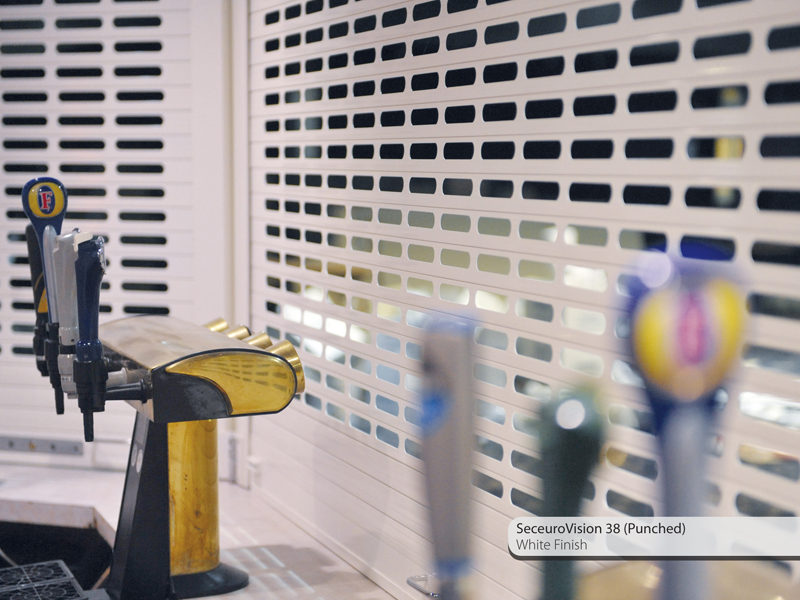

Seceurovision 38 in white securing a bar
