Hormann HR120 Aero Industrial Roller Shutter

For Increased Vision and Security

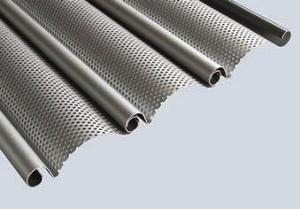

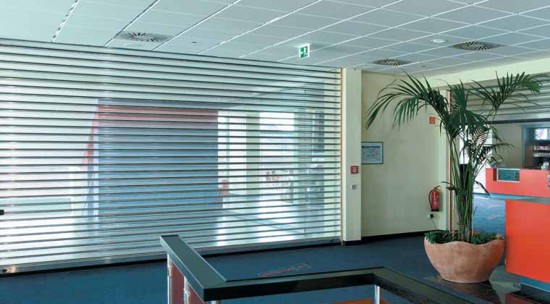

The Hormann single skinned aluminium HR120 Aero - highly suitable for underground car parks, shopping centres, arcades and any other premises requiring security with a high level of visibility - is a full-frontal single-skinned roller shutter. It consists of concave, perforated profiles which offer high ventilation qualities and improve visual contact compared to similar roller shutter doors. The finely perforated profile keeps out dust, leaves, paper and other general waste and prevents debris passing through the shutter.

The unique shape of the shutter profiles make it impossible for small children to climb up the shutter or get caught on it. This prevents often underestimated potential hazards such as damages or injuries and offers a high level of imposing security at the same time.

Hormann HR120 Aero Colours

Colours are often underestimated when purchasing large products. In modern industrial and commercial architecture, coloured shutters are increasingly used as key design elements. Primarily due to their vast size, rolling shutters already play a key role in determining the visual appearance of the facade.

Grey White RAL 9002	White Aluminium RAL 9006

Grey White (RAL 9002) and White Aluminium (RAL 9006) are the standard colours for all of our industrial roller shutters.


SB Roller Shutter Size Range: 5000mm x 4500mm max. Classic Roller Shutter Size Range: 11750mm x 8000mm max.

For more information on large roller shutters, contact us via email or phone us on 0800 328 6250
To view in our online shop, please click here >

Classic Roller Shutters

Large Industrial Roller Shutter Installations

Samson Doors specialise in the supply and installation of uniquely made large roller shutters to various buildings such as aircraft hangars, car ports, factories, storage facilities and large manufacturing buildings.

Operator
The Direct Drive Operator comes as standard and is ideal for small to medium sized rolling shutters and grilles. Equipped with integral catch safety device.
Optional ZAK system has a ZAK gearbox on either side, so the barrel moves away from the lintel on opening and towards the lintel on closing. The ZAK system reduces noise, abrasive wear and required headroom as well as improving sealing in the lintel area.
The ZAK XL is ideal for large doors with chain drive operators.

SB Roller Shutters

Operator and control included!
WA 300 R S4 Operator with soft start and soft stop functions to ensure quiet door travel, reducing wear on the door and operator.

Tension spring assembly
The innovative tension spring assembly assists during manual opening and closing. Therefore rolling shutters and rolling grilles can be operated with little force.

Chain Hoist
The SB rolling shutter and rolling grille can also be easily opened and closed via the interior and exterior handle. Operation is particularly easy with an optional chain hoist, which is recommended for doors higher than 3500mm.

The Hormann HR120 Aero is  available in aluminium profiles.

Aluminium

1. Bright-rolled aluminium. The standard profile for straightforward applications.

2. Coil-coated aluminium. A high-grade external coating provides long-term protection against weathering. The additional protective paint containing polyamide particles reduces friction and minimises the noise produced by the shutter action.

Unfortunately the HR120 Aero is not available in special colours, however the exterior is available in Grey white (similar to RAL 9002 - right) or White aluminium (similar to RAL 9006 - left) as standard. The interior protective paint is in Basalt Grey (similar to RAL 7012).

Hormann HR120 Aero Technical Details

- = not available
