Hormann V 5015 SEL

Crash Resistant Industrial High Speed Door

Hormann V 5015 SEL, the crash resistant, reliable and efficient door. With the Soft Edge bottom profile the V 5015 SEL simply pushes its flexible vertical profile out of the side guides in a collision resulting in no damage at all.

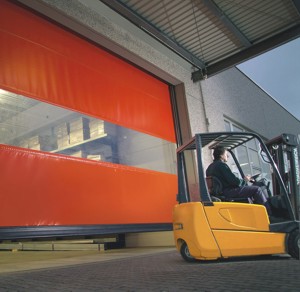

hormann v 5015 se installed in red with visual panel hormann v 5015 se anti crash damage model





























Especially Economical High Speed Doors
The inexpensive high-speed door for inside areas fitted with SoftEdge bottom profile and standard FU control for a safe and low door wearing continuous operation.

The curtain stability of the door type V 5015 SEL is achieved through the well-proven aluminium profiles and the horizontally stable SoftEdge bottom profile at the lower edge.

Aluminium profiles
In the event of repair, the inexpensive stabilisation of the curtain allows the curtain segments to be replaced quickly and with minimum fuss.

Door size
Width (LB) max. 5000 mm
Height (LH) max. 5000 mm

Speed* opening/closing
Standard control
BK 150 FUE H 1.5/0.8 m/s
*max., depending on the door size

Curtain
With aluminium profile
Fabric/vision panel thickness 1.5/2.0 mm

Emergency opening
Crank handle

Optional:
Automatic opening via UPS back up system during power failure
(BS 150 FUE H UPS, 230 V)

Curtain Colours
RAL 1018 Zinc Yellow
RAL 2004 Pure Orange
RAL 3002 Carmine Red
RAL 5010 Gentian Blue
RAL 7038 Agate Grey
