Samson adone smooth 2 leaf aluminium folding doors

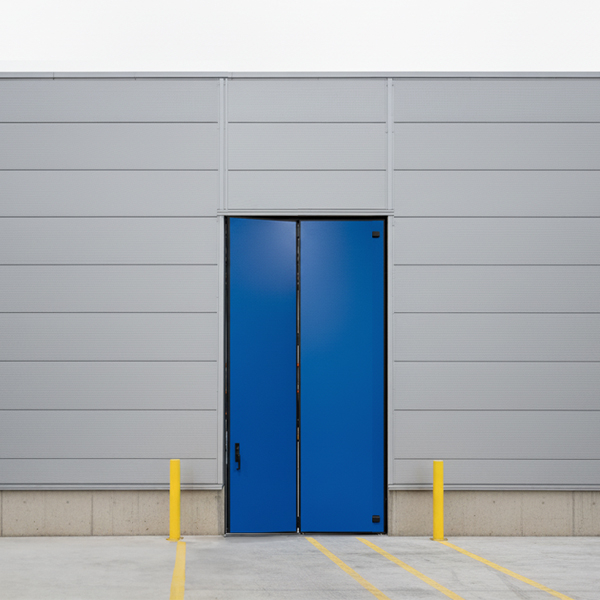

Samson Adone 2 Leaf Folding Door

Folding Doors

Smooth Finish - Up to 2950mm wide x up to 6000mm high

Material: Aluminium

Enquiry Form

Call Us

Email Us

Web Price: £3,274.00

(Excluding VAT and £3,928.80 Inc. VAT)

Ordering

Width

Height

Web Price: £3,274.00

(Excluding VAT and £3,928.80 Inc. VAT)

Print this page

Enquire About This Product

Secure Payment

NEED HELP? Call us on 01933 448 850

or click here to connect via our Live Chat

ENQUIRY FORM

CALL US

EMAIL US

Description
Application
Specification
Installation
Warranty
Measure

Description

The Samson Adone is an industrial and commercial specification double skinned, steel, insulated folding door system. Used mainly for an external door it can be manufactured to suit various openings every time, with either a single or double parting leaf arrangement.

This is a 2 leaf door model available between 2000mm and 2950mm wide and up to 6000mm in height using only 2 panels which can split equally in the middle or fold as 2 panels to one side or the other as required.

The standard double skinned steel panel is 52mm in depth and can be manufactured up to 11.5m wide and 6m high in this specification. Larger door sizes are possible as we also have the Apollo folding door system for much larger opening sizes. The panel thickness will change on much larger sizes to offer the performance and strength required.

A steel folding door offers so many benefits over many other industrial door systems. Many of the doors we supply are manually operated simply because they are generally used for external openings where the opening and closing cycles are low. A folding door system will enable a user to open one leaf for pedestrian access, or partially open a little further when required, never having to open the door fully, exposing all the internals and letting heat out or cold in.

Pedestrian Door Option

It is possible, depending on the leaf arrangement, to always have one door panel used as a full height pedestrian access door. This is very useful for so many companies and operations where regular access is required on foot. The pedestrian door can also have internal panic furniture so it can be part of the emergency fire exit strategy for any building.

You can also have a pedestrian door built into a full sizes panel either as a full width panel cut at a normal pedestrian door height, or as a pedestrian door completely cut into a full panel. Either option provides a simple and easy operated door into and out of the building without the need to even touch the main door.

Manual or Electric

Most folding doors will be manually operated as they are so easy to manouevre anyway and with the multiple options on the panel arrangements you can make it easy for partial opening to be the main daily action and leave most of the door closed for the majority of the time.

The smooth sliding action of the top hanging roller system guarantees an effortless operation once the locking has been released. Small to medium sized doors will be top hung with no bottom tracking required at all for the easiest of movement.

Electric operation is possible on any size door with single or bi parting leaf arrangements and the chain driven system is simple and reliable as there is minimal stress on the electric motor drive. Single and three phase motor options are offered depending on the potential number of operations per day and how large the doors are.

Access control is generally best as a ‘hold to run’ deadman control as a folding door has multiple entrapment points, although these are compliant with the gap sizing and rubber seals used to prevent any injury to fingers. Safety systems can be specified where necessary if the door is near a public area or impulse or remote control is required.

Colours, Finishes and Options

The Samson Adone folding doors have a standard range of finished colours to choose from along with laminated woodgrain finish options.

You can also choose to have a smooth or stucco embossed front face finish to suit your taste.

This door is offered as a smooth finish model only.

Standard colours include:
Grey - RAL 9006
Grey - RAL 7016
Green - RAL 6005
Blue - RAL 5010
Red - RAL 3000
Brown similar to RAL 8019
White-Grey similar to RAL7035
Any RAL Colour - price on application

We can also price for special colours where required to suit specific needs.
External face and internal face colours can be different to suit the clients requirements on site.

Various double glazed window options can be built into the panels in almost any position to suit.
Round, square and rectangular windows can be offered but also a fully glazed door option with minimal framing for maximum light and vision.

We can also build in venting grilles and other useful panel inserts to suit the application.

Fixed panels which never open can be incorporated into the overall door system when it is simply about creating a door and infill to match, all of which are insulated.

Application

Smaller openings where headroom might be an issue and internal tracking is a problem. Folding doors offer a great degree of flexibility in how the door leaves are arranged to suit site restrictions. Folding doors offer insulated double skinned panels and are great for any openings which are not required to be opened very often, but where pedestrians access frequently.

Specification

The specification for these folding doors can change significantly depending on your specific requirements and preferences on hardware. The basic prices as showing here are based on internal locking bars and handles for the standard manual specification.

More or less locking positions and hinging can be specified to change which door leaves open first and there are other locking methods as well as various handles to suit external access.

Standard Specification and equipment:

52mm double skinned galvanised steel panels with a foam core

Track support brackets for a standard 90° door panel rotation opening.

Trolleys with 4 nylon coated wheels and dustproof ball bearings.

Black lacquered die-cast aluminium hinges with bearings and pins of 20 mm.

Black lacquered steel lever bolts, with black lacquered galvanized steel closing rods.

Galvanized steel floor lever bolts and transom strikers.

Adjustable die-cast galvanized steel ground joint for wings lock.

Internal handles for the handling operation of door leaves.

Spacer rubber buffers for wings folding.

Panel standard colour, Smooth surface: External side White-Grey; Internal side White-Grey.

Aluminium label with door identifying data, CE marked and main instructions.

Assembly instructions, maintenance handbook including certificates.

Installation

We can supply only or offer a full installation service for our folding doors.

Installation for the Adone is relatively easy and we offer installation instructions.

A full drawing will be supplied for your review before manufacturing begins.

Warranty

The product is guaranteed for a period of 2 years.

The manufacturer is not assuming an responsibiity for damages in case of:
a. Installation of carrying structures not suitable.
b. Use of not suitable fit elements or undersized
c. Installation nad fitting works made in an unprofessional way
d. Improper or not regular use of the produt
e. Non-execution of scheduled maintenance
f. Not appropriate stresses
g. Use of not original accessories or spare parts
h. As well s any change not specifically authorised.

Please request terms and conditions for full details.

Measure

The ordering sizes for pricing and ordering always refer to the internal fixing frame dimensions and as standard the door is assumed to be fitting on the inside face of the structural opening.

Measuring for an Adone folding door is relatively simple as the doors can either fit inbetween or behind the aperture using the standard steel outer frame system for securing. As the doors only use a top track system there is little to be over concerned about apart from the width and height accuracy, some headroom and side room if fitting internally and of course a level floor.

If you would like to fill out or simple measuring form to then discuss options please download here then scan and email to our direct email - enquiries@samsondoors.co.uk with your requirements.
