Sws seceuroshield 38 manual operation aluminium security shutters roller

The SeceuroScreen 38 security shutter is manufactured from exceptionally strong extruded aluminium slats providing excellent resistance to attempted forced entry.

Minimum Width
500mm

Maximum Width x Height
4000mm x 5000mm

Max Area
12m²

Operation (Max Area M²)
Single Phase Electric Operation (12)
Manual Spring/Hand Assisted (7)
Rod Crank (3.5)
Geared Belt (3) *
Swivel Belt (2) *
* This is a low security option.

H30 Guides are supplied as standard. H17 and H25 on request. H17 Guide Rails only suitable for internal use only. H40/S Guides are used where additional security is required. Wind end locks will be fitted to the curtain as standard when this option is selected.

Rod Crank
Rod crank Shutters are raised and lowered from inside by a geared rod crank winding handle which hangs down vertically underneath the box and secures on a clip when not in use.

Spring Loaded
Spring loaded for external operation on exit doors, shutters can be spring loaded with a transverse key lock in the bottom slat. Also a popular option for bar, servery, counter, cabinet and kiosk applications. (N.B. The bottom slat projects below the shutter when fully raised, check that this will not obstruct outward opening doors).

New Manual Lock: Orders placed for the Manual SeceuroGlide or Commercial Steel Shutters will be manufactured with a new bottom slat lock.

At just 6mm thick this new high quality lock is much slimmer than the current one and so is a neater fit in the SeceuroGlide slat and the commercial bottom rail. It also has a smoother operation than the lock it replaces. The lock can be easily retro-fitted onto existing products using a standard kit of parts.

Guide Rail Type

Full installation details provided with every shutter ordered.


Security Shutters
The operation of the shutter along with the finish of the curtain, guide rails and box is guaranteed for a period of 2 years. The Somfy tubular motor is guaranteed for a period of 5 years against faulty materials and workmanship.

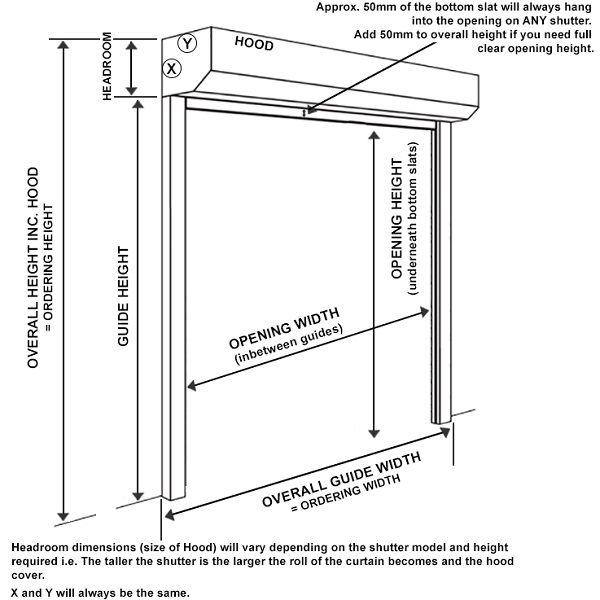

Ordering dimensions are the Overall Width including the guides chosen x Overall Height including the hood size.

Please ensure when ordering for a face fix that you have included the guides and appropriate size shutter box depending on the shutter height (Click on the diagram below):
