SeceuroShield 77 Manual Insulated Aluminium Roller Shutter

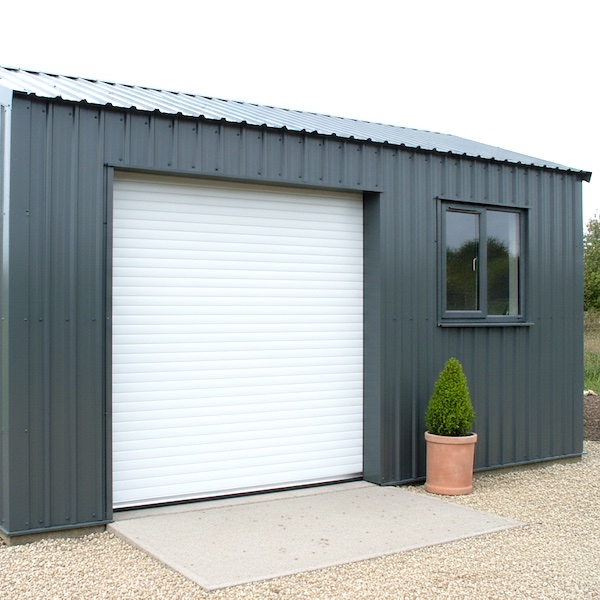

The SeceuroShield 77 manual insulated aluminium roller shutter represents exceptional versatility in security closure systems, offering comprehensive protection across residential, commercial and industrial settings.
Engineered with premium 77mm double-skinned, foam-filled aluminium slats - identical to those found in high-specification roller garage doors - this manual operation model delivers robust security with outstanding thermal efficiency. The 19mm deep slats retract smoothly into a compact overhead box available in three sizes: 250mm, 300mm or 350mm, accommodating various installation requirements.
Available in 25 standard colour finishes, the SeceuroShield 77 manual shutter adapts seamlessly to any architectural style or corporate branding. The spring-assisted mechanism enables effortless push-up and pull-down operation for shutters spanning up to 4000mm in width, whilst the reinforced extruded bottom slat incorporates an integral lock cylinder for primary security. Optional bullet locks within the side guides provide enhanced protection when premises are unattended for extended periods.
Beyond security provision, this insulated roller shutter delivers significant environmental benefits including solar shading, acoustic dampening and thermal insulation, reducing energy costs whilst improving interior comfort. Whether specified as a standalone doorway, protective covering for existing doors and windows, or closure for open apertures, the SeceuroShield 77 manual shutter offers reliable, long-lasting performance across diverse applications.
Green credentials
Our insulated shutters provide more than just security, offering shading, sound proofing and insulation, making them ideal for both residential and many commercial applications.
The SeceuroShield 77 rolled aluminium insulated slat is for medium security commercial, retail and counter/cabinet applications. it can be used as a door to cover and protect open space apertures or to cover a door or window as required.
The slats are strong, insulated and available in 25 standard colours to suit pretty much any building.
Key Features
- CFC Free foam filled 77mm x 19mm double walled aluminium slat profile
- Medium security for commercial, industrial and retail premises
- Spans widths up to 4000mm with effective heat and sound insulation

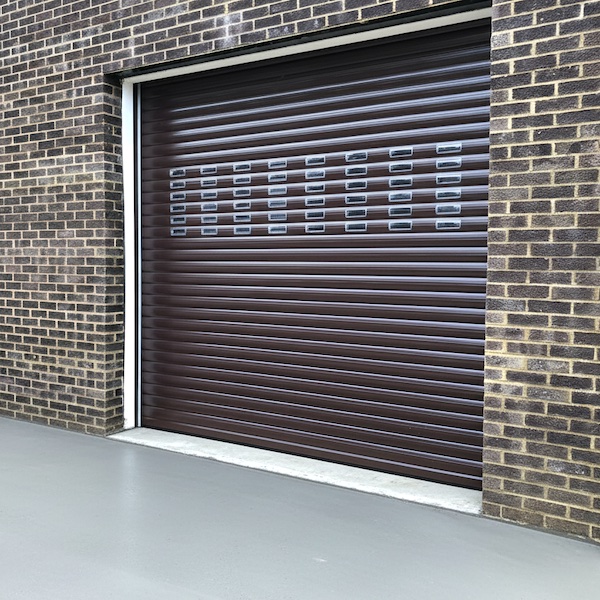

- Can be mixed with SeceuroVision 800 when partial vision is required
Standard Colours
23 standard colours available as stock colours and all at the same price:
- Brown (RAL 8014)
- Burgundy (RAL 3004)
- Cream (RAL 1015)
- Fir Green (RAL 6009)
- Brilliant White (RAL 9016)
- Light Grey (RAL 7038)
- Light Beige (BS 08B17)
- Black (RAL 9005)
- Navy Blue (RAL 5011)
- Mahogany Woodgrain
- Rosewood
- Slate Grey (RAL 7015)
- Graphite
- Chartwell Green
- Anthracite Grey (RAL 7016)
- Black Brown Woodgrain
- White Foiled Woodgrain
- Golden Oak Woodgrain
- Dark Brown (RAL 8019)
- Moss Green (RAL 6005)
- Anthracite Woodgrain
- Duck Egg Blue
- Irish Oak Woodgrain
Technical Specification
| Min Width | 900mm |
| Max Width x Height | 4000mm x 2800mm (manual operation) |
| Max Area | 16sqm (Total System Capacity) |
| Material | Insulated Rolled Aluminium / 5kg/m² |
Operation Limits (Max Area m²)
- Single Phase Electric Operation: 16m²
- Manual Spring / Hand Assisted: 12m²
Spring Loaded Mechanism
Spring loaded for external operation on exit doors, shutters can be spring loaded with a transverse key lock in the bottom slat. Also a popular option for bar, servery, counter, cabinet and kiosk applications.
N.B. The bottom slat projects below the shutter when fully raised; please check that this will not obstruct outward opening doors.
To view the SeceuroShield 77 Specification Sheet, please click here PDF >
The SeceuroShield 77 manual roller shutter is designed for straightforward installation, suitable for trade professionals and experienced DIY installers. The shutter is supplied as a complete kit comprising the curtain, box assembly (containing the spring-assisted axle), guide rails, and necessary fixings.
Standard Installation Sequence:
- Check Components: Ensure all parts are present and undamaged. Verify the opening dimensions against the order details.
- Prepare Opening: Ensure the aperture is square and the mounting surface is flat. Drill necessary fixing holes in the guide rails (usually 3-4 fixings per side depending on height).
- Fit Guides & Box: Assemble the box and guides. Offer the complete assembly to the opening. Ensure the guide rails are vertical and parallel, and the box is level. Fix securely to the structure.
- Curtain Installation: Carefully feed the curtain over the axle and down into the guide rails. Secure the curtain to the axle using the provided attachment system.
- Spring Adjustment: The internal spring comes pre-tensioned but may require fine-tuning. Tension is increased by rotating the axle in the 'down' direction before attaching the curtain, or released by rotating 'up'.
- Final Checks: Test the operation for smooth running. Ensure the lock mechanism in the bottom slat engages correctly with the slots in the guide rails.
Mounting Options
This shutter is versatile and can be installed in three primary configurations to suit your building's layout:
- Face Fix (Internal): The shutter box and guides are fitted to the inside surface of the wall, above and around the opening. This is the most secure method and hides the mechanism from the outside.
- Face Fix (External): The system is fitted to the exterior wall. This is common when internal space is limited. The aluminium housing provides weather protection for the curtain and mechanism.
- Reveal Fix: The shutter fits in between the brickwork opening (within the reveal). Note: This reduces the clear drive-through width by the width of the guides and the clear height by the size of the box.
Critical Dimensions & Notes
- Box Sizes: The curtain rolls into a 250mm, 300mm, or 350mm square box, depending on the total height of the shutter.
- Pass-Through Height: In manual spring-loaded operation, the bottom slat hangs down slightly (approx. 50-75mm) from the box when fully open. Please allow for this reduction in clear height, especially for doorways.
- Fixing Substrate: Ensure the wall (brick, concrete, steel, or timber) is structurally sound enough to support the weight of the shutter (approx. 5kg/m²) and the operation forces.
To download the installation instructions, please click here >
SeceuroShield 77 manual Warranty Details
SeceuroShield products are backed by a parts-only warranty from Samson Doors and SWS UK:
- 2 years for general product components.
- 5 years for motors and controls.
- 12 months for replacement electrical parts, or the remainder of the original warranty—whichever is longer.
This warranty applies only when the product is installed, maintained, and operated according to SWS UK guidelines.
What the Warranty Covers: SWS UK will repair or replace any part found to have a manufacturing defect during the warranty period. Labour costs and other associated expenses are not included.
What the Warranty Does Not Cover:
- Labour, call-out fees, transport, or other consequential costs.
- Cosmetic marks or blemishes not visible from 3 metres in natural light.
- Damage or faults caused by:
- Incorrect installation or failure to follow instructions.
- Poor or improper maintenance.
- Incorrect use or unauthorized modifications.
- Normal wear and tear, accidental or malicious damage.
- Impact damage, scratches, dents, or abrasions.
- Use of non-SWS UK parts or unauthorized repairs.
- Structural issues with mounting surfaces.
- Attempts to reduce operating clearances.
- External factors like extreme weather, fire, water, chemicals, or bird droppings.
- Electrical faults or surges in the customer’s power supply.
- Rust or corrosion for products installed within 500 metres of the sea or saltwater.
- Consumables such as fuses, light bulbs, or batteries.
- Any indirect, special, or consequential loss or damage.
Ordering dimensions are the Overall Width including the guides chosen x Overall Height including the hood size.
