SeceuroShield Industrial Range
The SeceuroShield 75 is now available in either a ‘Continental’ version, as produced previously, and now a more ‘traditional’ shutter version, still using a single phase electric tube motor, but using an industrial style set of guide options and a larger barrel to provide widths up to 7000mm and heights up to 5000mm. This is a great roller shutter door for most applications where single phase power is only available and where there may be some restrictions in the installation zone. It is for low to medium daily use and where high usage is required you ned to look at 3 phase motors and the SeceuroDoor range of doors.
Galvanised Steel Single Skin Continental Commercial Shutter
The Seceuroshield 75 is the most original roller shutter door with a very wide range of uses in the commercial, domestic or industrial sectors. It uses one of the most popular slat types for the UK market, a 75mm high ‘scrolled’ steel lath in a single skin galvanised steel construction.
The quality of these slats can vary considerably as well as the guage of thickness so be wary of inferior quality slats in these doors as they will look shoddy very quickly indeed, bearing in mind the slats roll over each other during operation so need to be durable from the start.
- White, Brown, Black and Cream as standard
- Available in electric or manual operation
- Available in 20g and 22g
- Strong single skin galvanised steel profile
- Can be powder coated any RAL / BS colour
- Will reverse coil if required (will increase coil size)
- Plastisol colours available
- Manual Spring & Lock – When there is no power available for electric operation or the shutter will not be opened very often. The solution is not available for shutters over 2.8 m tall.
- Max width up to 6000 mm
- Max height up to 3400 mm
- Max area up to 20 m2
- Wind class rating: Class 3
Vision option available
- Delivers up to 25% vision (when back lit)
- Can be mixed with solid SeceuroShield 75 when only partial vision is required
Additional Options & Extras
Galvanised Steel Single Skin Traditional Commercial Shutter
The Traditional shutter version is a stronger overall construction, more suited to the larger sizes and the Continental design is better for small to medium sized applications and when a neater overall finish may be required with the finer detail.
- White, Brown, Black and Cream as standard
- Strong single skin galvanised steel profile
- Medium security office / commercial / industrial applications
- Spans widths up to 7000 mm
- Can be powder coated any RAL / BS colour
- Will reverse coil if required (will increase coil size)
- Plastisol colours available
- Manual Spring & Lock – When there is no power available for electric operation or the shutter will not be opened very often. The solution is not available for shutters over 2.8 m tall.
- Max width up to 7000 mm
- Max height up to 5000 mm
- Max area up to 35 m2
- Wind class rating: Class 3
Vision option available
- Delivers up to 25% vision (when back lit)
- Can be mixed with solid SeceuroShield 75 when only partial vision is required

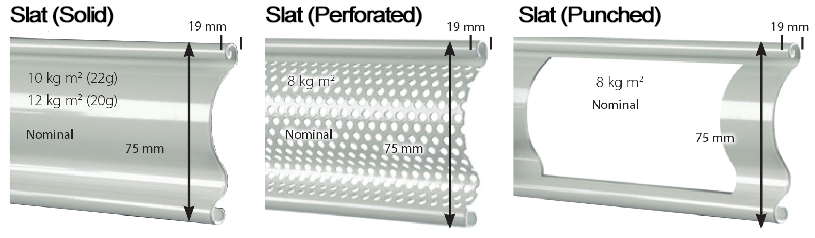

Slat Options & Colours
.png)
Insurance approved security shutters tested to Loss Prevention Standard 1175 – 1 (LPS1175-1)
The rigorous LPS 1175 burglary resistance standard is operated by the Loss Prevention Certification Board (LPCB). LPCB are the UK’s leading independent certification body and the LPS 1175 standard is recognised and endorsed by 16 organisations including the Association of British Insurers and the Association of Police Officers.
- Traditional and Continental design
- White, Brown, Black and Cream as standard
- Available as solid or perforated
- Strong single skin galvanised steel profile
- Medium security office / commercial / industrial applications
- Spans widths up to 6000 mm
- Can be powder coated any RAL / BS colour
- Flexibility to mix solid and vision slats together when only partial vision is required
- Will reverse coil if required (will increase coil size)
- Available with either traditional or continental specifications
- Only available in 22g slat
- Wind class rating: Class 3
Additional Options & Extras

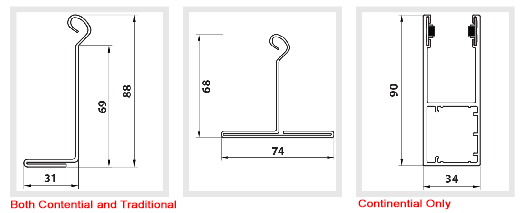

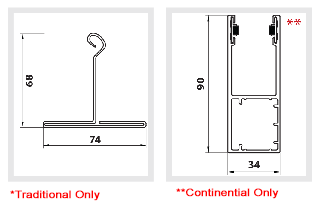

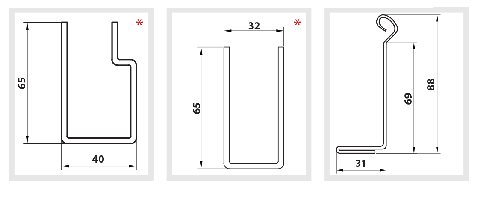

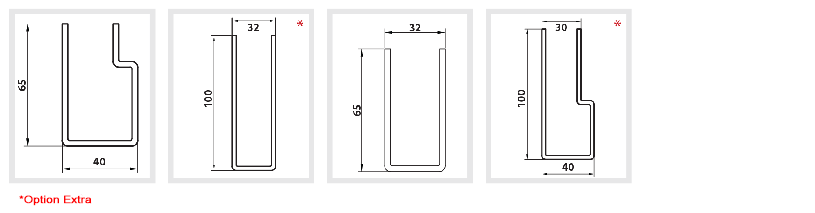

Bottom Rails & Guide Options
Stock Colours
Box Extension

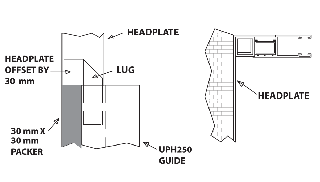

A box extension is required on built-on SeceuroShield 75 shutters when the curtain weight exceeds 172 kg on a 4" axle and 134 kg on a 5" axle. The projection is just 30 mm for face fixed shutters. If the shutter is reveal fixed the gap is made up using a 30 mm packer, as shown in the illustration. The overall width used when pricing and ordering shutters with box extensions is the overguide width (not including the box extension or 30 mm packer). If you are in any doubt please contact our technical team.
