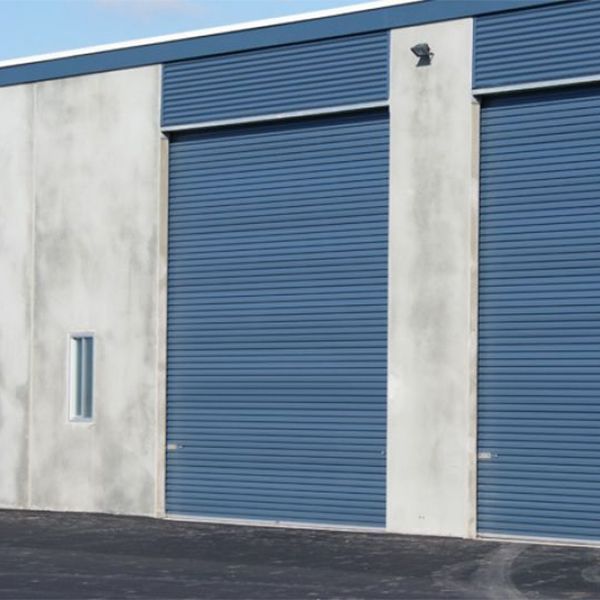

The Gliderol Series B Light Industrial is a push up and pull down, spring assisted or chain operated roller door, depending on size. Optional electric operation is available with a choice of control methods - see the Gliderol electric operation model >
Manufactured from 0.45 gauge steel with a plastisol colour coating and a superb full range of finished colours, including basic galvanised finish where colour is not required.
This is an uninsulated steel roller shutter door which as to be face fitted to a structural opening on the inside face.
The Gliderol Industrial roller door can suit any opening of up to 5 metres wide and 4.9 metres high. It is an ideal roller shutter door where daily use is less than about 20 operations a day and the insulation is not important. it isn't a suitable door for exposed areas where the wind speed can get too high.
The Gliderol Series B roller shutter door is ideal for light industrial/commercial use.
It is designed to face fit to the inside of any aperture and should not be considered for installartion externally or inbetween an opening without creating a false face to fit to.
> Spring assisted mechanism
> Chain operated for larger sizes.
> Weatherseal - Durable weatherseal helps prevent any undesirable material entering your garage.
> Bottom Rail - Constructed in Aluminium, designed to help prevent any intruder entering your garage. Provides security and strength.
> Chain Guide - Prevents the chain from slipping or releasing from the chain wheel.
Plastisol Colours
White
Black
Anthracite Grey
Vandyke Brown
Olive Green
Juniper Green
Burgundy
Navy Blue
Honesty
Goosewing Grey
Merlin Grey
Mahogany Woodgrain
Installation instructions provided with every door ordered.
The ordering width is the daylight opening between the guides PLUS 100mm and the ordering height is the height of the side guide rails NOT including the roller curtain which will vary from 460 - 530mm depending on the door height.
Side room required for installation will vary from 150 - 225mm depending on the height of the door and the mechanism supplied for the chain operation.
Industrial/Commercial use - 1 year on the lock and face plate, spring, bottom roller, weatherseal and polyglide, if fitted by an authorised Gliderol Distributor or Gliderol Technician. 3 month warranty on spring tension.
2 years - electrical
5 years - tubular motors
6 years - mechanical
10 years - paint finish
The Ordering Width is the daylight opening between the vertical guides PLUS 100mm and the Ordering Height is the height of the vertical guide rails - NOT including the roller curtain which will vary from 460 - 530mm depending on the door height chosen.
Side room required for installation will vary from 150 - 225mm depending on the height of the door and the mechanism supplied for the chain operation.
