Defender SoundGuard
Acoustic Doors
Acoustic Rated Steel Door - Sizes to 2860mm x 3800mm
Material: Steel
Enquiry Form
Call Us
Email Us
Web Price From: £1,080.00
(Excluding VAT and £1,296.00 Inc. VAT)
Web Price From:
£1,080.00
(Excluding VAT and
£1,296.00
Inc. VAT)
NEED HELP? Call us on 01933 448 850
or click here to connect via our Live Chat
- Description
- Application
- Specification
- Installation
- Warranty
- Measure
Description
The SoundGuard steel door has been designed by Metador to provide a reduction in sound transmittance into and out of any specific area in a building or room.
The SoundGuard steel door has been designed by Metador to provide a reduction in sound transmittance into and out of any specific area in a building or room.The SoundGuard can be customised in size, colour and specification to also offer security, thermal rating and fire ratings when required.
The doorset has been designed to protect from sound up to Rw42dB.
The following dB reduction ratings give a guide to the noise level reductions the Defender Soundguard can offer:
Single Door Leaf Ratings:
Soundguard 35: Rw35db – Loud speech audible but difficult to distinguish
Soundguard 38: Rw38db – Loud speech faintly audible but difficult to distinguish
Soundguard 42: Rw42db – Loud speech faintly audible but cannot be distinguished
Soundguard 47: Rw47db – Shouting audible but cannot be distinguished
Soundguard 52: Rw52db – Shouting barely audible
Double Door Leaf Acoustic Ratings:
Soundguard 35: Rw35db – Loud speech audible but difficult to distinguish
Soundguard 38: Rw38db – Loud speech faintly audible but difficult to distinguish
Soundguard 42: Rw42db – Loud speech faintly audible but cannot be distinguished
Soundguard 45: Rw45db – Shouting audible but cannot be distinguished
Soundguard 47: Rw47db – Shouting barely audible

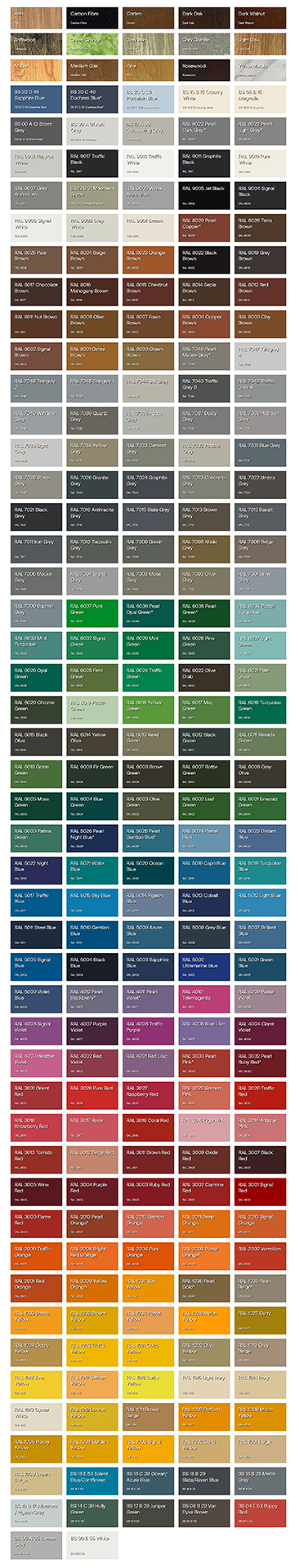

Colour Options
Available in a wide range of over 200 colour options, contact us to discuss your requirements
Available in a wide range of over 200 colour options, contact us to discuss your requirements
Application
Acoustic rated steel doorsets are used in more and more environments as our world gets noisier. When you specify a steel door for security or fire then why not also consider the acoustic performance rating if the door is anywhere near any likely source of noise in the workplace or even at home.
Education, media, theatres, cinemas, schools, offices, health care, leisure centres and production rooms all benefit from the blocking of sound to protect rooms or areas where staff or customers are likely to spend time.
In the industrial sector there are many obvious and very noisy machinery and plant rooms where the highest levels of noise need containing for protection.
Specification
Made to order Acoustic rated steel doorset with configurable specification to suit customer requirements. Available as single or double leaf doorset arrangement.
Maximum width for single door with fixing sub frame included: 1470mm
Maximum width for double door with fixing sub frame included: 2860mm
Maximum height for single or double door with fixing sub frame included: 3800mm
SoundGuard Level 1 - Rating dB 30-32
SoundGuard Level 2 - Rating dB 32-38
SoundGuard Level 3 - Rating dB 38-40
Door Leaf / Threshold
Anti-jemmy flange on the leading edge (square edged option available)
• 1.5mm galvanised steel (upgrade: 1.5mm stainless steel, 304/316)
• Weld-free construction prevents premature failure
• Mineral wool core with internal strengtheners.
Standard DDA compliant chamfered threshold profile in 2mm stainless steel construction
Options: Raised or extended door cills, inward opening profiles with drainage or 4mm ramped design.
Integrated removable thresholds available.
Thermal Performance
Standard U-value: 2.2 W/m²K (upgradeable to 1.4 W/m²K with Thermaguard Technology).
Sub Frame
90mm single rebate frame in 2.0mm galvanised steel (stainless option available)
• Custom dimensions and alternative profiles (double rebated, face-fixed, ModuleX integral cloaking and more)
• Bolted corners for strength
• PASguard doorsets have been tested as both inward and outward opening configurations
• Threaded adjustors for easy installation (16+ fixings). Optional plain fixing plates
Hardware
Stainless steel ball bearing hinges (4+ per door, with security dogbolts)
• Extensive hardware range: locks, latches, handles, panic hardware, closers, and stays. Custom hardware integration available.
Upgrade Options
Fire rating options are also available for internal or external use.

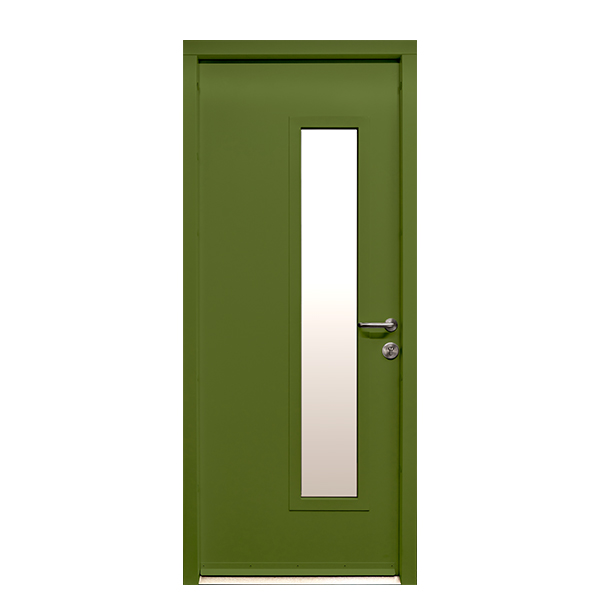

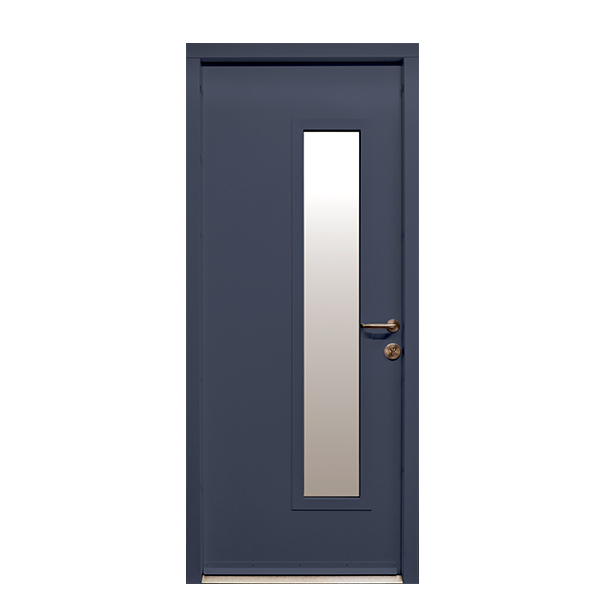

Vision panels are available with restrictions on options depending on sound level reduction required with the doorset.
Installation
Nearly all our steel doorsets are delivered completely factory assembled with all hardware and sub frames fitted ready for the easiest on site installation. The doorsets will be heavy and we can provide the weight before delivery if required but they will often need mechanical offloading or 2 or more people to handle on delivery and installation.
Warranty
The Metador guarantee includes:
The frame and door sets are given 15 years guarantee subject to correct door installation and maintenance.
All our Ironmongery has a 1-year guarantee subject to correct usage and maintenance The Marine Grade PPC finish is guaranteed for a period of 10 years subject to the cleaning and maintenance programme.
At Metador the Standard Powdercoat finish is guaranteed for a period of 1 year subject to the cleaning and maintenance programme.
Guarantee Coverage:
Metador will repair or at our option replace any goods sold by Samson Doors to you which are, shown to our reasonable satisfaction to have become defective within the warranty period stated above from the date of purchase.
Where we have supplied a product with an internal defective component, we will only replace the defective component within the product.
‘Defective’ goods are those which under correct usage, do not function properly because of a fault in materials, workmanship or design.
We will replace any goods that are found to be defective on delivery, when reported within 3 working days of receiving the delivery. Photo graphic evidence must be provided showing the defective goods on the pallet that they were delivered on.
Guarantee Exclusions:
With Metador, there are some situations in which the guarantee does not cover, these include damage caused by:
Abuse, unsuitable or lack of maintenance and any other neglect that might occur.
Harmful cleaning solvents that may be used to clean the door
Incorrect installation of the door
Damage to the paint finish of the door which may include, scratches, washing and paint protection.
Use of parts that are installed that are not advised by Metador
External impacts including weather
Repairs or fitting that have been supported by other persons
Fair wear and tear
It should be noted that for any guarantees or warranties to be valid, the cleaning and maintenance regime must be documented and recorded, confirming the frequency of maintenance along with all methods and products used. This must be submitted for any claim to be considered.
Claims Procedure:
The customer must contact Samson Doors or Metador in writing within 3 working days of the discovery of the defect, specifying the nature of the claim and defect.
On request, the customer must return the defective product to Metador Ltd at their cost for inspection.
Operation and Maintenance Manual can be downloadad here
Measure
A steel doorset is always ordered by the OVERALL dimensions including the door leaf and outer sub fixing frame with no tolerances allowed for. Most people would generally allow 5mm tolerance all the way around the door, but it all depends on how square or true your aperture is on site. This is up to your judgement based on the aperture quality.
This would mean if your structural opening size is measured as 1000mm width and 2100mm height the door and frame ought to be 990mm wide and 2090mm high with the frame and any threshold included.
Always measure the top, middle and bottom of your aperture width and the left and right hand side for the height and if possible do a measure to make sure the opening is square as well.
Always use millimetres for measuring as this is how we relay back the ordering dimensions to you for checking and approving a drawing for your order.
We will always send a drawing for approval before manufacturing commences.
