Robust Outa-Dor FD60
Fire Rated Steel Doorsets
60 min Fire Rated External Doorset
Purpose made up to 1340mm x 2800mm
Material: Steel
Enquiry Form
Call Us
Email Us
Web Price From: £920.00
(Excluding VAT and £1,104.00 Inc. VAT)
Web Price From:
£920.00
(Excluding VAT and
£1,104.00
Inc. VAT)
NEED HELP? Call us on 01933 448 850
or click here to connect via our Live Chat
- Description
- Application
- Specification
- Installation
- Warranty
- Measure
Description

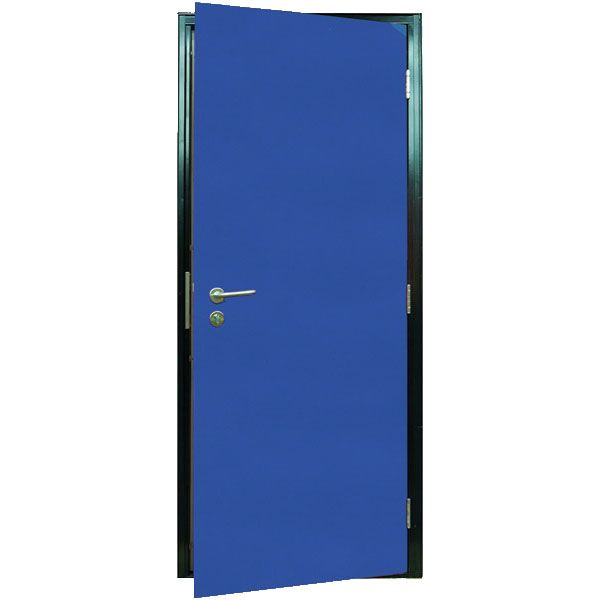

The Outa-Dor FD60 is an external specification, made to measure, fire resistant rated steel door for use on any building requiring a fire rated door at 60 mins. The door can be specified as an emergency exit door if required with additional specification upgrades to higher levels of insulation and acoustic performance too. It is double skinned steel with an adjustable fixing sub frame fitted as standard for the easiest installation.
Powdercoat finished to almost any RAL colour with a wide variety of standard colour options offered for both sides of the door and the sub frame.
Outa-Dor is setting the standard for external steel doors, with an industry leading specification, 10 year anti-corrosion guarantee, and 5 year mechanical warranty.
Being for use on the external fabric of the building the door has astragal sealing on the leaf for additional weather protection and security. Security enhancements with specific locking or additional locking can be specified when ordering.
A strong, versatile and durable general purpose steel doorsets, OUTA-DOR is available in a wide range of purpose made sizes from 690mm – 1340mm wide single doors and 1000mm – 2600mm wide double doors, and from 1500mm – 2800mm high.

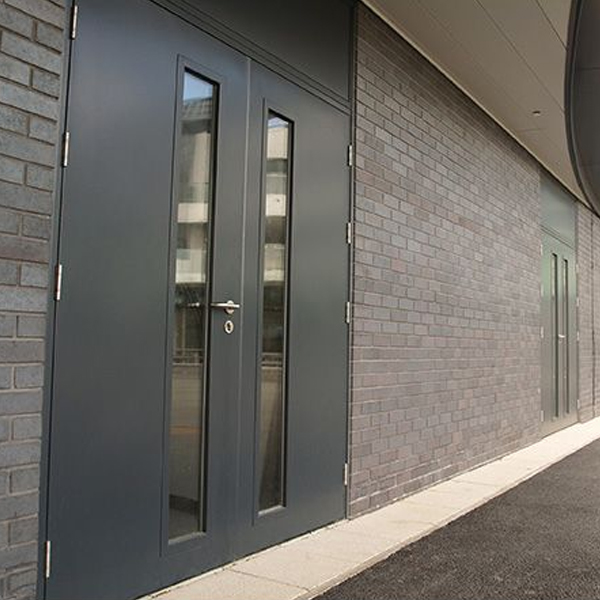

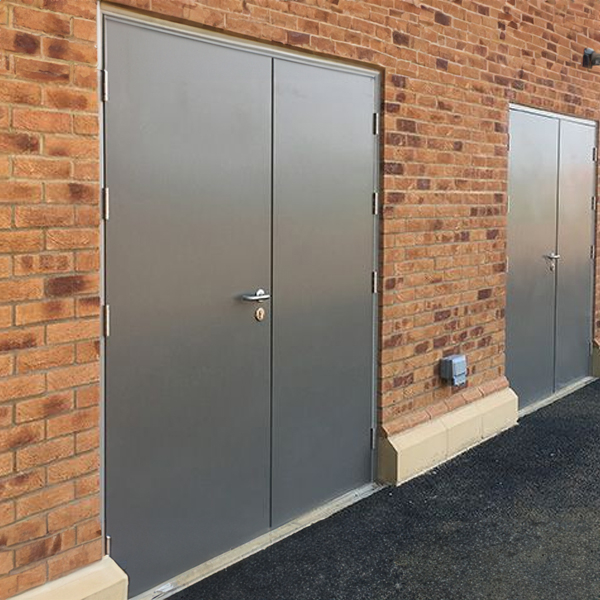

The versatility of our Outa-Dor steel doorsets makes them suitable for use in a wide range of external applications from schools & offices to car parks & supermarkets. Outa-Dor doorsets are supplied fully assembled with hardware fitted as standard which, when combined with our adjustable fixing feet and variable sub-frame, drastically reduces the installation time on site, which in turn adds value to a project. The single fix design of our doors can offer greater cost savings when priced against overall installation times for timber doors, and the inherent durability of steel means that in areas of high traffic or potential abuse the ‘whole life’ cost of a steel doorsets significantly outweighs that of a timber doorsets.
Application
Certified steel doorset - EN 16034 for external fire rated doorsets.
Doors fully compliant with door standard EN 14351-1 and CE marked.
Any building in the UK requiring an external fire rated door.
To be clear, this isn’t a fire exit emergency door. It is a fire rated doorset.
Specification
- Double glazed vision panel unit options, maintaining thermal performance.
- 55mm single leaf fire resisting doorset with a choice of infill offering up to 1.5w/m2k thermal value (60 mins only model)
- Hooply multibolt locking with Secured by Design recommended TS007 3 star cylinder & escutcheon sets, providing secure locking.
- Door leaf constructed from Magnelis© steel for industry leading corrosion resistance, offering up to 10 years anti-corrosion warranty.
- Aluminium threshold strip/weather bar with rain deflector for inward opening doorsets.
- 4no. Stainless steel dog bolt hinges per leaf.
- Hardware already fitted to the door, saving time and effort on site.
- All doors fully CE Marked to BS EN 14351-1 for external door characteristics, also BS EN 1634-1, with full Declaration of Performance as required by current legislation
- Full fitting kit supplied with all orders, including 11mm allen key to make frame adjustment easy and a selection of drill bits for fitting into concrete or steel.
- A pot of touch up paint and a tube of clear mastic for use during installation to prevent water ingress under threshold.
Installation
Every door is delivered factory assembled with hinges, sub frame, locking and threshold all installed and ready for the easiest and fastest on site installation. Steel doorsets can be very heavy and will require 2 or more people to handle and position
Included as standard:
Full fitting kit with 11mm allen key for frame adjustments
Pot of touch up paint
Tube of clear mastic for use under the threshold
Selection of drill pieces for fitting into concrete or steel
Self cutting frame fixings and spare hinge screws
All locks and hardware are already fitted in the factory with only the protruding parts supplied loose for on site fitting.
Warranty
Doors manufactured from a base material of Magnelis carry a 10 year anti corrosion warranty in locations classed as C1-C3. Locations classed as C4 or C5 would carry a 5 years and 3 years warranty respectively.
Anti corrosion warranty applies to door carcass only unless Samson Doors are informed prior to manufacture and additional protection offered for components not available in Magnelis. i.e. vision panels, louvre panels.
Doors manufactured in Aluzinc would carry a 12 month anti corrosion warranty unless enhanced PPC finish is applied.
All doors carry a 12 month warranty against manufacturing defects.
All warranties subject to site maintenance being performed at regular intervals as outlined in the project O&M manual.
Measure
A steel doorset is always ordered by the OVERALL dimensions including the door leaf and outer sub fixing frame with no tolerances allowed for. Most people would generally allow 5mm tolerance all the way around the door, but it all depends on how square or true your aperture is on site.
This means if your structural opening size is measured as 1000mm width and 2100mm height the door and frame ought to be 990mm wide and 2090mm high with the frame and any threshold included.
Always measure the top, middle and bottom of your aperture width and the left and right hand side for the height and if possible do a measure to make sure the opening is square as well..
Always use millimetres for measuring as this is how we relay back the ordering dimensions to you for checking and approving a drawing for your order.
The Robust Inna-Dor does have an adjustable fitting frame to take up to 30mm of tolerance into account which helps when the opening is not square.
