Sws seceuroguard 1000 for larger windows steel security grilles retractable

The SeceuroGuard 1000 Large Window Security Grille is a high quality collapsible steel security grille specifically configured for large window openings in both domestic and commercial properties. Available in made to measure sizes up to 3600mm wide and 2500mm high, this version of the SeceuroGuard 1000 provides effective security for substantial window openings whilst maintaining all the quality and functionality of the full SeceuroGuard range.

• Strong security barrier and deterrent for large windows
• Galvanised for corrosion resistance and powder coated
• Fully retractable system for easy access and cleaning
• Excellent through-vision and ventilation when locked
• Multi-point locking (2 or 4 point) from a single key
• Smooth running carrier system ensures quick and easy operation
• Configured for large window openings up to 3600mm x 2500mm
• Available in single or double sash arrangements
• Between-aperture or face-fix installation options
• Custom built for substantial window openings
• All the quality of SeceuroGuard 1000 in a large window solution

The SeceuroGuard 1000 is suitable for physical security of large window openings up to 3600mm wide and 2500mm high, with this configuration available in single or double sash arrangements to suit customer requirements. This application-specific solution is ideal for both domestic and commercial premises where large windows and substantial openings need protection whilst maintaining excellent visibility and natural light.

FOR DOMESTIC PREMISES

Elegant good looks with a heart of steel - the SeceuroGuard 1000 Retractable Security Gate System combines a classic appearance with strength, making it an ideal security choice for large windows throughout the home. The high quality components used in manufacturing make this one of the best security grilles for large window applications in the UK market. It is strong and yet subtle in appearance with elegant profile sections.

Designed to keep intruders out while letting maximum light in, they are perfect for:

• Large living room and lounge windows

• Bay windows and bow windows

• Picture windows and feature windows

• Expansive bedroom windows

• Large kitchen windows and breakfast areas

• Bi-fold window systems and folding window walls

• Ground floor large aperture windows

• Home cinema room windows

• Conservatory and orangery windows

• Any large vulnerable openings requiring substantial security

Gates can be left locked with windows open to provide ventilation without a security issue. Perfect in the summer months.

When not in use these retractable gates are surprisingly unobtrusive. They can disappear neatly behind curtains, and a pelmet can be used to conceal the top track.

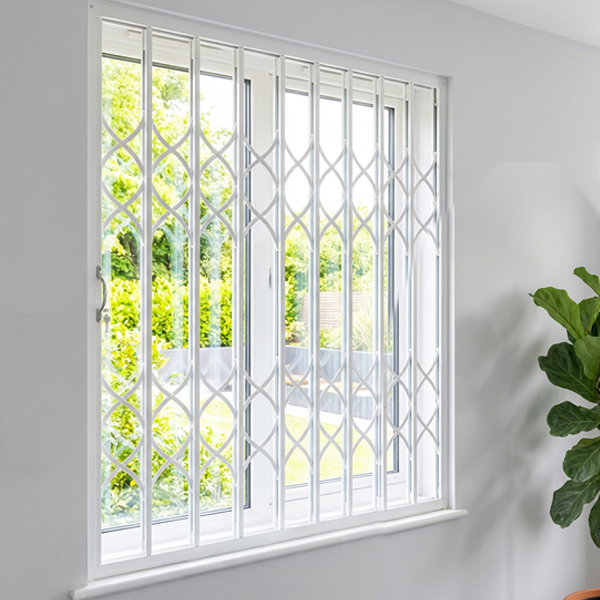

The collapsible security gates are configured for large window openings up to 3600mm wide and 2500mm high, accommodating the largest residential window installations. Customers can choose between single sash (stacking to one side) or double sash (stacking to both sides) depending on their window configuration and personal preference.

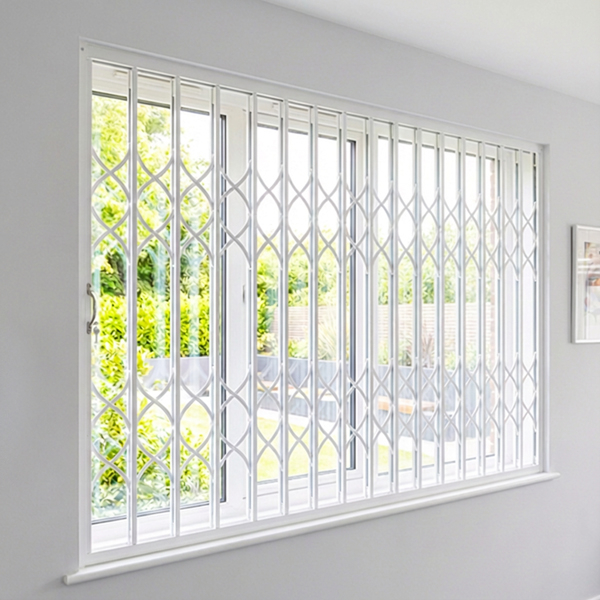

Single sash arrangements are ideal for large windows where one side is more accessible or where architectural features on one side make double stacking impractical. Double sash configurations provide balanced aesthetics and are particularly suitable for very wide windows where dividing the grille in the centre creates a more proportional appearance and reduces the stack-back depth on each side.

Installation flexibility is provided with options for between-aperture fitting (for recessed installations) or face-fix mounting (where insufficient reveal depth exists or where face mounting is architecturally preferred).

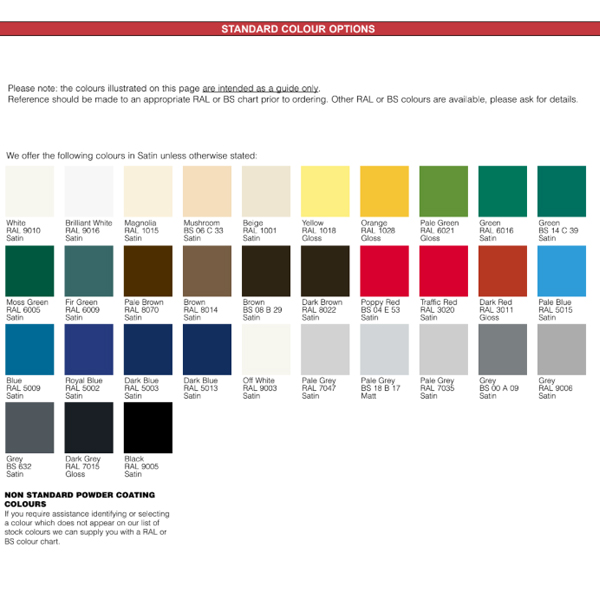

Essentially maintenance free, each SeceuroGuard 1000 is available in a range of powder coated colour options to complement your décor, and can also be supplied with optional decorative 'S' Profile lattices instead of the standard X lattice design.

SeceuroGuard 1000 Retractable Security Grille - Technical Specification

Smaller grilles are simple to handle and install generally and it is only when the sizes and weights exceed a single person handling that you require 2 or more people to assist and manouvre the components into place

• Face-Fixed with Bottom Track - Complete framework mounted to wall surface with floor-mounted bottom track
• Face-Fixed to Aperture - Framework fitted around opening perimeter with additional support profiles
• Reveal-Fixed Within Aperture - Compact installation within window or door recess

• Spirit level and measuring tape
• Hammer drill with appropriate masonry bits (for brick/block) or metal drill bits (for steel frames)
• Socket set and spanners
• Screwdriver set (Phillips and flathead)
• Safety glasses and dust mask
• Stepladder or access platform

• Brick/Block Walls: Minimum 100mm embedment depth with resin anchors or expansion bolts
• Steel Frames: Through-bolting with appropriate grade fixings
• Timber Frames: Coach screws to structural timber (not suitable for all applications)
• Weak Substrates: May require reinforcement—consult a structural engineer

Installation Process Overview

1. Site Preparation

• Verify opening dimensions match order specifications
• Check substrate condition and load-bearing capacity
• Ensure adequate clearance for sash operation and bunch width (approximately 15% of overall width)
• Clear the work area and protect flooring/surfaces

• Unpack all components and verify against delivery note
• Pre-assemble track sections if supplied in multiple pieces (widths over 4000mm)
• Check all fixings, brackets, and components are present

• Position top track using temporary supports
• Use spirit level to ensure perfect horizontal alignment—critical for smooth operation
• Mark all fixing positions through pre-drilled holes in framework
• For face-fixed installations, ensure fixing frame is plumb and square

• Drill pilot holes to correct depth for substrate type
• Install fixings progressively, checking alignment after each fixing
• Torque fixings to manufacturer's specifications—avoid over-tightening
• Ensure minimum fixing centres are maintained (typically 400-600mm)

• Attach sash carrier wheels to top track
• Guide lattice sash into track system
• For larger installations, sections may require on-site joining with provided fixings

• Install lock posts and slam posts according to configuration
• Adjust multi-point locking to ensure smooth engagement
• Test lock operation through full cycle

• Check sash slides smoothly across full width
• Adjust carrier wheels if binding or resistance occurs
• Verify locking engagement is secure
• Test bottom track (if folding option specified)



• For SeceuroGuard 1001 SR1 Rated Installations:
• Must comply with LPS 1175 installation requirements
• All fixings must meet specified security standards
• Installation certificate may be required for insurance purposes
• Substrate must provide adequate resistance—certification is void if installation is compromised

• Out-of-Square Openings: May require packing or shimming—check diagonals before fixing
• Uneven Floors: Particularly affects bottom track alignment—may require floor preparation
• Restricted Access: Consider installation sequence for narrow doorways or difficult access
• Overlapping Windows/Doors: Plan sash stacking location to avoid operational conflicts

Post-Installation

• Remove all protective coverings and packaging
• Clean lattice and tracks with mild detergent

• Call: 01933 448 850

 SeceuroGuard retractable security grilles are backed by a comprehensive parts-only warranty from Samson Doors and SWS UK covering general product components including fixing frame, sashes, tracks, lattice, powder-coated finish, and locking mechanisms for a period of 2 years from the date of purchase.

• Defects in materials or workmanship affecting the operation of the retractable security grille
• Failure of the fixing frame, sashes, tracks, or lattice due to manufacturing fault
• Defective powder-coated finish (within the first 2 years from purchase date)
• Faulty locking mechanisms or key operation

• Incorrect installation or failure to follow SWS UK fitting instructions
• Poor or improper maintenance or lack of regular servicing
• Incorrect use or unauthorized modifications to the grille
• Normal wear and tear, accidental damage, or malicious damage
• Labour costs, call-out fees, transport, or other consequential costs
• Cosmetic marks or blemishes not visible from 3 metres in natural light
• Exposure to corrosive environments including saltwater or salty air for products installed within 500 metres of the coast
• Rust or corrosion caused by failure to maintain the product according to SWS UK guidelines
• Damage caused by environmental factors including extreme weather, flooding, fire, or impact
• Misuse or negligence by the end user or third parties
• Products not purchased through authorized SWS UK distributors

1. The SeceuroGuard grille must be installed by a competent installer/person  in accordance with SWS UK fitting instructions
2. The product must be used for its intended purpose only (domestic or commercial security applications as specified)
3. Regular maintenance must be carried out as per the operating and maintenance instructions provided
4. Any warranty claim must be accompanied by proof of purchase showing the date of purchase
5. Products must be purchased through authorized SWS UK distributors

• This warranty is non-transferable and applies only to the original purchaser
• SWS UK reserves the right to repair or replace defective parts at its discretion
• Repaired or replaced parts carry a warranty for the remainder of the original warranty period or 12 months, whichever is longer
• This warranty does not affect your statutory rights under UK consumer protection legislation
• SWS UK will not be liable for any consequential loss, damage, or expenses arising from product failure
