Sws seceuroguard 1000 for medium windows steel security grilles retractable

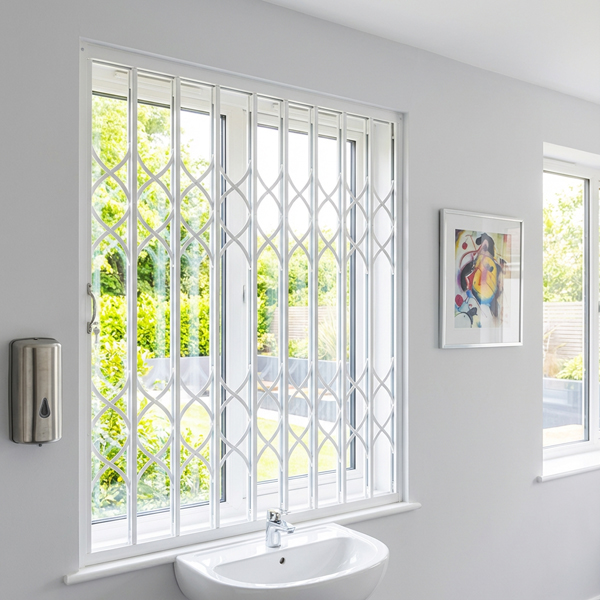

SeceuroGuard 1000 Medium Window Security Grille

The SeceuroGuard 1000 Medium Window Security Grille is a premium collapsible steel security solution specifically configured for medium sized window openings in both domestic and commercial properties. Available in made to measure sizes up to 2400mm wide and 2100mm high, this version provides highly effective security for standard and larger windows while maintaining all the proven quality and functionality of the full SeceuroGuard range.

This system is perfect for securing lounge windows, bedroom windows, office windows, and any medium sized access points that require discreet yet robust protection while still retaining visibility and airflow.

You can customise the system to suit your exact requirements with a choice of either a single or double sash configuration. Single sash arrangements stack neatly to one side, while double sash configurations divide in the centre and stack to both sides of the window, making them ideal for wider openings. Furthermore, the gate lattice is available in either the traditional 'X' lattice design or the softer 'S' lattice design, both offered at the exact same price.

To perfectly complement your property, the SeceuroGuard grille is available in a wide range of standard colours to coordinate with almost any scheme. Special custom colours can also be ordered upon application. You can view the full RAL Colour Chart PDF here.

Essentially maintenance free, this exceptional grille perfectly combines a classic appearance with top tier security and everyday convenience for medium window applications.

Key Features

• Strong security barrier and visual deterrent for medium sized windows
• Galvanised for superior corrosion resistance and powder coated for a durable finish
• Fully retractable system allowing for hassle free window access and easy cleaning
• Excellent through vision and ventilation, even when fully locked
• Convenient multi point locking mechanism (2 or 4 point) operated from a single key
• Smooth running carrier system ensuring quick and effortless daily operation
• Configured for medium window openings up to 2400mm wide by 2100mm high
• Available in single or double sash arrangements to suit your specific window style
• Custom built for almost any medium sized window opening
• Delivers all the proven quality of the standard SeceuroGuard 1000 in a dedicated medium window solution

Exceptionally strong yet unobtrusive and stylish, the SeceuroGuard 1000 Medium Window Security Grille transforms the way you protect your property, offering complete peace of mind.

The SeceuroGuard 1000 Medium Window Security Grille is incredibly versatile, making it the perfect physical security solution for a wide variety of domestic and commercial environments. Because the system retracts neatly to the side when not in use, it is particularly suited to windows where you want maximum natural light during the day but robust protection at night.

Domestic Properties

• Lounge and Dining Rooms: Protect vulnerable ground floor living spaces without permanently blocking your view. The retracted lattice sash can easily be hidden behind everyday curtains or vertical blinds.
• Home Offices: Secure valuable computer equipment and sensitive documents while maintaining a comfortable, well ventilated working environment.
• Bedrooms: Sleep soundly with your windows wide open during hot summer nights, knowing the physical steel barrier is safely locked into place.
• Utility Rooms and Kitchens: Safeguard side and rear facing windows that are frequently targeted by intruders due to being hidden from the main road.

Commercial and Retail Premises

• Office Buildings: Provide an excellent visual deterrent for ground floor office windows to protect expensive IT equipment and sensitive company data.
• Retail Shops: Secure side windows and medium sized shop fronts while still allowing pedestrians excellent through vision of your illuminated displays after hours.
• Schools and Health Centres: Create a safe and secure environment with a reliable system that is exceptionally easy for staff to operate daily using a single key.
• Stockrooms and Storage: Add a high strength secondary layer of physical defence to vulnerable windows in stockrooms, equipment cupboards, and warehouses.

SeceuroGuard 1000 Medium Window Security Grille - Technical Specification

Product Overview

The SeceuroGuard 1000 Medium Window Security Grille is a made to measure retractable security system designed for internal medium to high security applications in domestic, commercial, and retail environments. Manufactured from pre galvanised steel with a smooth and durable powder coated finish, it provides exceptional window protection.

Size Capabilities

• Maximum Width: 2400mm
• Maximum Height: 2100mm
• Minimum Width: No minimum restriction
• Minimum Height: 500mm

Construction & Materials

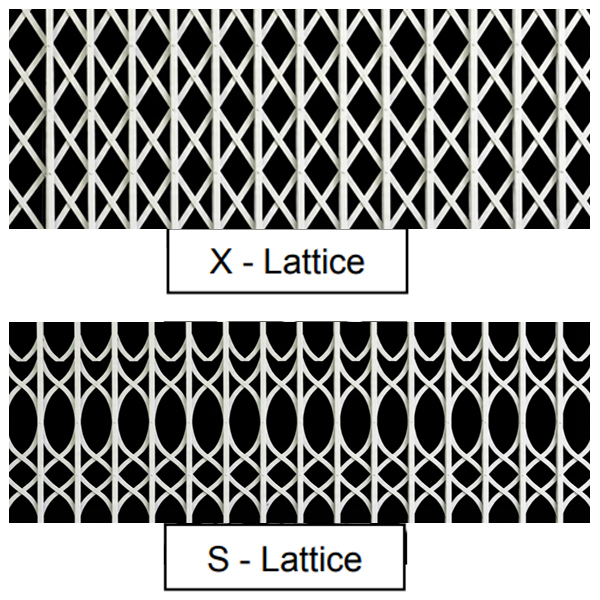

• Lattice Design: High grade pre galvanised steel in a classic 'X' lattice (standard) or a softer 'S' lattice (optional, at the exact same price)
• Lattice Weight: 19kg/m² nominal
• Assembly System: Steel riveted lattice assembly for exceptional strength and durability
• Bearings: Top hung on nylon coated steel bearings for a smooth and quiet operation
• Frame: All galvanised steel construction
• Finish: Powder coated in a comprehensive choice of 122 standard colours (custom RAL colours available on request)

Locking & Security

• Locking System: Multi point locking (2 point or 4 point) operated securely from a single key
• Lock Position: Supplied with overlapped locking profiles for enhanced security against forced entry
• Keying Options: Can be keyed alike across multiple grilles for everyday convenience

Installation Options

• Mounting: Face fixed or reveal fixed to suit your specific window opening requirements
• Configuration: Single sash (stacking to one side) or bi parting double sash arrangements
• Track Options: Standard fixed bottom track or an optional fold up removable bottom track for clear window access and cleaning
• Hinge Aside: Optional hinge aside configuration for maximum window accessibility

Operation & Features

• Operation: Manual slide operation with a smooth running carrier system
• Retraction: Fully retractable system that stacks compactly to the sides when open
• Through Vision: Excellent visibility and airflow even when fully locked
• Handling: Single sashes up to 2000mm wide are manufactured in one piece; larger single sash sections (up to the 2400mm maximum) are assembled on site for safe handling

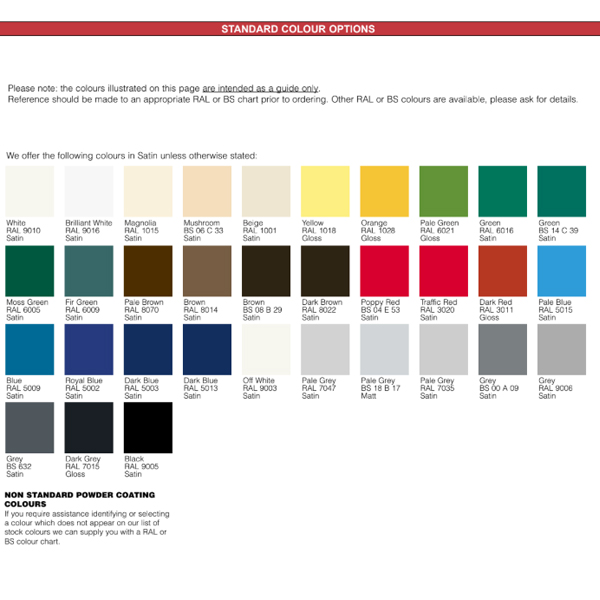

Standard Colours

Available in an extensive range of 122 standard powder coated colours to coordinate perfectly with almost any colour scheme, including Brilliant White (RAL 9016), Black (RAL 9005), Anthracite Grey (RAL 7016), and Brown (RAL 8014). Special custom colours can be ordered upon application.

Additional Options

• Fixed sash panels (where window opening access is not required)
• Locking posts at both ends for maximum operational flexibility
• Custom colour matching service available

Quality & Compliance

• Manufacturing: UK manufactured by SWS UK to ISO 9001:2015 standards
• Corrosion Protection: Pre galvanised steel construction with a premium powder coated finish
• Warranty: 2 year parts warranty (see Warranty tab for full details)

Important Notes

• Sashes manufactured in single pieces up to 2000mm wide ensure maximum structural integrity
• Larger single sashes (over 2000mm) are supplied in sections with bolts and fixing plates for easy on site assembly
• Where double split sashes meet in the centre, the pickets are joined using the supplied bolts and fixing plates

Related Products

For enhanced security requiring insurance approval, consider upgrading to the SeceuroGuard 1001, which is independently tested and certified to Loss Prevention Standard LPS 1175 Security Rating 1.

Installation Guidance

Preparation

Installing the SeceuroGuard 1000 Medium Window Security Grille requires careful preparation to ensure the smooth running carrier system operates flawlessly. Before starting, verify your opening dimensions match your order specifications and check that the wall substrate offers a strong load bearing capacity. As the system weighs 19kg per square metre, a highly secure fixing for the top track is absolutely essential. Gather your tools, including a high quality spirit level, an electric drill, and heavy duty fixings appropriate for your masonry.

Framework and Levelling

Unpack the framework components and position the top track within the window reveal or against the face of the wall, depending on your chosen fitting style. Use your spirit level to ensure perfect horizontal alignment across the entire width. Any gradient will compromise the smooth slide operation, which is especially important for wider double sash configurations that must meet perfectly in the centre. Mark all fixing positions through the pre drilled holes in the frame.

Fixing and Assembly

Drill your pilot holes and install the top track fixings progressively, checking your level after tightening each one. Use packers behind the frame if your wall or recess is slightly uneven. Once the framework is securely fixed, carefully guide the lattice sash into the track system. For double sash setups, install both sides and ensure they glide smoothly toward the centre meeting point.

Hardware and Finishing

Install the lock posts and slam posts according to your chosen single or double sash configuration. Adjust the multi point locking mechanism to ensure the overlapped locking profiles engage smoothly, then test the key operation through a full cycle. Finally, wipe down the lattice and tracks to remove any installation dust to guarantee a quiet and effortless everyday operation.

SeceuroGuard retractable security grilles are backed by a comprehensive parts-only warranty from Samson Doors and SWS UK covering general product components including fixing frame, sashes, tracks, lattice, powder-coated finish, and locking mechanisms for a period of 2 years from the date of purchase.

What the Warranty Covers

SWS UK will repair or replace any part found to have a manufacturing defect during the warranty period. This includes:

• Defects in materials or workmanship affecting the operation of the retractable security grille
• Failure of the fixing frame, sashes, tracks, or lattice due to manufacturing fault
• Defective powder-coated finish (within the first 2 years from purchase date)

Faulty locking mechanisms or key operation

What the Warranty Does Not Cover

This warranty does not cover damage or faults caused by:

• Incorrect installation or failure to follow SWS UK fitting instructions
• Poor or improper maintenance or lack of regular servicing
• Incorrect use or unauthorized modifications to the grille
• Normal wear and tear, accidental damage, or malicious damage
• Labour costs, call-out fees, transport, or other consequential costs
• Cosmetic marks or blemishes not visible from 3 metres in natural light
• Exposure to corrosive environments including saltwater or salty air for products installed within 500 metres of the coast
• Rust or corrosion caused by failure to maintain the product according to SWS UK guidelines
• Damage caused by environmental factors including extreme weather, flooding, fire, or impact
• Misuse or negligence by the end user or third parties
• Products not purchased through authorised SWS UK distributors

1. The SeceuroGuard grille must be installed by a competent installer/person  in accordance with SWS UK fitting instructions
2. The product must be used for its intended purpose only (domestic or commercial security applications as specified)
3. Regular maintenance must be carried out as per the operating and maintenance instructions provided
4. Any warranty claim must be accompanied by proof of purchase showing the date of purchase
5. Products must be purchased through authorized SWS UK distributors

• This warranty is non-transferable and applies only to the original purchaser

• SWS UK reserves the right to repair or replace defective parts at its discretion
• Repaired or replaced parts carry a warranty for the remainder of the original warranty period or 12 months, whichever is longer
• This warranty does not affect your statutory rights under UK consumer protection legislation
• SWS UK will not be liable for any consequential loss, damage, or expenses arising from product failure.

Measuring Guidance

Accurately measuring your window is the most critical step when ordering your SeceuroGuard 1000 Medium Window Security Grille. We always recommend using a sturdy metal tape measure rather than a flexible cloth one to ensure precise dimensions.

Reveal Fit (Inside the Window Recess)

• Width: Measure the width of your window recess at the top, the middle, and the bottom. Take the smallest of these three measurements and deduct 10mm to allow for a comfortable fitting tolerance.
• Height: Measure the height of the recess at the left side, the centre, and the right side. Take the smallest of these three measurements and deduct 10mm for your fitting tolerance.

Face Fit (Outside the Window Recess)

• Width: Measure the width of the structural opening and add a minimum of 50mm to each side (100mm total) to allow the framework to fix securely to the solid wall face. If you want the grille to clear the window entirely when open, you will need to add the 15% bunch size to your width.
• Height: Measure the height of the opening and add a minimum of 50mm to the top and 50mm to the bottom to allow for the top and bottom track fixings plus any extra dimensions for a reinforcement section.

Important Ordering Notes

• Overall Dimensions: Always order by the Overall Width and Overall Height. This measurement must include the outer framework and the tracks, not just the sliding lattice.
• Sash Configuration: Decide whether a single sash (stacking to one side) or a double sash (splitting in the middle and stacking evenly to both sides) works best for your window layout and access needs.
• Locking System Heights: Grilles ordered over 1000mm in height accommodate the highly secure four point locking system. If your window requires a grille under 1000mm in height, it will be manufactured with a standard two point locking system.
• Bunch Size Clearances: When the grille is fully retracted, the stacked lattice will take up roughly 15% of the total grille width. For double sash grilles, this 15% bunch is divided equally between the two sides.
• Checking for Obstructions: Before finalising your measurements, thoroughly check your window sill and surrounding wall for any protruding window handles, skirting boards, or trims that might interfere with the sliding operation.
